METZ CONNECT

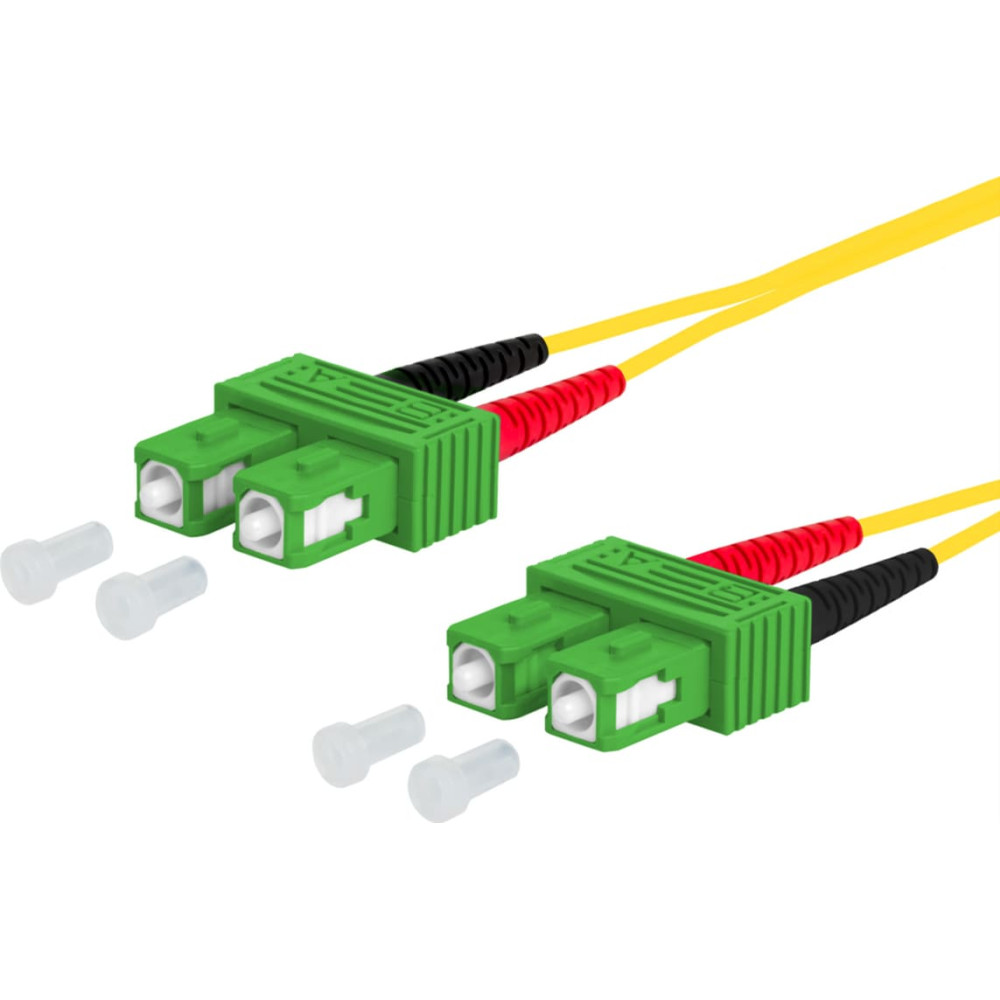

Metz Connect OpDAT patch cord, SC-D APC/SC-D APC OS2, 3 m

Produkta kods: 151P1EAEA30E
Svītrkods: 4251122174773

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
apc-version: yes
aramid strain relief: yes
bend insensitivity: yes
cable lsoh: yes
cable type: Duplex Cable
colour: yellow
connection ports: SC APC / SC APC
crossed: yes
depth of packaging (single piece): 200 mm
external cable diameter: 2.0 x 4.2 mm
fibre section: Single mode 9/125µm OS2
flame retardant according to iec 60332-1-2: yes
garums: 3 m
gross weight: 0.044
halogen free according to iec 60754-2: yes
height of packaging (single piece): 20 mm
low smoke according to iec 61034-2: yes
manufacturer: METZ CONNECT
max. insertion loss: 0.3 dB
min. return loss: 65 dB
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.044 kg
product group: Fibre optic cable
product type: Fibre Optic Jumper Cables OS2
side 1 connector type: SC APC
side 2 connector type: SC APC
storage temperature max.: 60 °C
storage temperature min.: -10 °C
weight: 40 g
width of packaging (single piece): 200 mm
