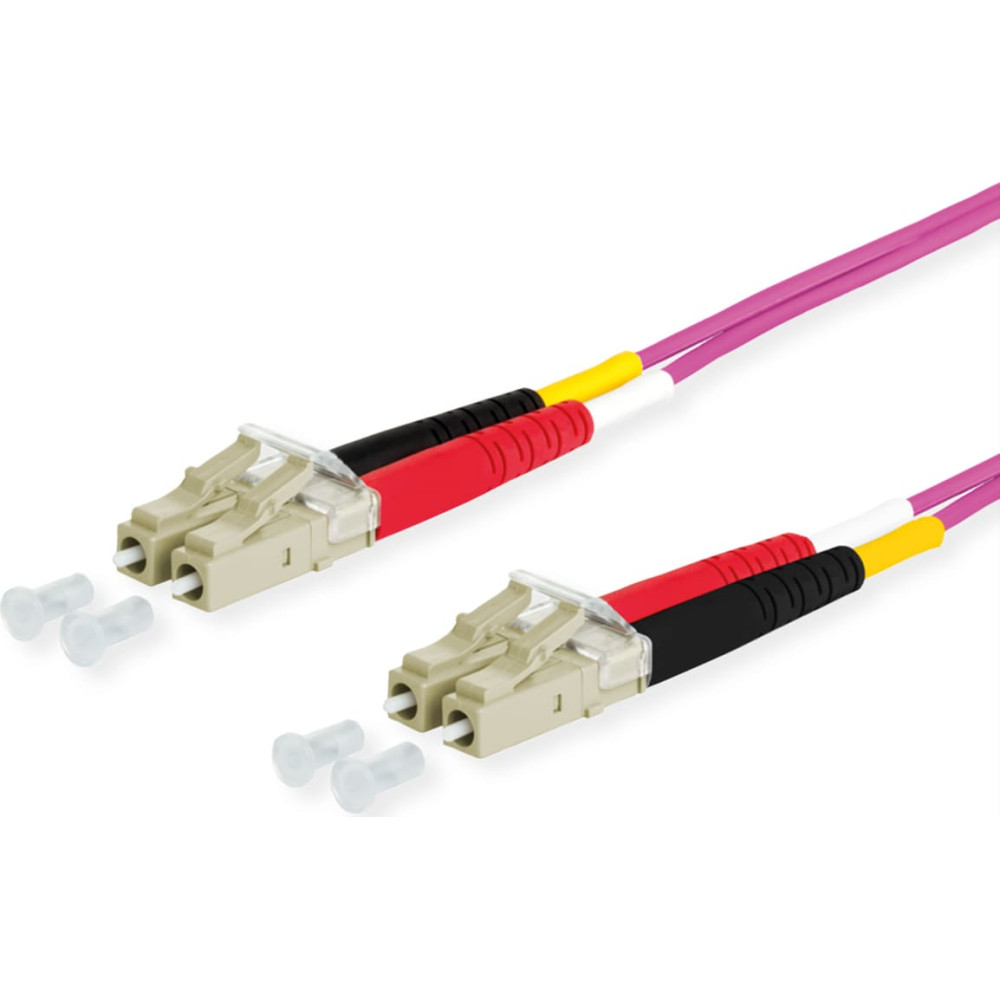

Metz Connect OpDAT Patchkabel LC-D/LC-D OM4, 1 m

METZ CONNECT

Metz Connect OpDAT Patchkabel LC-D/LC-D OM4, 1 m

Produkta kods: 151S1EOJO10E
Svītrkods: 4250184169024

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
aramid strain relief: ja
bend insensitivity: ja
bend radius: 15 mm
cable lsoh: ja
cable type: Duplexkabel
colour: violet
colour (cable): violett
connection ports: LC / LC
crossed: ja
depth: 20 cm
depth of packaging (single piece): 80 mm
external cable: nein
external cable diameter: 2,0 x 4,2 mm
fibre section: Multimode 50/125µm OM4
flame retardant according to iec 60332-1-2: ja
garums: 1 m
gross weight: 0.026
halogen free according to iec 60754-2: ja
height: 4.5 cm
height of packaging (single piece): 10 mm
low smoke according to iec 61034-2: ja
manufacturer: METZ CONNECT
max. insertion loss: 0.4 dB
min. return loss: 35 dB
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.026 kg
product group: Fiber Optic Kabel
product type: LWL-Patchkabel OM4
quantity of fibre: 2
side 1 connector type: LC
side 2 connector type: LC
storage temperature max.: 60 °C
storage temperature min.: -10 °C
weight: 11 g
width: 20 cm
width of packaging (single piece): 110 mm
Preces apraksts

LWL Patchkabel / OpDAT Patchkabel LC-D/LC-D OM4

  • Multimode Patchkabel I-V(ZN)H 50/125 OM4
  • Laser-optimierte biegeunempfindliche Multimodefaser OM4, G50/125 µm gemäß IEC 60793-2-10 Typ A1a.3
  • Außendurchmesser 2,0 x 4,2 mm
  • Mantelmaterial halogenfrei mit niedriger Rauchentwicklung LSHF-FR, flammwidrig
  • Duplexkabel als Zipcord (Figur 8) mit zwei Volladern und Aramid als Zugentlastung
