Specifikācija
country of origin: CN
Preces apraksts

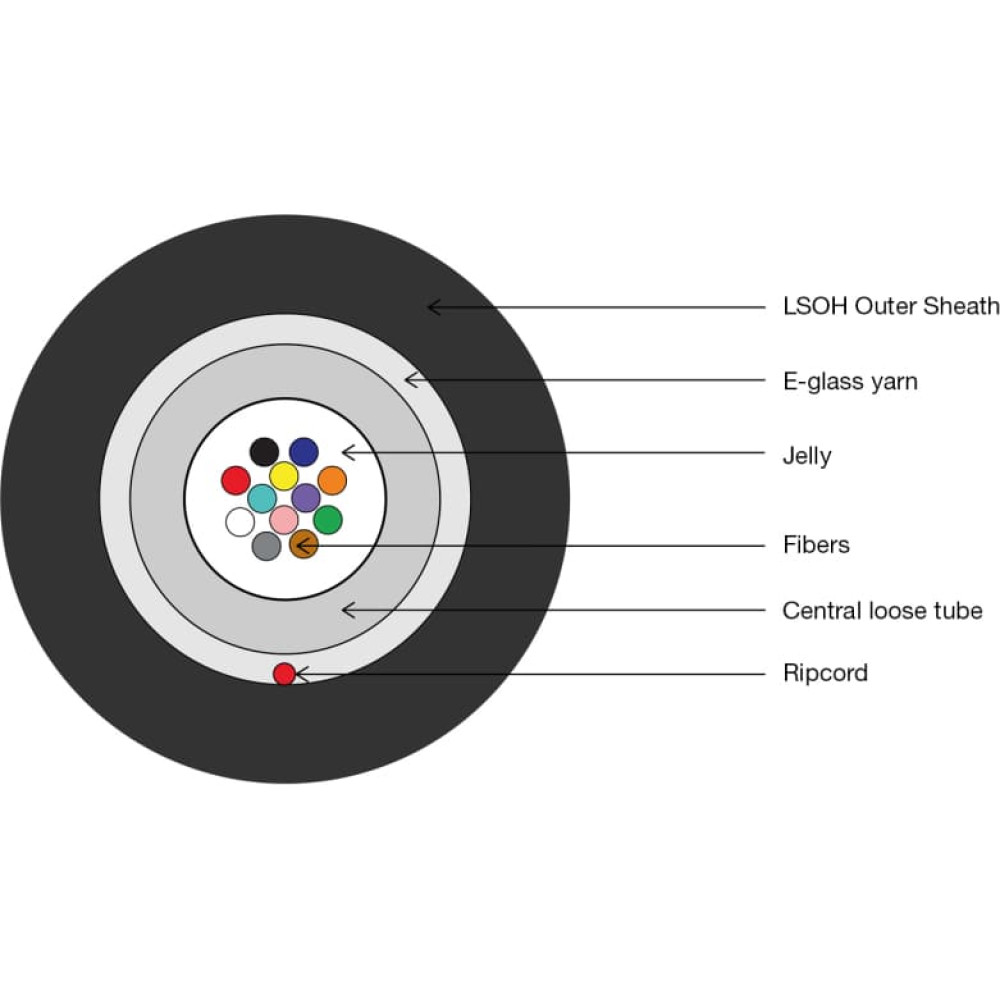

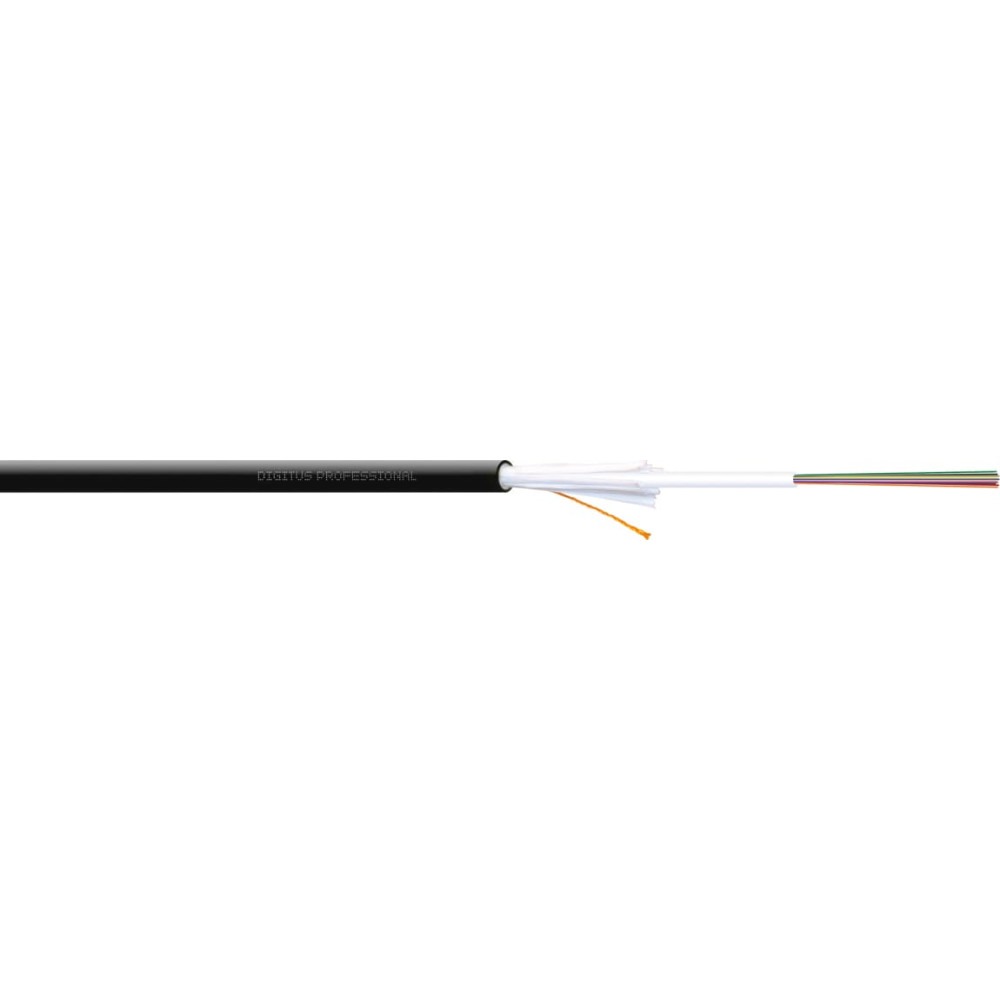

| FO A-I-DQ(ZN)BH 12E9/125µ, SM, OS2, 12 fibers Indoor/Outdoor, LSZH, Dca, black, 100m Future-oriented standards and high-end quality for your network. OS2 9/125µ Central loose tube 12 fibers Non-metallic rodent protection LSZH, CPR Dca The central loose tube offers a design with high tensile strength and flexibility in a compact cable size. Our central loose tube offers fiber optic data transmission and excellent technical performance. Our regular quality control programs according to ISO90001, REACh and RoHS ensure a high level of quality. Through a thorough qualification test of each product in our portfolio, we guarantee a high level of reliability. Both quality procedures are designed to ensure the indoor and outdoor durability and performance of our cables. Application: universal Cable jacket: LSOH Cable type: U-DQ (ZN) BH X E 9/125µm Color cable: black Fiber class: OS2 Mode: Singlemode Number of fibers: 12 LSZH - low smoke zero halogen UV-resistant Resistant to longitudinal and transverse water Glass yarn reinforcement Non-metallic rodent protection Metal-free Attenuation at 1310nm : <= max. 0.34 dB/km (before cabling) ; <= max. 0.36 dB/km (after cabling) Attenuation at 1550nm: <= max. 0.21 dB/km (before cabling) ; <= max. 0.22 dB/km (after cabling) Attenuation at 1625nm : <= max. 0.23 dB/km (before cabling) ; <= max. 0.25 dB/km (after cabling) Dispersion zero point : 1302 ~ 1324 nm Dispersion gradient : <= 0.092 ps/nm 2 x km PMD link value (M=20 cable Q= 0.01%) max. PMDQ : 0.2 ps/?km Cut-off wavelength (?cc) : <= 1260 nm Macro bending loss (100 rotations ; ?50nm) at 1550 nm : <= 0.05 dB Macro bending loss (100 rotations ; ?50nm) at 1625 nm : <= 0.10 dB Mode field diameter at 1310nm : 9.2 ± 0.4 µm Sheath diameter : 125 ± 1 µm Core-shell concentricity error : <= 0.6 µm Sheath out-of-roundness : <= 1.0 % Yield strength : >= 0.69 Gpa Number of fibers (OS2 G.652D) : 2-12 pcs. max. number of loose tubes : 1 pc. Number of fibers per loose tube : 2-12 pcs. loose tube : 2.0 ± 0.2 mm Outer sheath material : LSZH, BauPVO Dca, EN 50575: 2014+A1: 2016 Outer cable diameter : 6.5 ± 0.5 mm Max. permissible tensile force : 1400 N Crush resistance : 1000/200 N/100mm Temperature range : Transportation and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; In operation : - 40°C to + 70°C Min. bending radius : Installation : 20 x OD ; In operation : 10 x OD Package content: 1 x indoor/outdoor installation cable A/I-DQ (ZN) BH 9/125µ OS2, 12 fibers, Dca, LSZH, 100m |
