Sākums Kabeļi Tīkla instalācijas kabeļi Kat. 5e instalācijas kabeļi Draka Holding DRAKA UC300 HS24 SF/UTP H AWG 24 grau, 100 m Ring

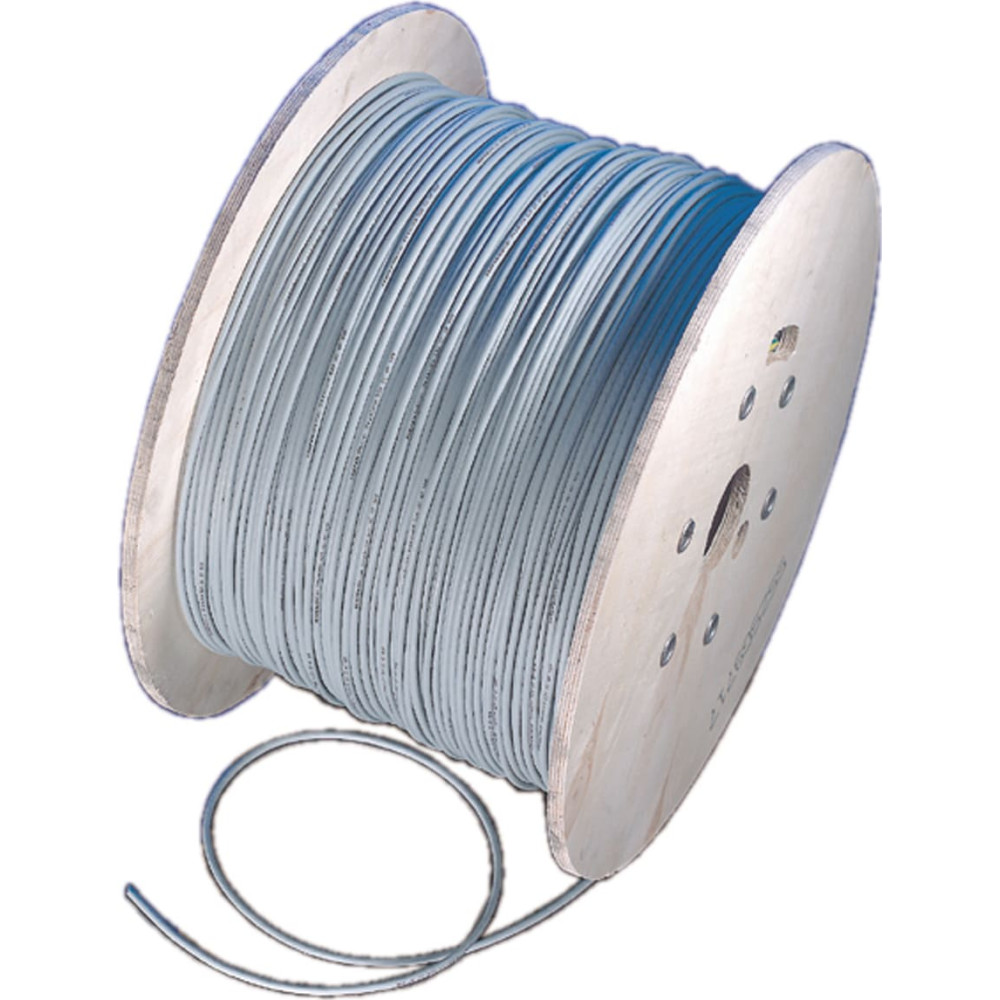

Draka Holding DRAKA UC300 HS24 SF/UTP H AWG 24 grau, 100 m Ring

DRAKA HOLDING

Draka Holding DRAKA UC300 HS24 SF/UTP H AWG 24 grau, 100 m Ring

Produkta kods: 1000536-00100RW
Svītrkods: 8717511108713

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
bend radius: min. 50 mm bei Zugbelastung
cable lsoh: ja
colour: grey
conductor cross section (awg): AWG 24
conductor type: Massivdraht
contents: 100 m
current catalog edition: 24.1
current catalog page: 1.50
depth of packaging (single piece): 290 mm
external cable diameter: 6,4 mm
fire protection class: Eca
garums: 100 m
gross weight: 4.262
height of packaging (single piece): 60 mm
impedance: 100 Ohm
manufacturer: Draka Holding
material (external cable mantle): FRNC
package weight (single piece): 4.262 kg
product group: Twisted Pair Kabel
product type: Installationskabel
quantity of wires: 8
shield type: SF/UTP
technical particularity: Skew bei 100 MHz (Richtwert): 20 ns/100m
transfer quality: Cat5e / Class D
width of packaging (single piece): 290 mm
