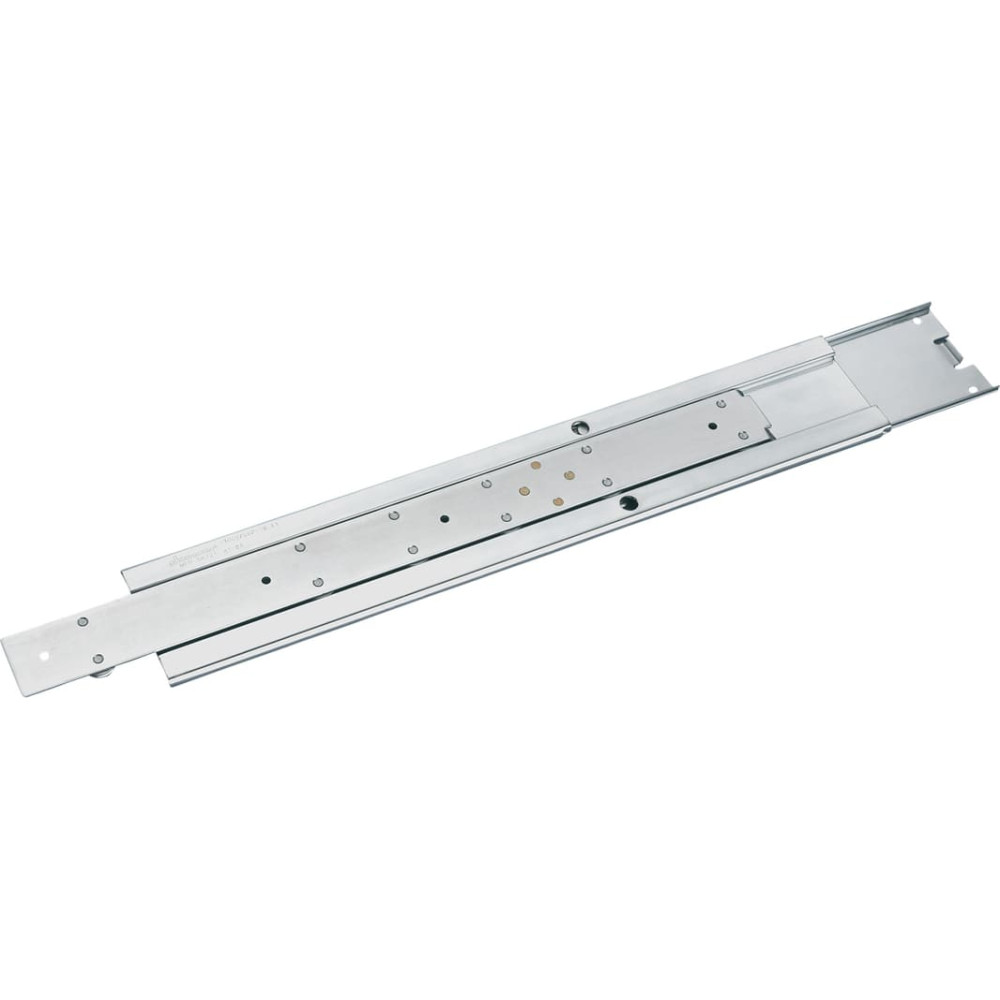

Schroff Telescopic Slide Universal, Slim, 2 U, 406L

Produkta kods: 20110072

Svītrkods: 4036088202025

Ražotājs: SCHROFF

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija

Preces apraksts

Līdzīgas preces

Specifikācija

depth of packaging (single piece): 440 mm

gross weight: 2.542

height of packaging (single piece): 20 mm

height units: 2 U

manufacturer: SCHROFF

maximum weight capacity: 55 kg

package weight (single piece): 2.542 kg

product group: SCHROFF 19" cabinets & expansion parts

product type: Telescopic rails

width of packaging (single piece): 180 mm

Preces apraksts

Universal telescopic runner, narrow, 2 U, 406 long

TELESCOPIC SLIDE UNIV.2U 406D

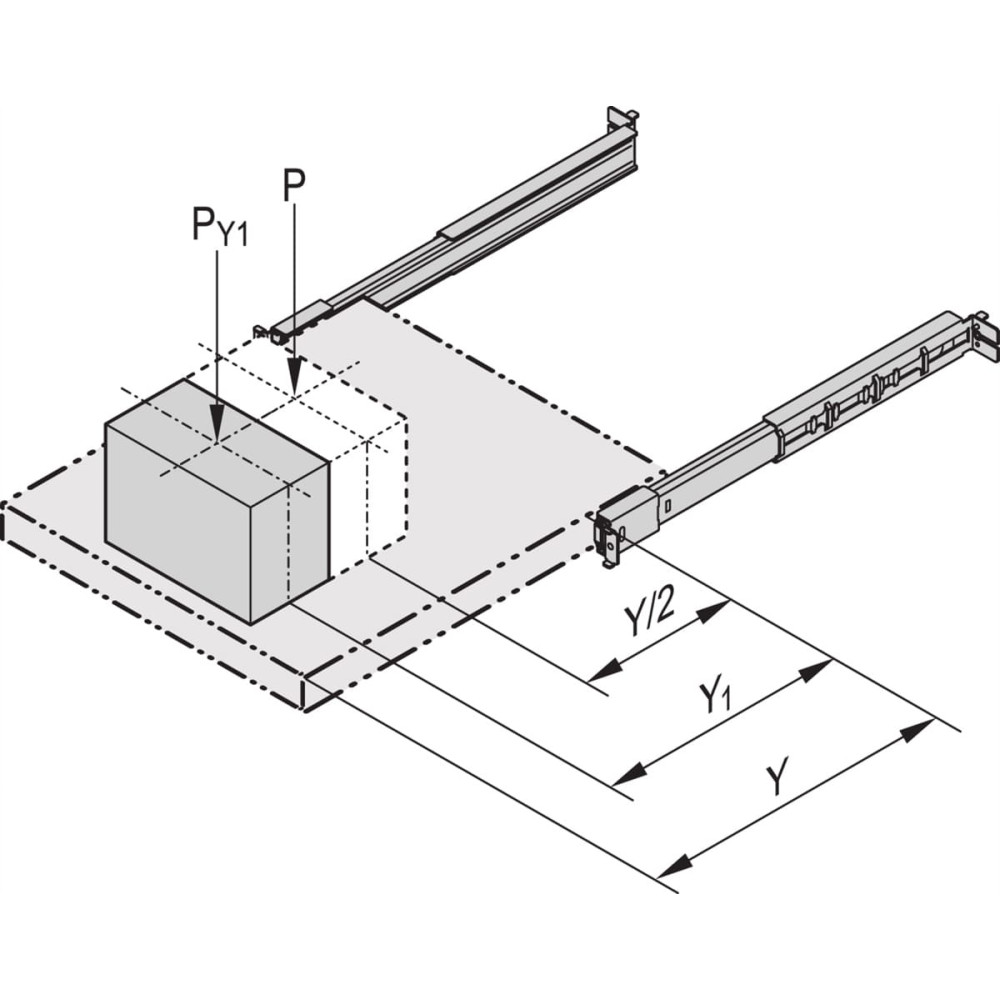

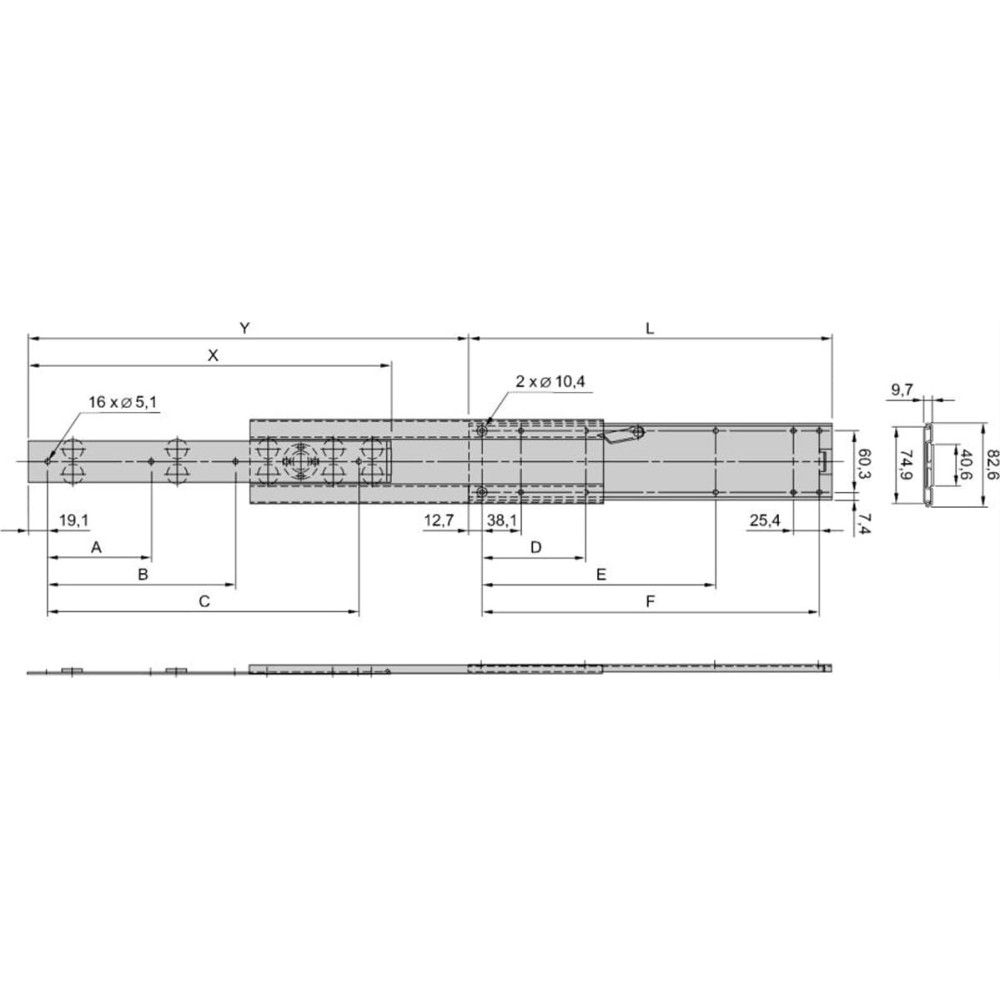

Static load capacity per pair of 46 - 57 kg - Mounting on the side of the 19" uprights (19" level remains free for mounting the pull-out/drawer) - Locking mechanism for full extension - Extension length > 110 % - Rail width k = 9.7 mm, max. installation width of the pull-out/drawer w = 429 mm
