Home Network products Network connectors Delock RJ45 plug with clamp lock 2 pin +/- tool-free - composite power connector

Delock RJ45 plug with clamp lock 2 pin +/- tool-free - composite power connector

Product Code: 90710

Barcode 4043619907106

To purchase this product you must be registered in our system.

Description

Related products

Description

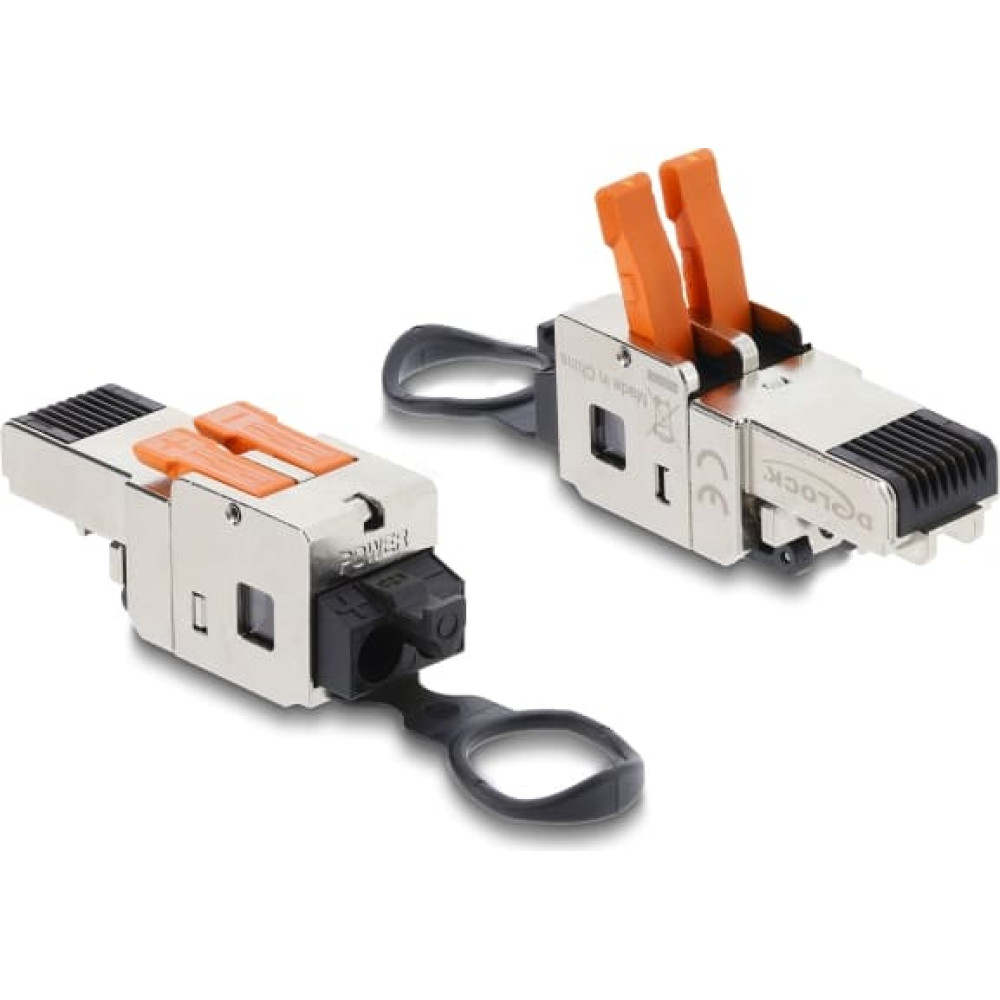

This RJ45 plug by Delock is specially designed for 2-pole wires. Suitable for solid or flexible conductors with a cross-section of 1 - 4 mm².

With clamp lock
The clamping system enables a quick and tool-free connection. To connect, both clamps (+/-) are pulled upwards, the stripped wire ends are inserted into the corresponding openings and the clamps are then pushed down again to create a secure connection. A black plastic ring serves as a quick-release mechanism for connection to an RJ45 socket.

Specification:
• Connector:
1 x RJ45 plug
• Number of poles: 2 (plus / minus)
• Toolfree clamp closure (push-in)
• Suitable for cable cross-section: 1 - 4 mm²
• Rated current: 1.5 A
• Rated voltage: 125 V
• Material: zinc diecast
• Dimensions (LxWxH): ca. 63.4 x 15.7 x 11.6 mm

Package content:
• RJ45 plug

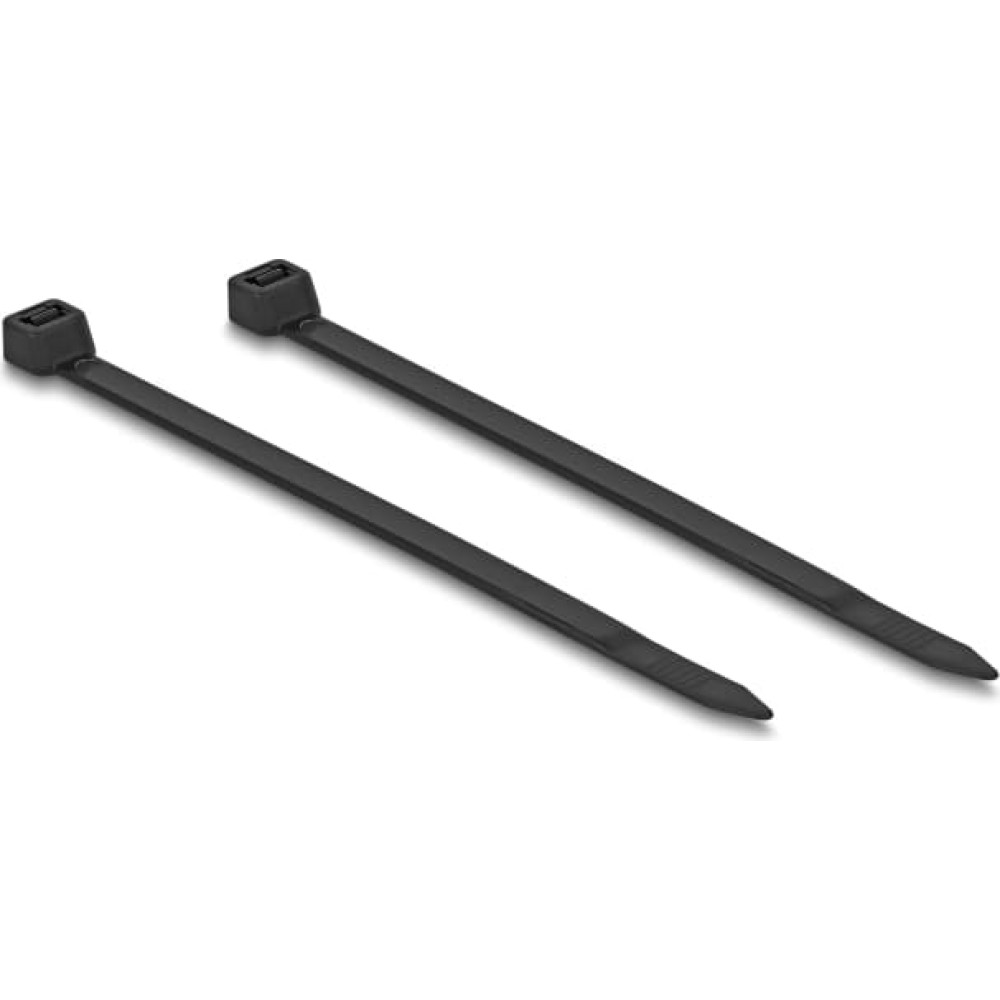

• 2 x cable tie

Data sheet:
https://www.delock.de/produkt/90710/pdf.html?sprache=en
