Digitus CAT 6A compact keystone module, shielded, tool-free mounting connection, 4 pcs.

Product Code: DN-93615-S-4

Barcode 4016032505198

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

country of origin: CN

height(cm): 16.5

length(cm): 2

volume(cm3): 396

weight(kg): 0.0883333

width(cm): 12

Description

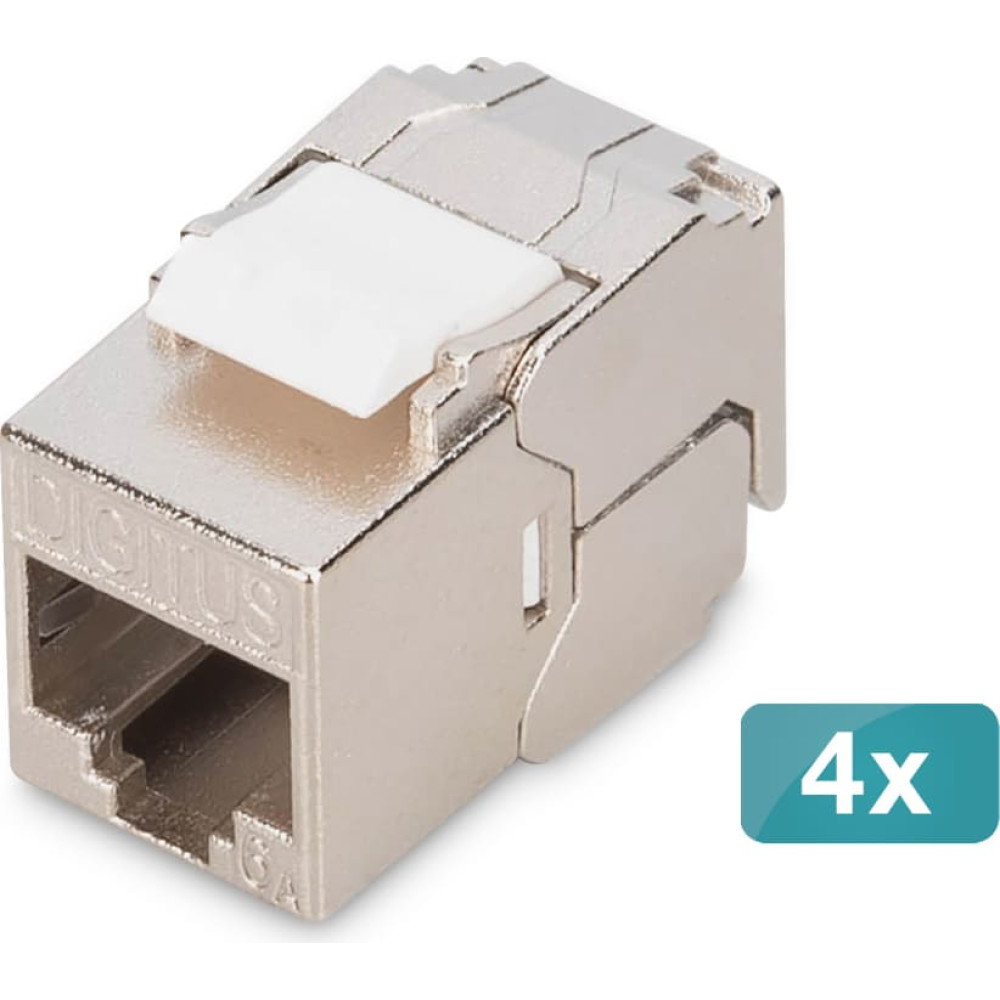

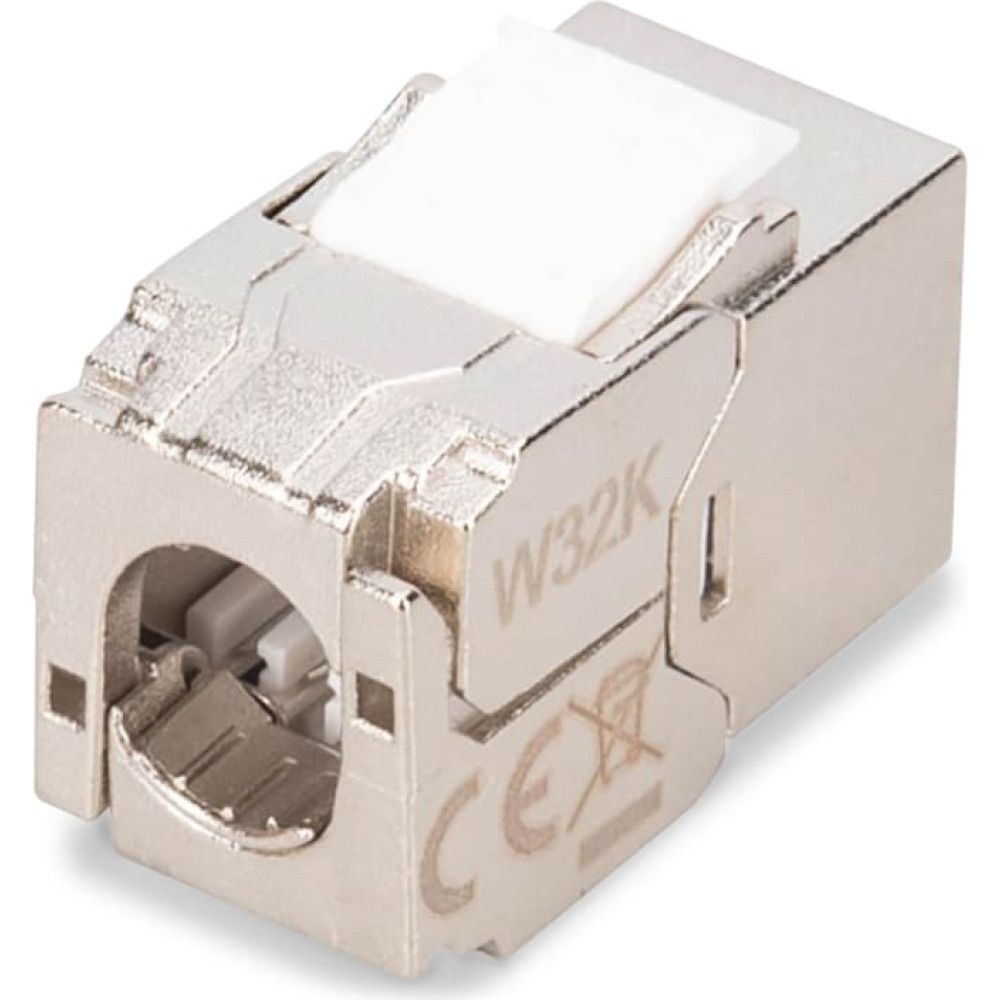

CAT 6A compact body Keystone module, shielded, tool free connection, 4 pcs.

Quick and easy installation without special tools

360° shield contacting
Suitable for field assembly (tool-free installation)
Design-compatible - suitable for mounting in distribution panels and junction boxes
CAT 6A with LSA insulation displacement connectors
Dust protection cap for RJ45 socket
Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

The shielded CAT 6A short keystone module DN-93615-S-4 from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Category: CAT 6A
Category 6A 10GBase-T, 500 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
Suitable for distribution panel and junction box installation
RJ45 socket, 8P8C

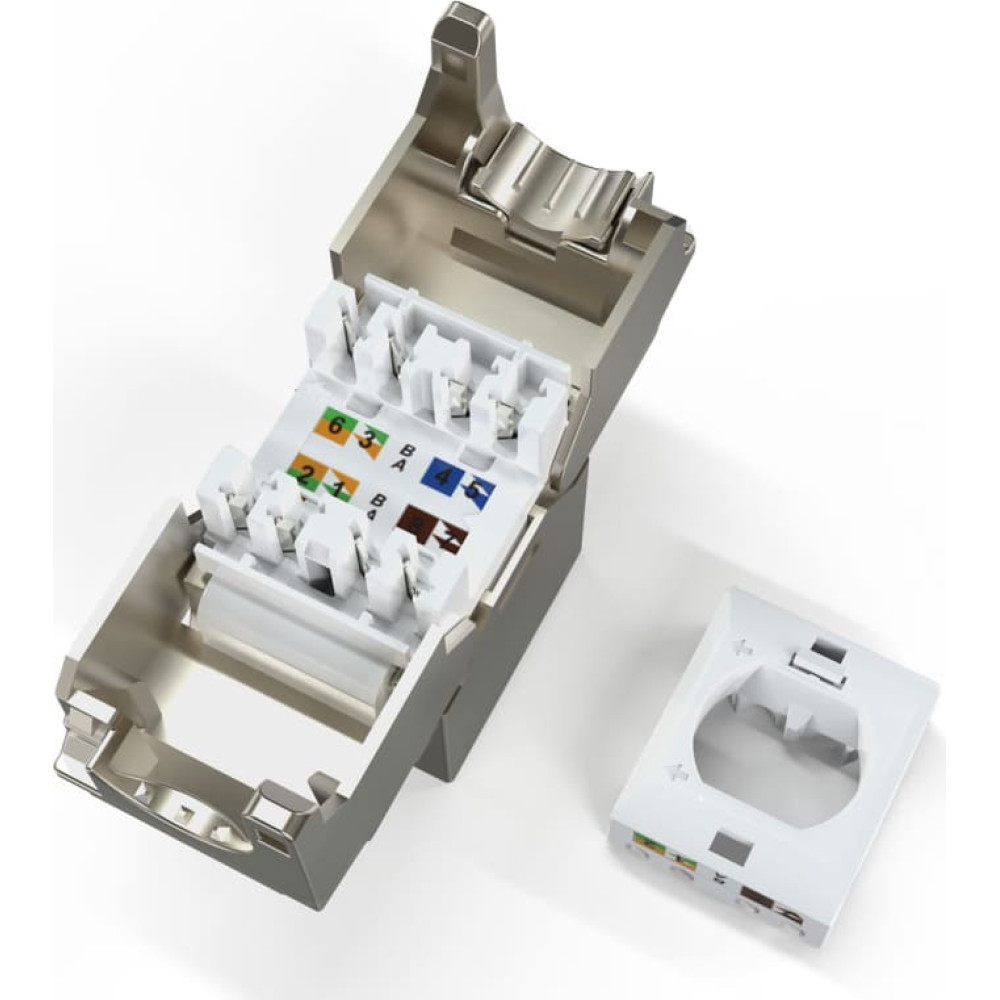

Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B

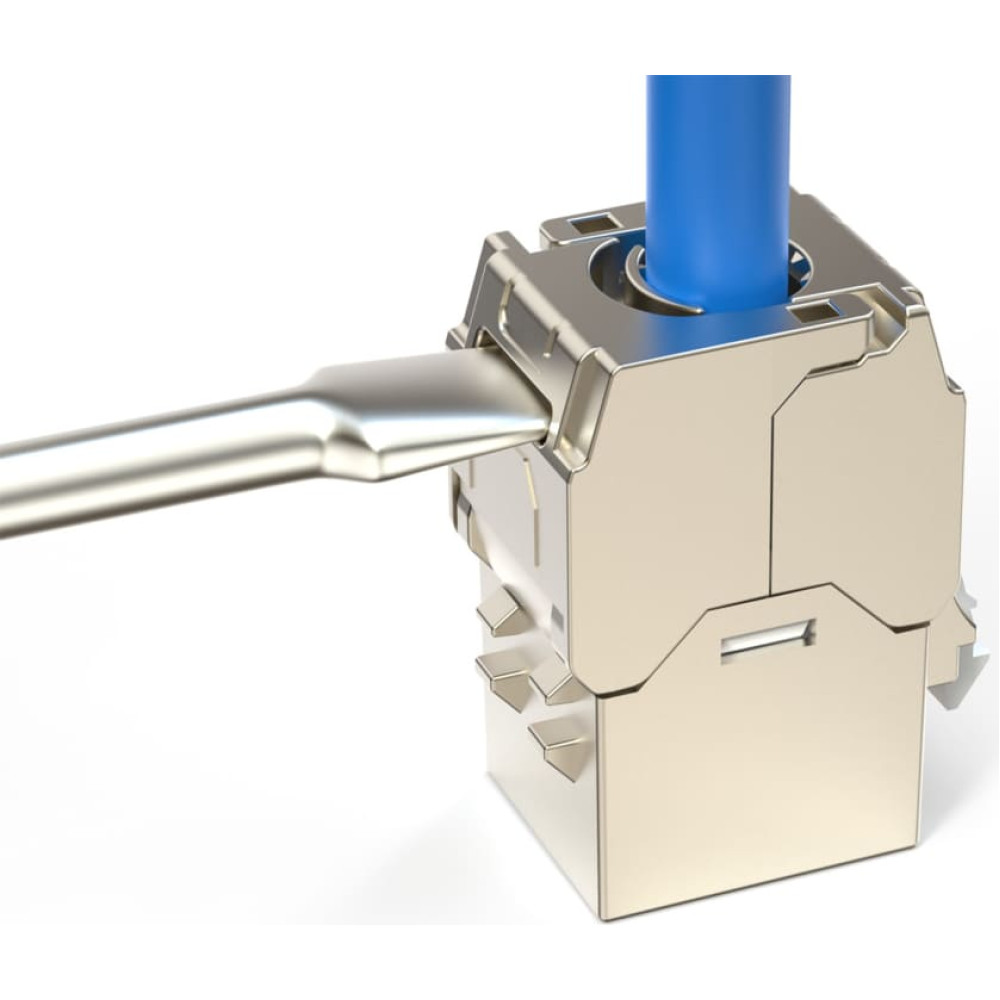

Strain relief and cable fixing using cable ties
Tool-free mounting connection

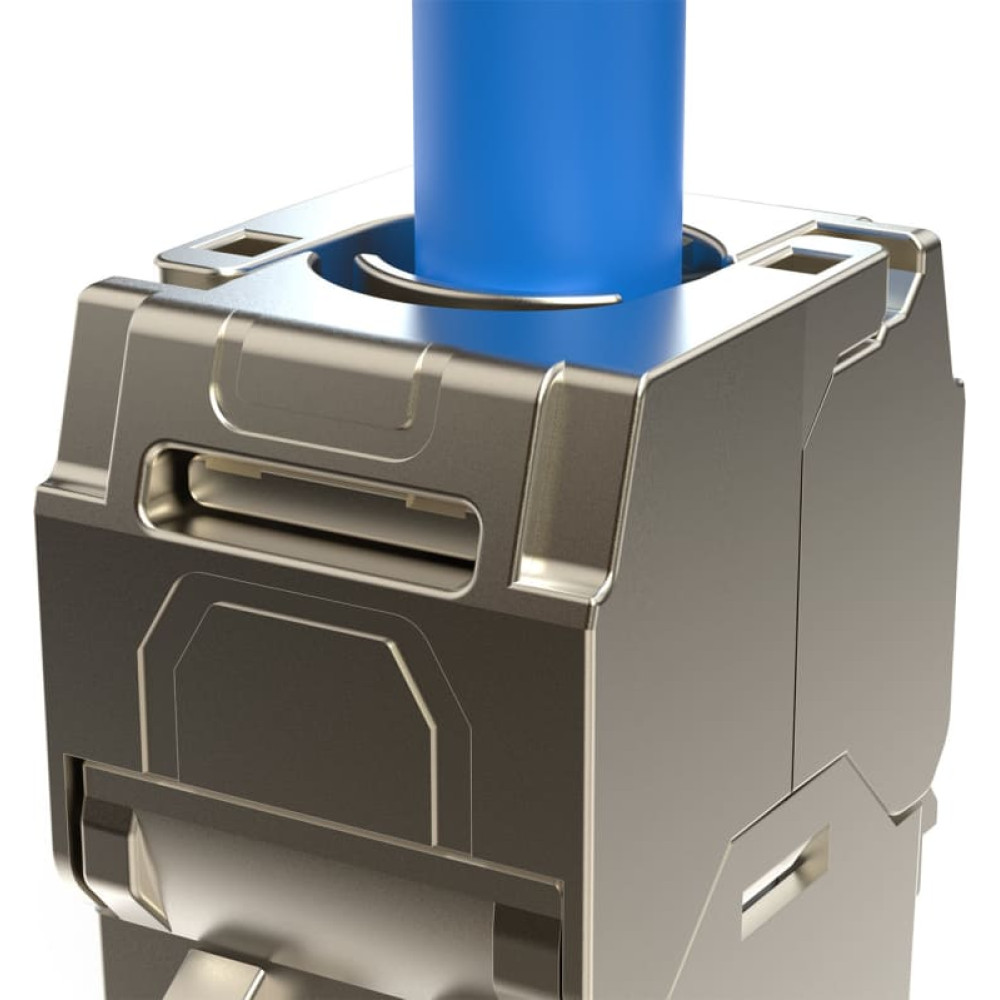

360° shield contacting
Housing material: Zinc die-cast - nickel-plated
Contact material: phosphor bronze
Coating Contacts: Nickel, gold-plated 0.5 u
Insertion force: Max. 30N (according to IEC 60603-7-51)
Holding force: 7.7 kg between socket and plug
Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: >= 750 (ISO/IEC 11801, IEC 60603-7-51)
Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
Intelligent cable manager (reclosable)
