Roline Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°

ROLINE

Roline Keystone Holder, with Cat.6A Keystone, shielded, DIN-Rail, 45°

Produkta kods: 26.11.0379
Svītrkods: 7630049635692

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
assignment: EIA/TIA 568A & 568B
colour: grey
connection direction: 45°-inclination
current catalog edition: 25.1
depth: 63.9 mm
depth of packaging (single piece): 60 mm
dimensions (hxwxd): Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x ...
gross weight: 0.05
height: 78.25 mm
height of packaging (single piece): 10 mm
manufacturer: ROLINE
material (casing): ABS + Zinc Alloy
operating temperature max.: 60 °C
operating temperature min.: -10 °C
package weight (single piece): 0.05 kg
product group: Connection technology TP
product type: DIN rail adapter
quantity of ports: 1
scope of delivery: DIN-Rail Keystone Holder and Keystone, Installation Guide...
shield type: Screened
storage temperature max.: 70 °C
storage temperature min.: -40 °C
transfer quality: Cat6A / Class EA
weight: 31 g
width: 17.7 mm
width of packaging (single piece): 60 mm
Preces apraksts

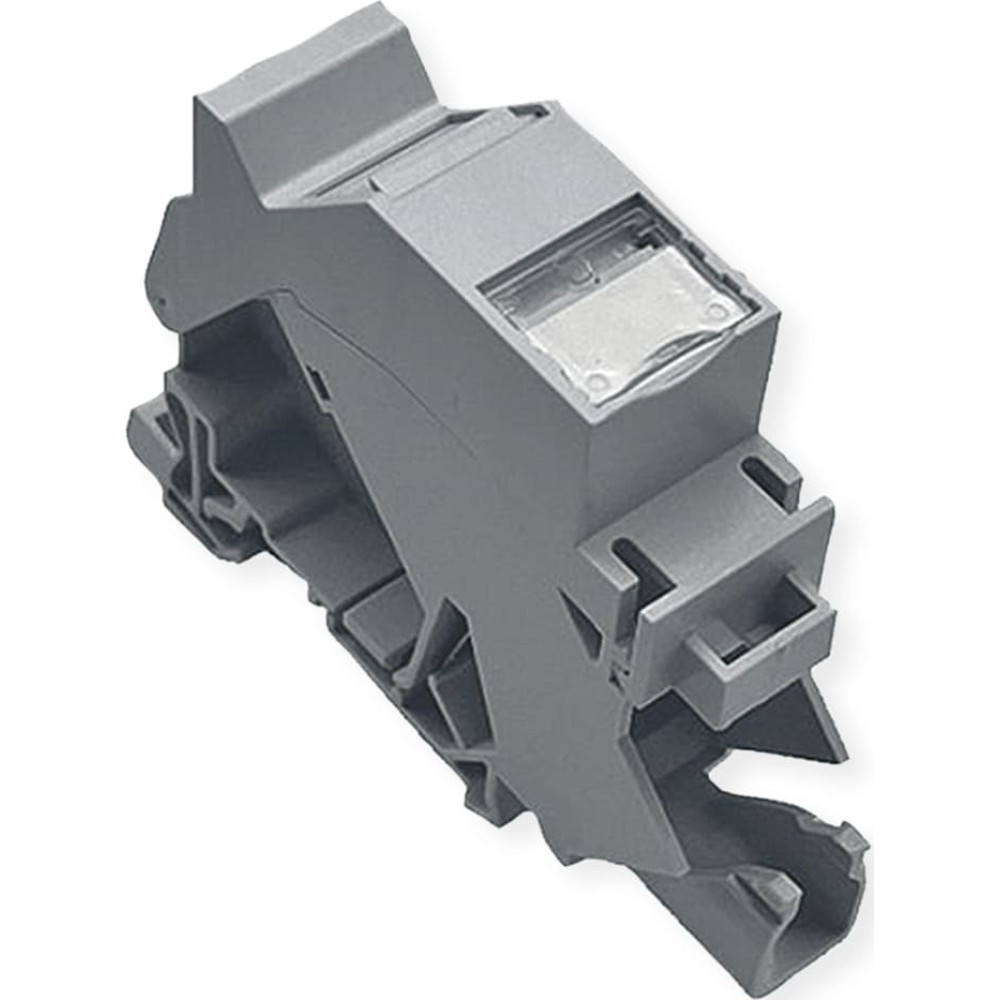

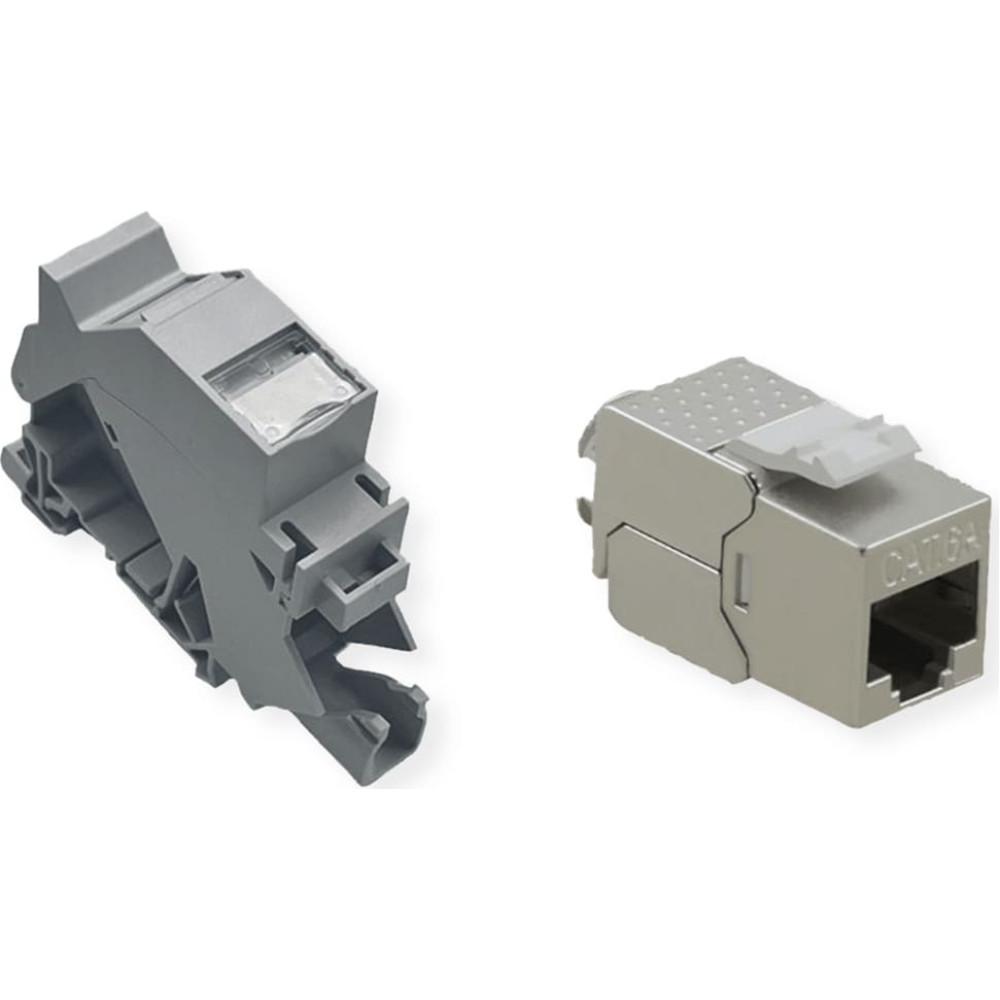

Keystone holder including shielded Cat.6A keystone, for installation on DIN rail

  • Cable access 45° from the top or bottom, connection direction 45° downwards
  • With shielded plate (grounding)
  • Keystones with printed colour coding in accordance with EIA/TIA 568
  • Cables can be connected to the keystones without tools – simply place the cable wires in the guides, close the module and press it together – and the connection is complete
  • Holder with integrated dust cover
  • For cables with outer diameter: 5.0 - 8.0mm
  • Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
  • Dimensions Keystone Holder: 78.25 x 17.7 x 63.9mm
  • Dimensions Keystone: 21.5 x 14.7 x 34.5 mm
