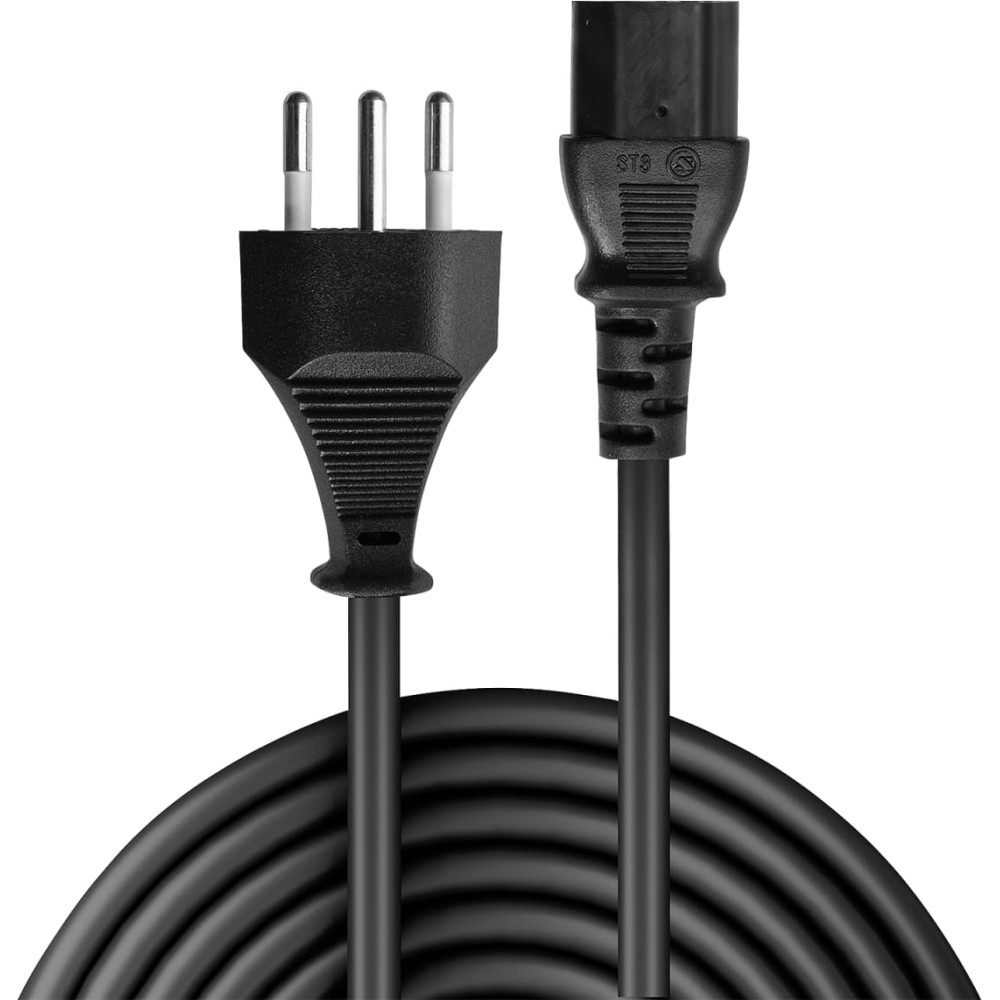

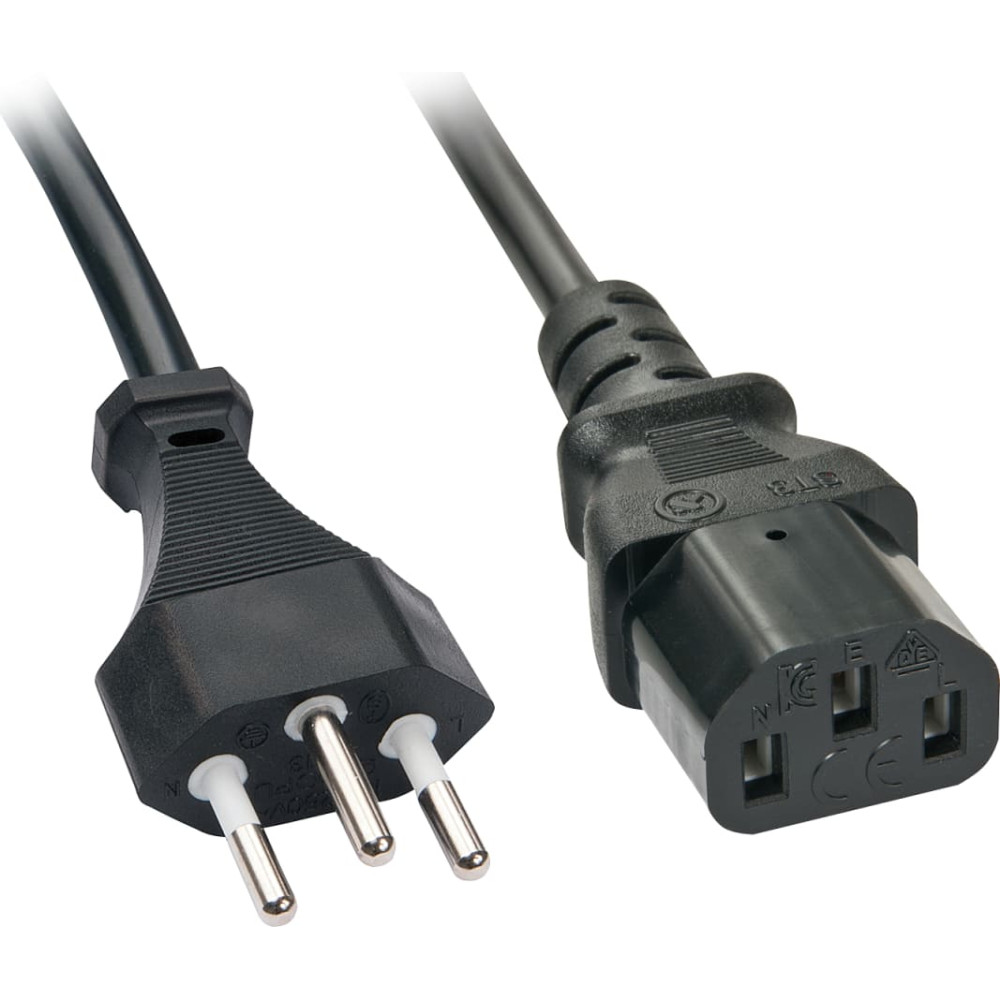

Connectors

• Connector A: Swiss Mains Plug
• Connector B: IEC C13
• Housing Material: PVC
• Pin Construction:
  • A: Brass
  • B: Phosphor Bronze
• Pin Plating: Nickel
• Dimensions (approx.) WxDxH:
  • A: 35.5x49.5x19.8mm (1.4x1.95x0.78in)
  • B: 25.6x65x16.5m (1.01x2,.56x0.65in)

Cable Construction

• Length: 5m (16.40ft)
• Colour: Black
• Conductor Material: Copper
• Cable Material: H05VV-F 3G 1.0mm²
• Number of Wires: 3
• Wire Gauge: 1.0mm²
• Jacket Diameter: 6.8mm (0.27in)
• Jacket Material: PVC

Specifications

• Rated Voltage and Current: 10A/250V
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

• No.: 30419
• EAN: 4002888304191

This product is also available in other lengths

• 30425 - 0.7m (2.30ft)
• 30417 - 2m (6.56ft)
• 30418 - 3m (9.84ft)
• 30419 - 5m (16.40ft)
