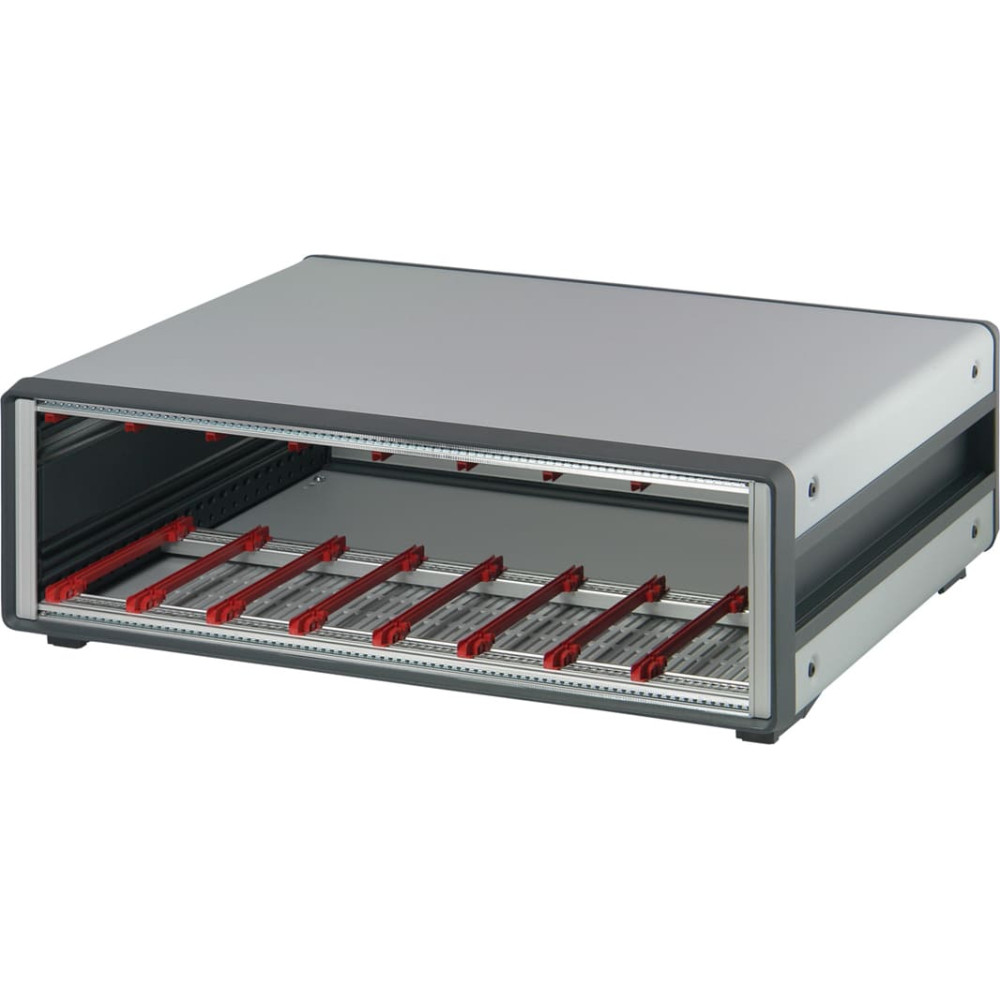

Schroff CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 511 mm

SCHROFF

Schroff CompacPRO Complete Desktop Case, Unshielded, 3 U, 84 HP, 511 mm

Product Code: 14575178

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
depth: 511 mm
depth of packaging (single piece): 550 mm
gross weight: 6.364
height: 147.1 mm
height of packaging (single piece): 190 mm
height units: 3 U
manufacturer: SCHROFF
maximum weight capacity: 30 kg
package weight (single piece): 6.364 kg
product group: SCHROFF 19" cabinets & expansion parts
product type: Compac PRO
protection class (ip code): IP20
width: 471 mm
width of packaging (single piece): 490 mm
width units: 84 HP
Description

CompacPRO, 3" complete housing, unshielded, desktop version, 84 U, 511 HP, mm

COMPAC PRO CASE 3U 84HP 511D

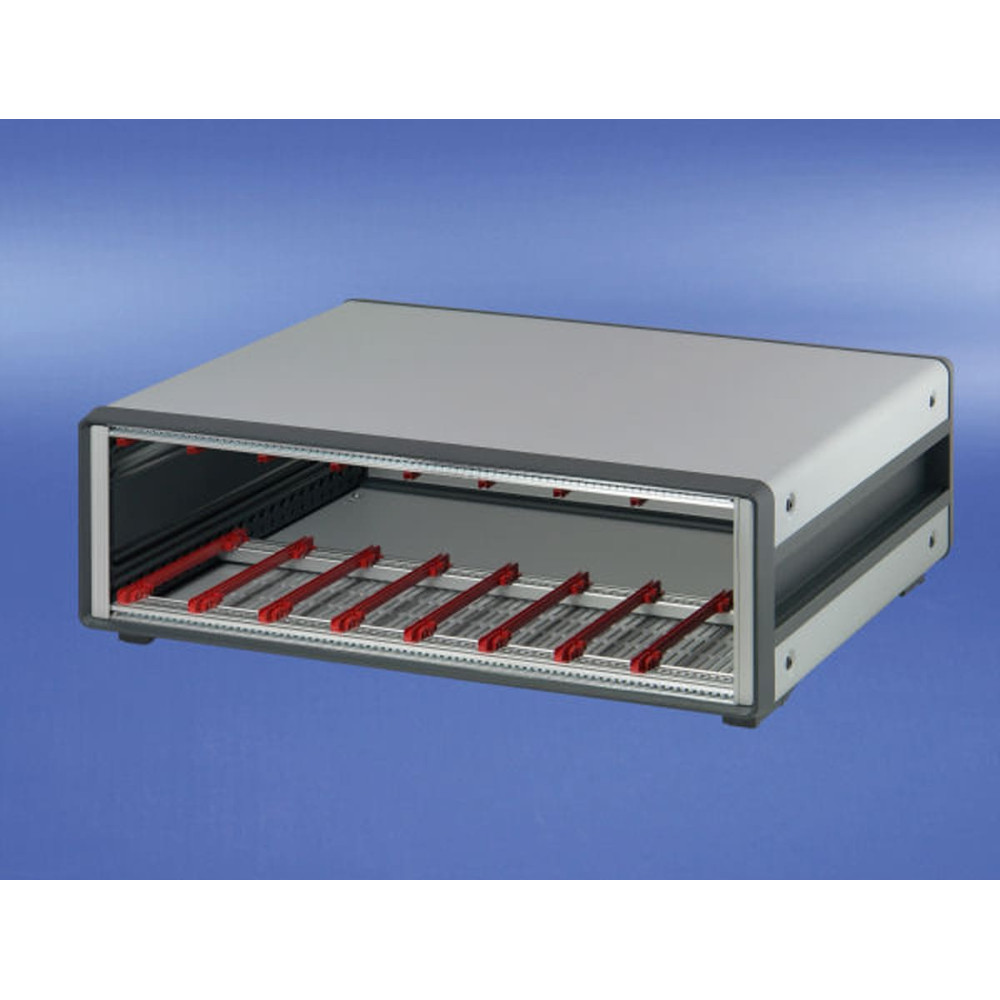

Desktop enclosure with pre-assembled removal parts in accordance with IEC 60297-3-101. Prepared for 19" removal components such as plug-in modules and Eurocards - For backplane mounting with insulating strips - Ventilation slots in the base plate - Rear panel with ventilation slots
