Delock SMA end launch jack straight at printed circuit board up to 1.7 mm thread length 9 mm

Product Code: 67412

Barcode 4043619674121

To purchase this product you must be registered in our system.

Description

Related products

Description

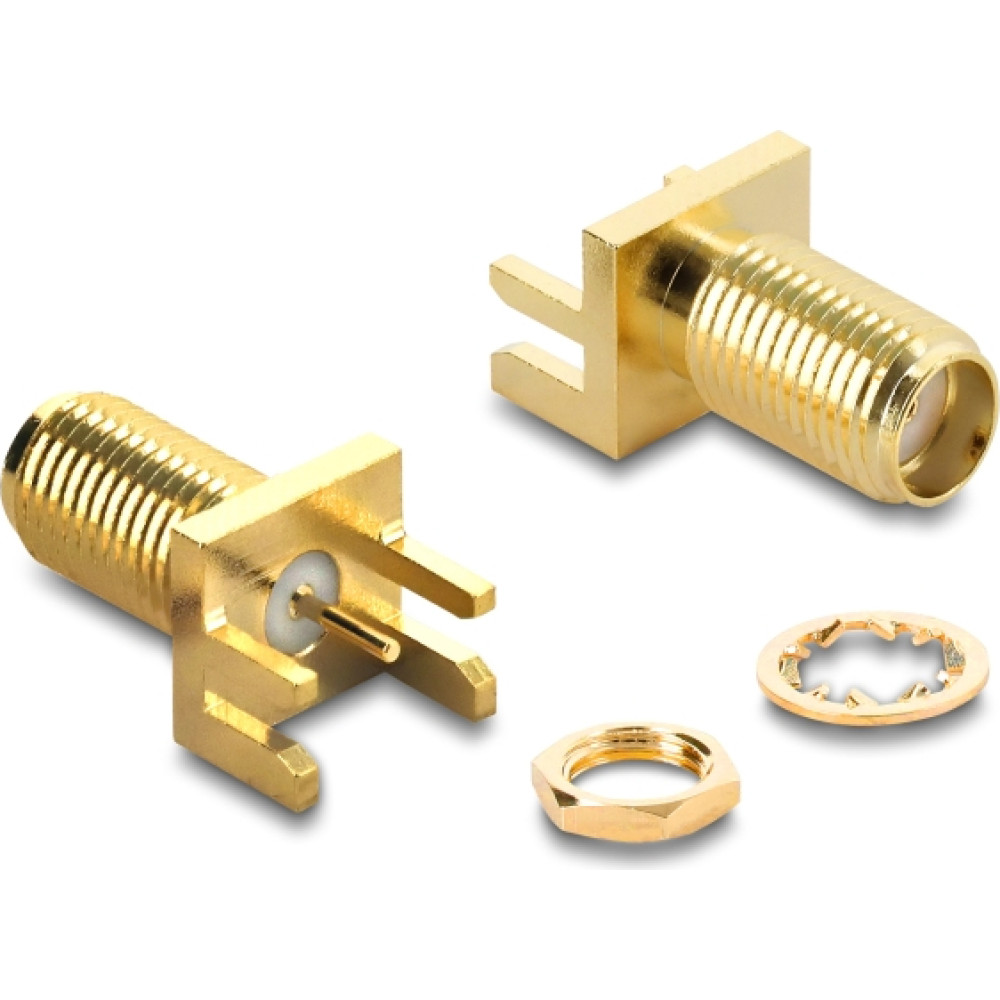

The SMA coaxial jack by Delock is suitable for solder mounting on circuit board edges with a maximum thickness of 1.7 mm. The gold coating prevents corrosion and ensures an optimal connection.

Specification:
• Connector: 1 x SMA jack
• Frequency range: DC - 6 GHz
• Housing: brass gold plated
• Impedance: 50 Ohm
• VSWR: < 1.3
• Insulator: PTFE
• Insulation resistance: > 5000 MOhm
• Mating Cycles: > 500
• Mounting type: surface-mounting technology
• Soldering: 5 solder points
• Operating temperature: -65 °C ~ 165 °C
• Withstanding voltage: 1000 V / 50 Hz
• Insertion loss: < 0.1 dB / GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 9 mm
• Dimensions (LxWxH): ca. 17.8 x 9.5 x 7.9 mm

Package content:
• SMA Jack
• Nut
• 1 x serrated lock washer

Data sheet:
