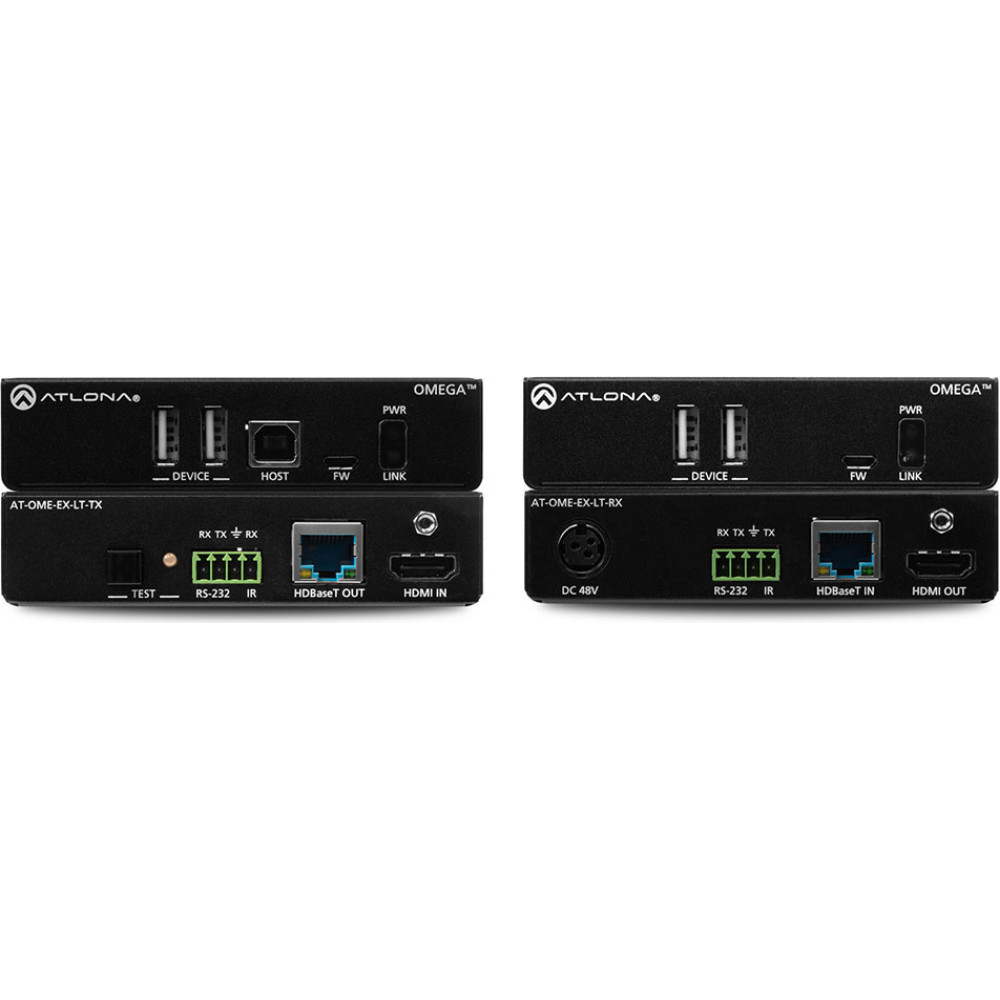

Atlona HDBASET EXT. KIT HDMI WITH USB
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
connections: HDMI, USB, RJ45, Terminal block
connections (in): HDMI A (full-size) female (x1), RJ45 female (x1)
connections (out): RJ45 female (x1), HDMI A (full-size) female (x1)
country of origin: TW
extender category: 51-100 m
extension cable: CATx (x1)
extension connector: RJ45
extension over: CATx
extension protocol: HDBaseT
hdmi specification: Not specified by manufacturer
included: Mounting material, power adapter
max. extension distance: 70 m
max. resolution @ 30hz: 2160p
other signals: RS-232, IR, Digital audio
power supply: External power supply
supported features: HDCP, EDID
video signal: HDMI
Description
| The AtlonaAT-OME-EX-KIT-LTis an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. Part of theOmega™ Seriesof integration products for modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and extends IR and RS-232 control signals. A maximum 120 Mbps data rate is supported, due to specific USB bandwidth limitations over HDBaseT.
HDBaseT extender kit for HDMI®, power, control, and USB 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling USB 2.0 interfacing and extension up to 230 feet (70 meters) HDCP 2.2 compliant Transmitter powered by receiver via PoE (Power over Ethernet) File - Datasheet 1 |
