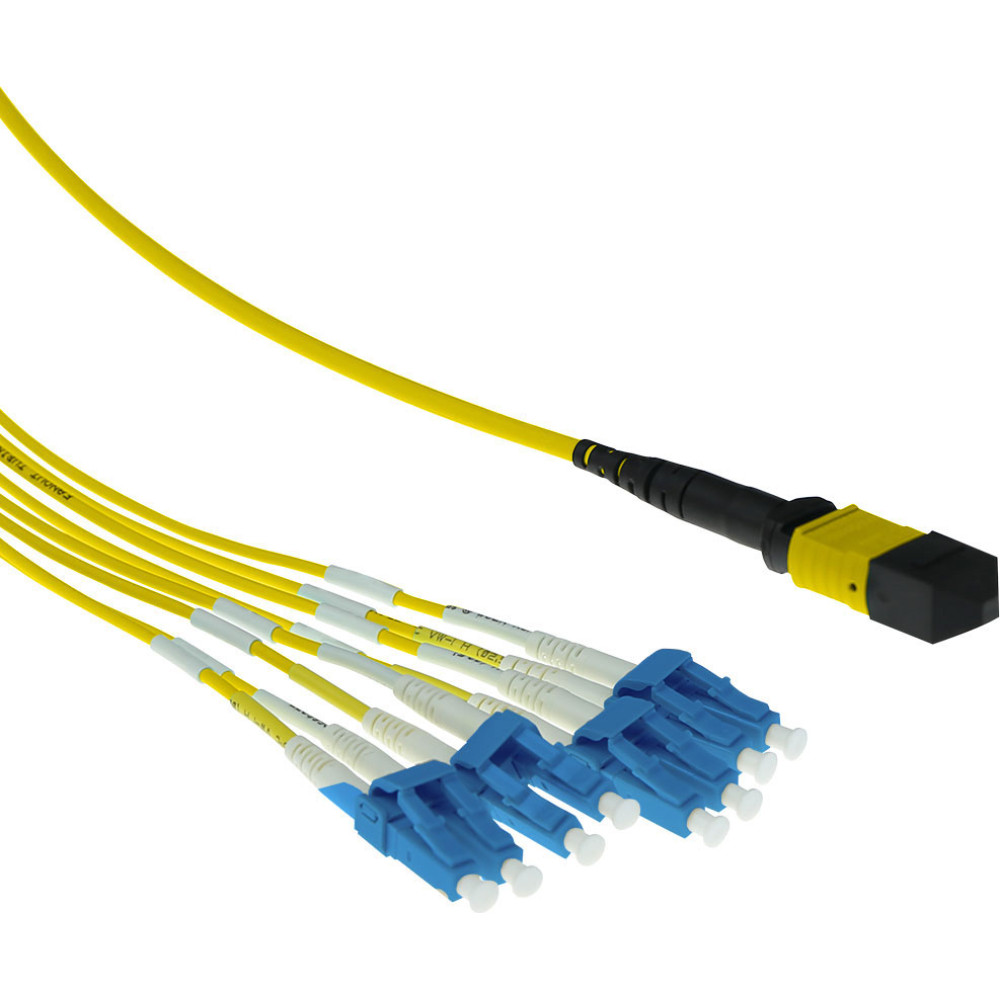

ACT 2M 8X9/125 OS2 MTP/MPO(F)
To purchase this product you must be registered in our system.
Specification
cable colour: Yellow
cable length: 2 m
category: OS2
connector a: MTP (MPO) female (x1)
connector b: LC male (x8)
connector type: MTP (MPO), LC
core diameter: 9/125 µm
country of origin: CN
fiber cable: Patchcord
fiber type: Singlemode
il (avg.): 0.2 dB
il (max.): 0.35 dB
max.working temperature: 70 °C
min. working temperature: -20 °C
number of fibers: 8
outer diameter: 3 mm
outer jacket: LSZH
polishing a: APC8
polishing b: UPC
rl (min.): 55 dB
Description
| 2 meter Singlemode 9/125 OS2 fanout patchcable 1 X MTP female - 4 X LC duplex 8 fibers
Ultra compact by using 8 fibers in a 3mm cable and one MTP connector at each end, so very suitable for datacenters ACT MTP/MPO cables use MTP® US Conec connectors for among other benefits a very low loss Designed to be used with QSFP+ 40G and QSFP28 100G transceivers File - Datasheet 1 |
