Home Cables Network patch cable RJ45 Network RJ45 (6a cat) ACT CAT6A U/FTP SLIMLINE OR 7.00M

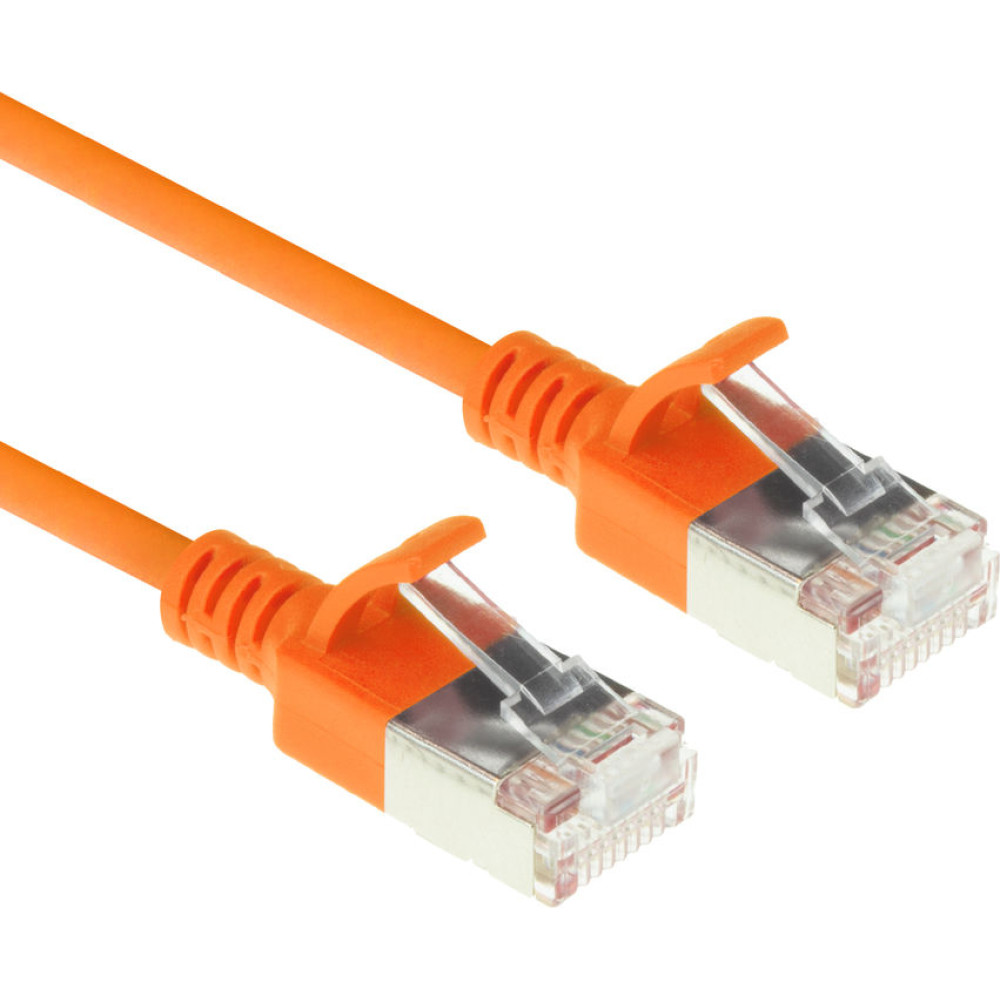

ACT CAT6A U/FTP SLIMLINE OR 7.00M

Product Code: DC7107

Barcode 8716065509816

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

bandwidth: 500 MHz

cable colour: Orange

cable length: 7 m

category: CAT6A

colour number: RAL 2003

conductor material: Copper

connector a: RJ45 male (x1)

connector b: RJ45 male (x1)

connector contact plating: Gold plated

connector type: RJ45

country of origin: CN

impedance: 100 ¿

mating cycles: 750

max.working temperature: 75 °C

min. working temperature: -20 °C

outer jacket: LSZH

shielding type: U/FTP

wire gauge: 32 AWG

Description

CAT6A U/FTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6A patch cords. The bending radius is lower in comparison with regular patch cords. This results in a better airflow in the server rack/network cabinet. Although, ISO/IEC and TIA standards describe the use of patch cords between 22 and 28 AWG, it is possible to use 32 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.

Cable length: 7 m
Full copper 32AWG wires, 50µ gold RJ-45 contacts
Snagless boots
Outer diameter jacket of only 3.8mm to improve air flow in cabinets
For connecting two active devices e.g. a switch and a nas
Specifications comply to international standards
5 Year warranty
