Home Cables Optical cables 9/125 62.5/125 50/124 MTP ACT LC/LC 9/125 OS2 DX ARM 1.5M

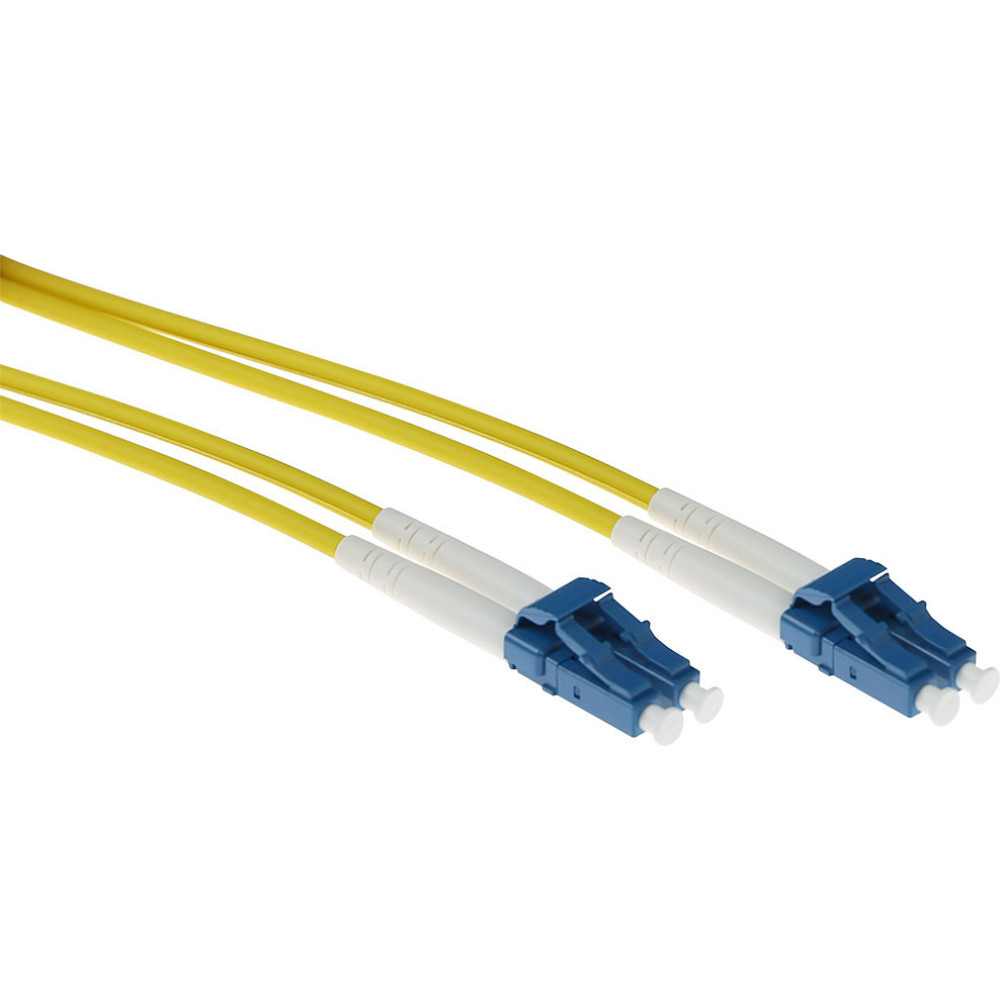

ACT LC/LC 9/125 OS2 DX ARM 1.5M

Product Code: RL3351

Barcode 8716065393866

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Yellow

cable length: 1.5 m

category: OS2

clipped: Both

connector a: LC male (x2)

connector b: LC male (x2)

connector type: LC

core diameter: 9/125 µm

country of origin: CN

fiber cable: Armored

fiber type: Singlemode

il (avg.): 0.07 dB

il (max.): 0.15 dB

max.working temperature: 80 °C

min. working temperature: -25 °C

number of fibers: 2

outer diameter: 3 mm

outer jacket: LSZH

polishing a: UPC

polishing b: UPC

rl (min.): 50 dB

Description

When your patchcords are exposed to extreme conditions in harsh environments you can chose armored patchcords. Armored patchcords are also known as armoured fiber optic patchcords. These are patchcords with a metal armor which offers the best protection. This type of patchcord is commonly used in industrial or offshore environments.

Best mechanical protection | Armored fiber optic patchcables have steel armor for extra protection
100% clarity | Each cable is tested on IL (Insertion Loss) and comes with an individual test report
Highest quality and best optic performance | performs according to grade A (IEC Standard 61300-3-34)

File - Datasheet 1
