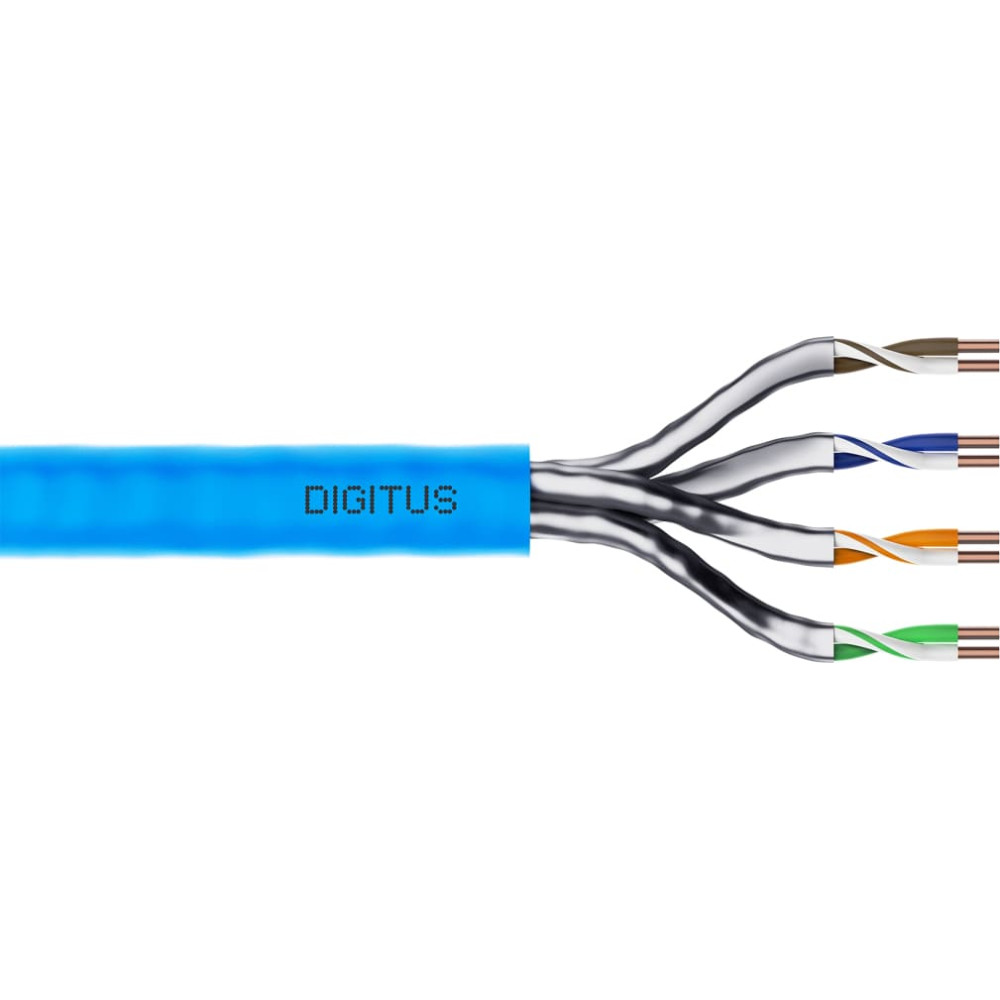

Digitus CAT 6A U/FTP data cable - installation cable, 500 m, simplex, Dca
To purchase this product you must be registered in our system.
Specification
country of origin: CN
height(cm): 32
length(cm): 34
volume(cm3): 36992
weight(kg): 26
width(cm): 34
Description

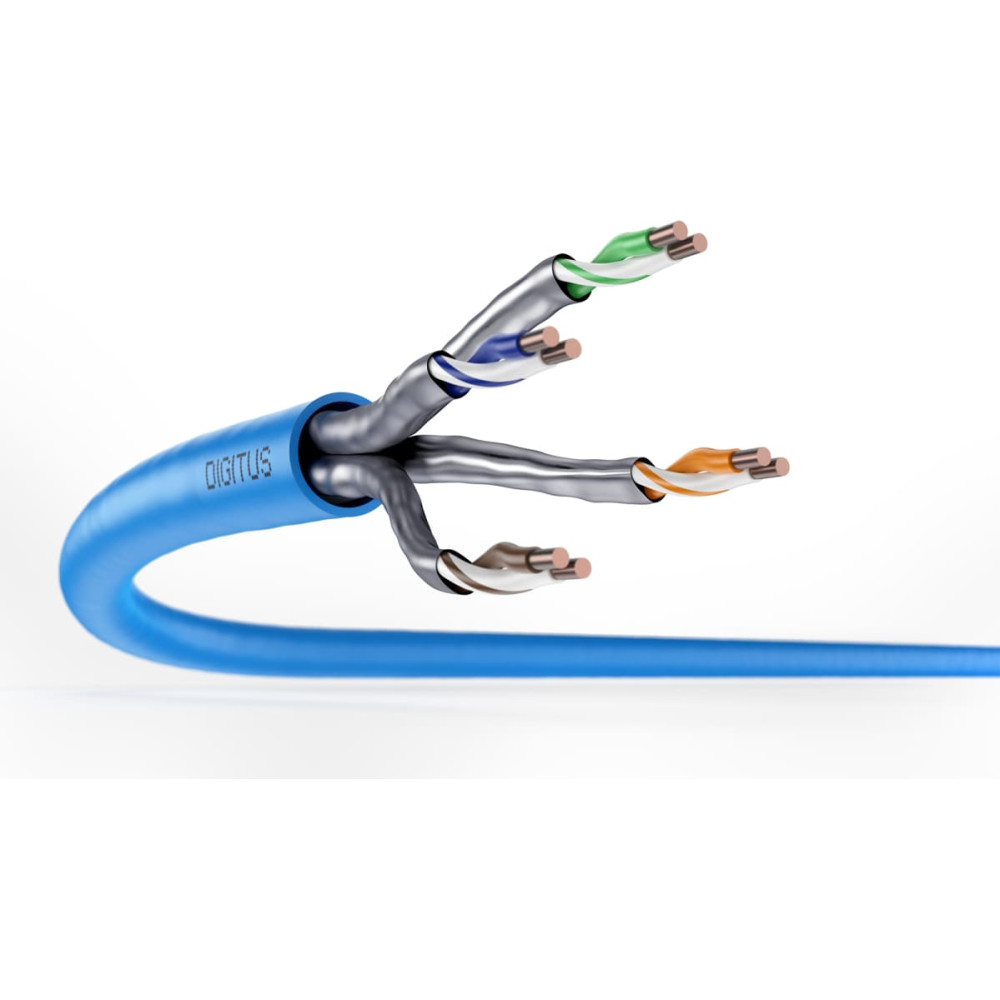

| CAT 6A U-FTP installation cable, 500 MHz Dca (EN 50575), AWG 23/1, 500 m drum, Future-oriented standards and high-end quality for your network. 10GBit Ethernet 500 MHz transmission frequency PoE Power over Ethernet support BauPVO class Dca The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 500 MHz. The halogen-free cable sheath conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Dca standards. The cable is suitable for structured building cabling in secondary and tertiary areas. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1. Assortment: Twisted Pair Installation Cables Category: CAT 6A Shielding: U-FTP, pairs in metal foil CPR: Dca Length: 500 m Color: light-blue Jacket: LSOH Structure: 4 x 2 AWG 23/1, solid twisted pair Physical properties: Conductor: Bare copper wire, AWG 23/1 System(s) of assessment and verification of constancy of performance: System 3 Total number of insulated conductors: 8, twisted into 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Shielding of the individual pairs: Aluminum-laminated polyester film, covers 100% Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH Outer sheath thickness (nominal): 0.5 mm (Eca); 0.6 mm (Dca); 0.8 mm (Cca); 0.8 mm (B2ca) Outer casing color: Light blue (RAL 5012) Mechanical properties: Tensile load: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Transport and storage temperature range: -20 °C to +60 °C Operating temperature range: -20 °C to +75 °C Installation temperature range: 0 °C to +50 °C Outer diameter: 7.0 mm (Eca); 7.2 mm (Dca); 7.6 mm (Cca); 7.6 mm (B2ca) Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 (Cca); 58 kg (B2ca) Electrical properties: Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @ 100-500 MHz; Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance) Operating voltage: 72 Vdc max. Coupling attenuation: CA-Type 2 Phase delay: 450 nS/100 m max. Time delay: 15 nS/100 m max. Separation class: "c" according to EN 50174-2 NVP: 70% |
