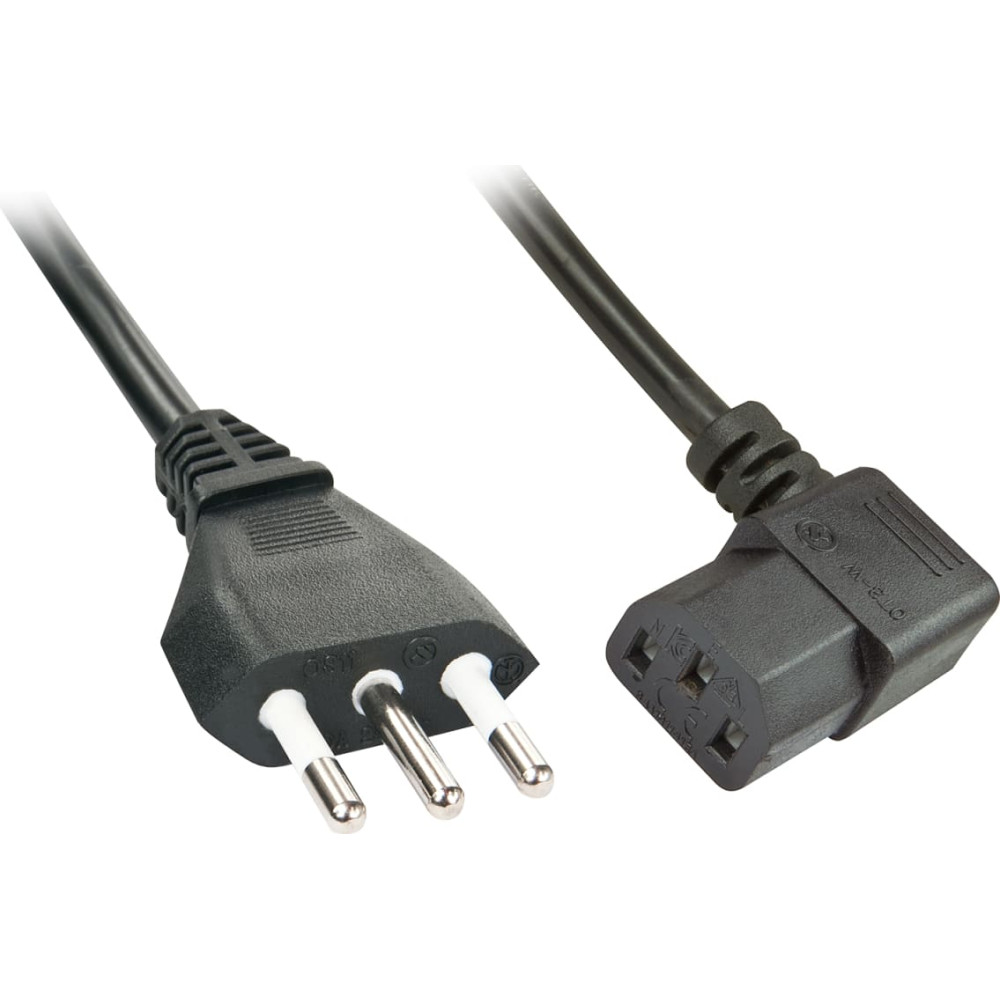

Lindy IEC Mains lead (Italian), angled, 2m

LINDY

Lindy IEC Mains lead (Italian), angled, 2m

Produkta kods: 30346
Svītrkods: 4002888303460

Lai varētu iegādāties šo produktu, jābūt reģistrētam mūsu sistēmā.

Specifikācija
Preces apraksts
Līdzīgas preces
Specifikācija
cable length: 2 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c7/cc/c0/65/65c0ccc7aab9dc9353741f51/CE_30346, 30411, 30413, 30414, 30415.pdf
connector 1: C13 coupler
connector 1 form factor: Angled
connector 1 gender: Female
connector 2 form factor: Straight
connector 2 gender: Female
connector angle: 90°
country of origin: CN
harmonized system (hs) code: 84733080
packaging height: 19.4
packaging lenght: 17.4
packaging width: 3.0
product colour: Black
quantity per pack: 1 pc(s)
warranty: 10.0
Preces apraksts

Connectors

  • Connector A: Italian Mains Plug (CEI23-16-VII)
  • Connector B: IEC C13 Right Angled
  • Housing Material: PVC
  • Pin Construction:
    • A: Brass
    • B: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH:
    • A: 35.5x49.6x13.5mm (1.4x1.95x0.53in)
    • B: 40x43.5x17mm (1.57x1.71x0.67in)

Cable Construction

  • Length: 2m (6.56ft)
  • Colour: Black
  • Conductor Material: Copper
  • Cable Material: H05-VVF 3G 1.0mm²
  • Number of Wires: 3
  • Wire Gauge: 1.0mm²
  • Jacket Diameter: 6.8mm (0.27in)
  • Jacket Material: PVC

Specifications

  • Rated Voltage and Current: 10A/250V
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: CE, RoHS, REACH, California Proposition 65

Purchasing Information

  • No.: 30346
  • EAN: 4002888303460
