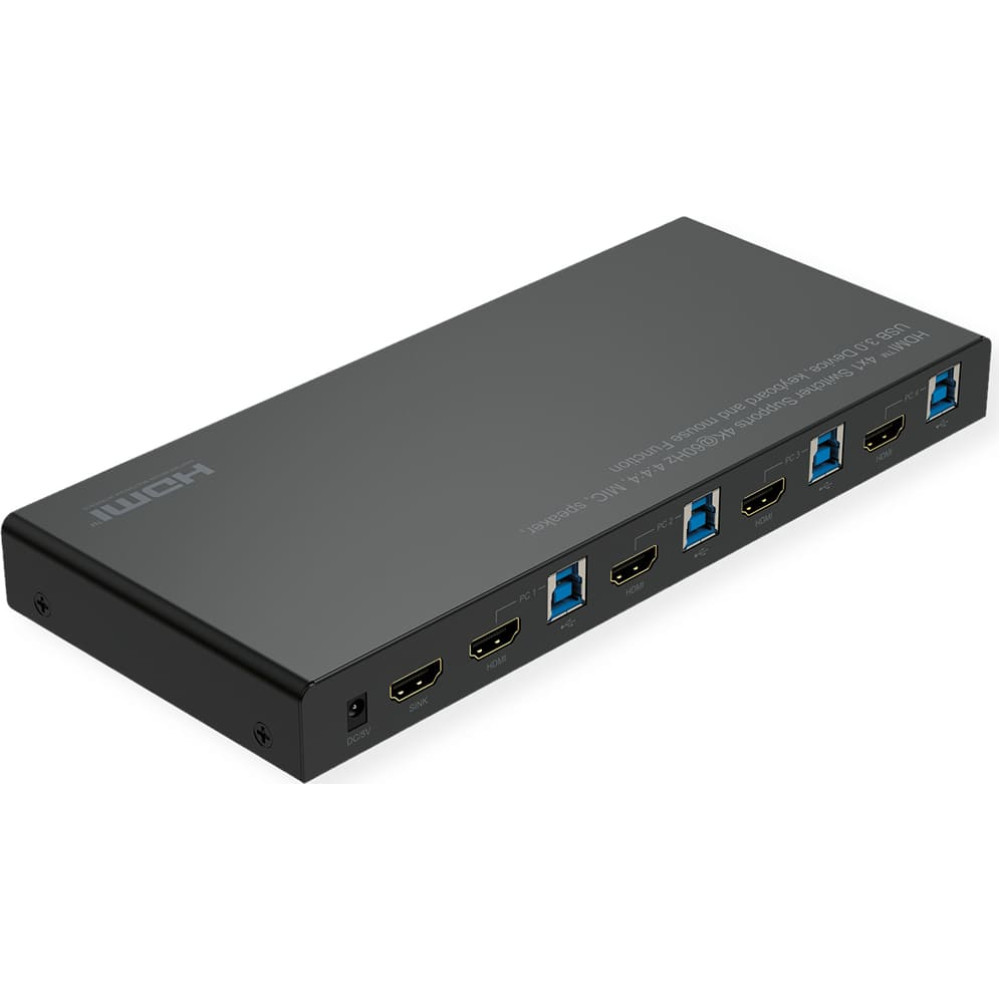

Home Switches / HUB KVM switches Roline KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub
Roline KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub

ROLINE

Roline KVM Switch, 4 PCs, HDMI 4K@60Hz, with 3 Port USB 3.2 Gen1 / USB 3.0 Hub

Product Code: 14.01.3428
Barcode 7630049635739

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
analogue console: monitor connection: 1x HDMI
analogue console: mouse/keyboard connection: 2x USB 2.0 Type A
audio: Stereo Audio
colour: black
colour (design profile): black
current catalog edition: 25.1
depth: 108 mm
depth of packaging (single piece): 530 mm
dimensions (hxwxd): 23 x 231 x 108 mm
gross weight: 8.4
height: 23 mm
height of packaging (single piece): 300 mm
hot plug compatible: yes
inputs: 4
integrated hub: yes
interface: HDMI
manufacturer: ROLINE
material (casing): Metal
max. resolution (nominal): 3840 x 2160 @60Hz
operating temperature max.: 50 °C
operating temperature min.: 0 °C
outputs: 1
package weight (single piece): 8.4 kg

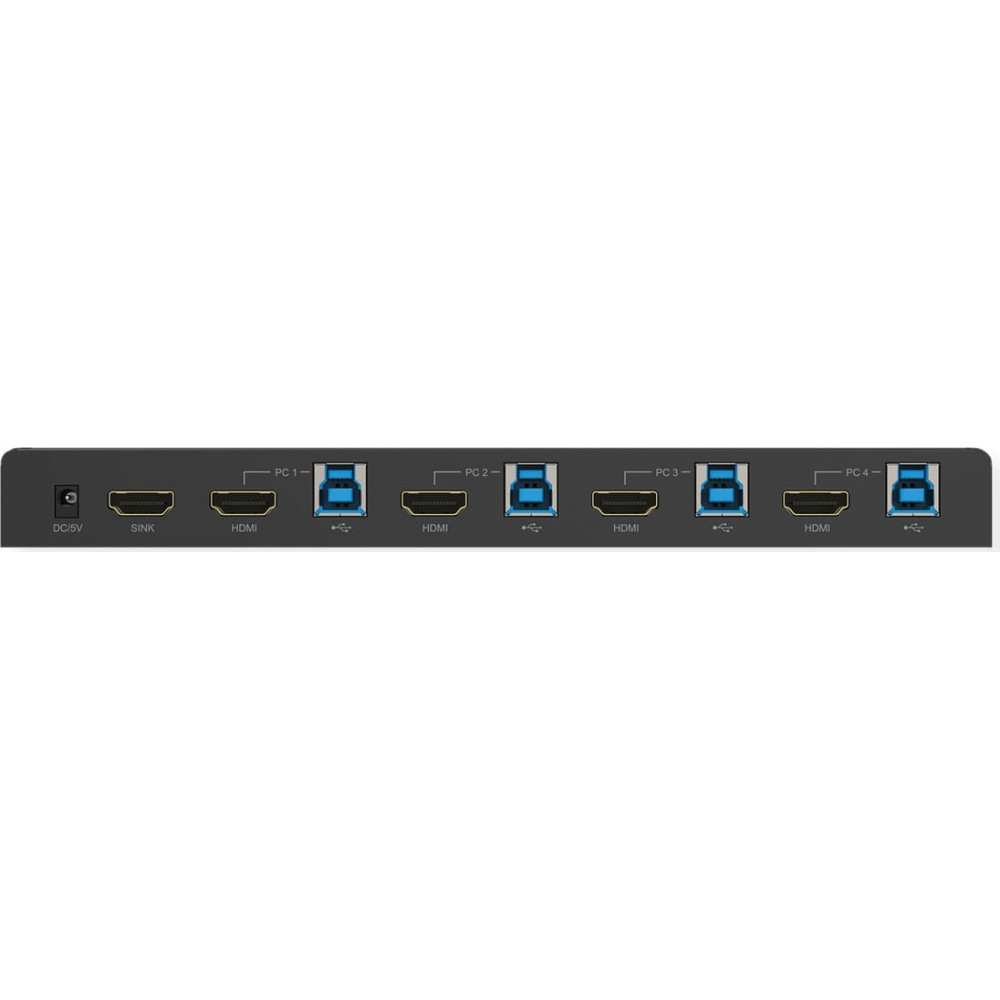

pc: monitor connection: 4x HDMI 4K@60Hz
pc: mouse/keyboard connection: 4x USB 3.2 Gen 1 / USB 3.0 Type B
power supply output: DC 5V 3A
power supply unit required: yes
print button on device: yes
product group: KVM switches / PC shares
product type: KVM-Switch, HDMI
quantity of pcs: 4
quantity of usb-hub ports: 3
scope of delivery: KVM Switch, Power Adapter, Operating Instructions
supported pc-systems: USB
switching over hot keys: Keyboard
weight: 495 g
width: 231 mm
width of packaging (single piece): 270 mm
Description

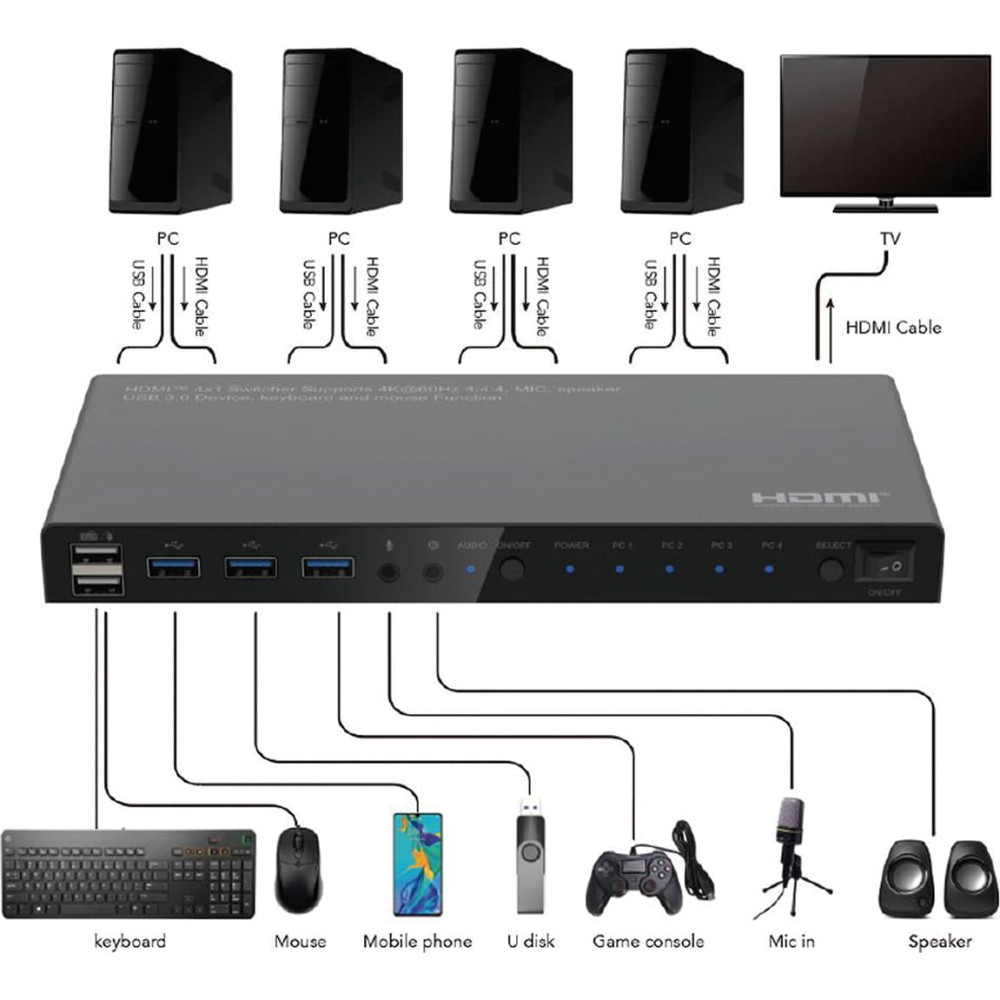

With this ROLINE 4-Port HDMI KVM Switch you can control four computers with only one mouse, one keyboard and one monitor - with a resolution of up to 3840x2160@60Hz! Moreover, it features a 3-Port USB 3.0 / USB 3.2 Gen 1 Hub to connect additional USB devices.

  • Switching between the PCs is done via hotkey on the keyboard or via push button on the KVM.
  • Max. Resolution: 3840x2160@60Hz
  • Four computers can be controlled
  • Integrated 3-Port USB 3.2 Gen1 / USB 3.0 Hub
  • Supports Mic In and Stereo Audio Out
  • Offers full 3D video format
  • Features Consumer Electronics Control and High Dynamic Range (HDR)
  • Solid metal housing
  • Supports Windows 7 / 8 / 10 / 11
