Home Adapters / Converters Industry, other Binder 99 0436 14 05 KAB.DEEL FEM 5P
Binder 99 0436 14 05 KAB.DEEL FEM 5P

Binder 99 0436 14 05 KAB.DEEL FEM 5P

Product Code: 99 0436 14 05
Barcode 8716065416008
Brand: BINDER

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
cable outlet: 4 - 6 mm
coding: A-coding
connector design: Axial
connector type: M12
contact material: CuSnZn
contacts: 5
country of origin: DE
degree of protection: IP67
gender: Female
housing material: PA
locking: Screwable
max.working temperature: 85 °C
min. working temperature: -40 °C
rated current: 4 A
rated voltage: 60 V
termination type: Screw
wire gauge: 18 AWG
wire gauge (mm²): 0.75 mm²
Description

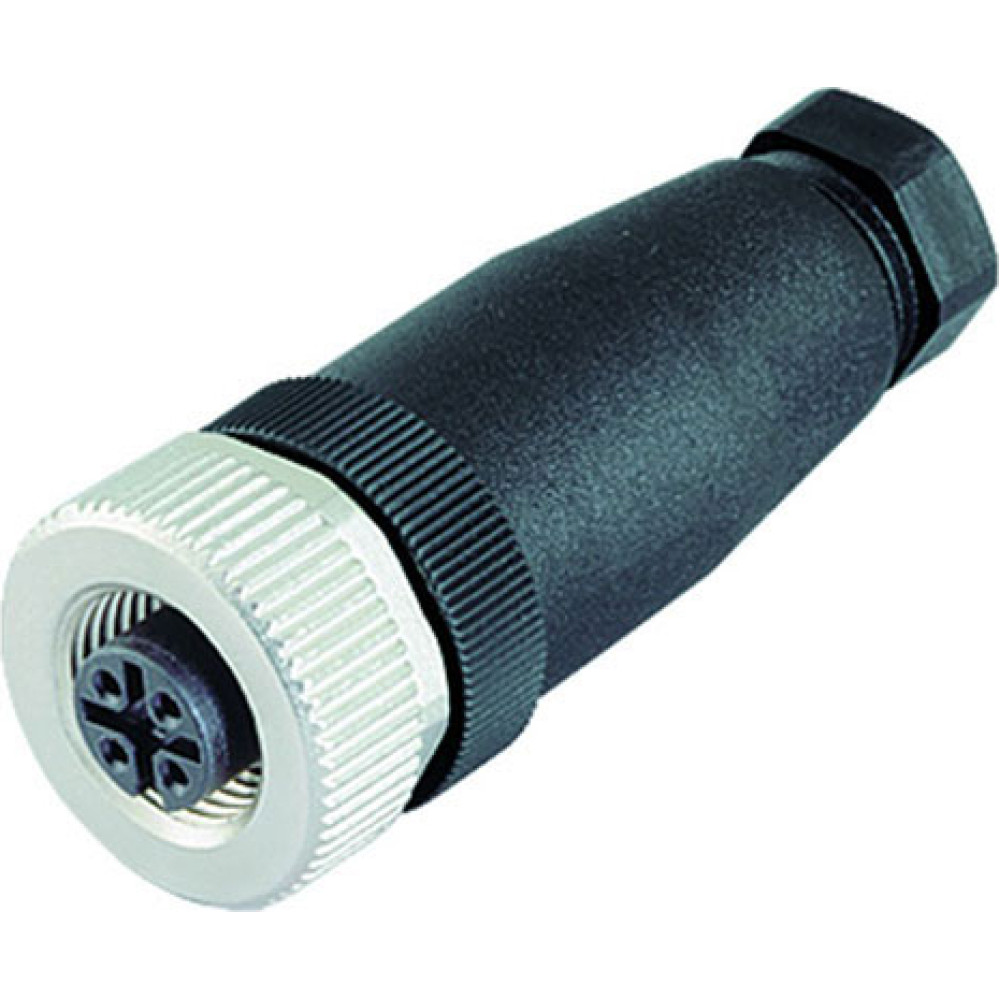

M12 connector female straight with A-coding 5 poles

Screw lock according to DIN EN 61076-2-101
Degree of protection: IP67
Screw connection for standard and flexible conductors with and without cable end sleeve.
Easy assembly

File - Datasheet 1
