Specifications

• AV Interface: DisplayPort to HDMI®, VGA
• Interface Standard: Displayport 1.2, HDMI® 1.4, VGA
• Supported Bandwidth: 10.8Gbps
• Maximum Input Resolution: 3840x2160@60Hz 4:2:0@8bpc
• Maximum  Output Resolution:
  • HDMI®: 3840x2160@60Hz 4:2:0@8bpc
  • VGA: 1920x1200@60Hz
• Chipset:
  • VGA : ANX9833
  • HDMI® : PS8339B
• HDCP Support: HDCP 1.4
• Supported Audio: Pass-through for HDMI®
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: Mini DisplayPort Male
• Output:
  • VGA Female
  • HDMI® Female

Physical Properties

• Dimensions (approx.) WxDxH:
  • 60x42x14mm (2.36x1.65x0.55in)
  • 11x18.7x9mm (0.43x0.74x0.35in) / mDP
• Cable Length: 150mm (5.91in)
• Housing Material: ABS
• Jacket Material: PVC
• Jacket Diameter: 4.5mm (0.18in)
• Minimum Bend Radius: 45mm (1.77in)
• Net Weight: 0.04kg (0.09lb)
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 10 - 85% RH (non-condensing)
• Colour: White

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.048kg (0.11lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS & REACH

Package Contents

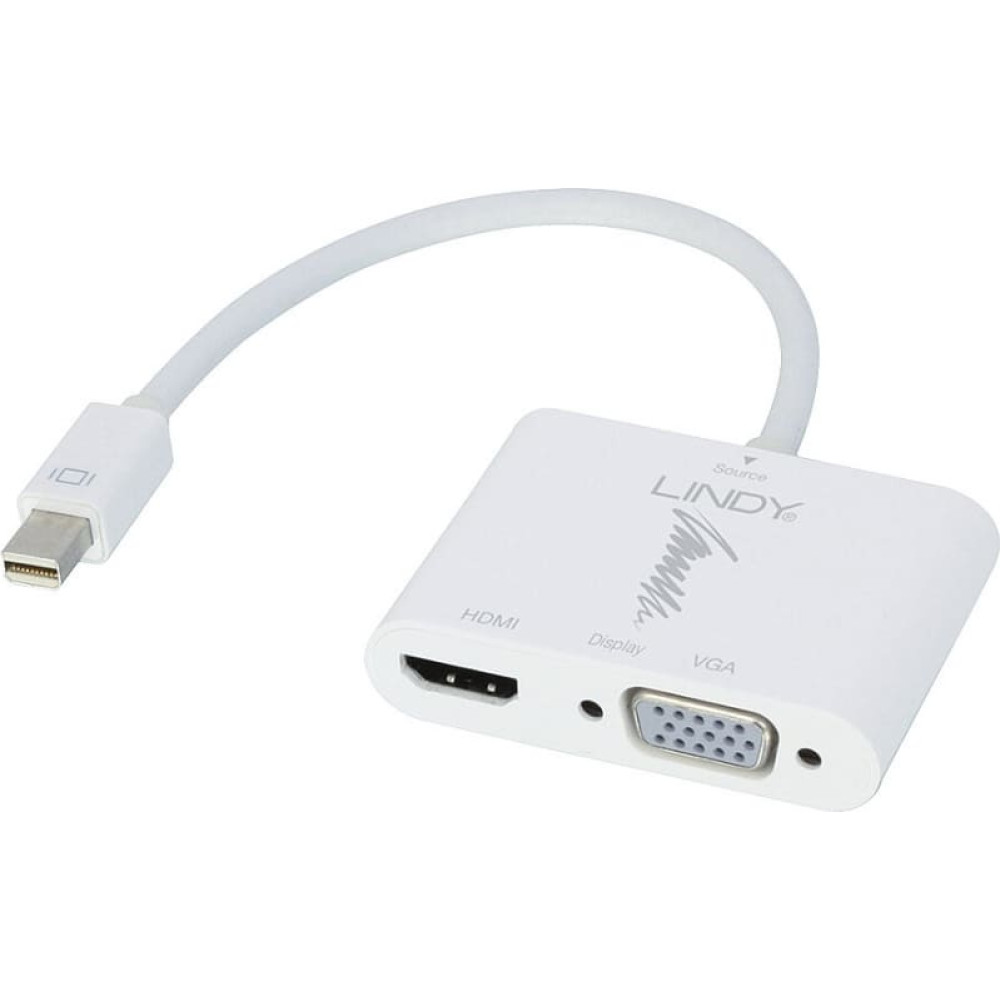

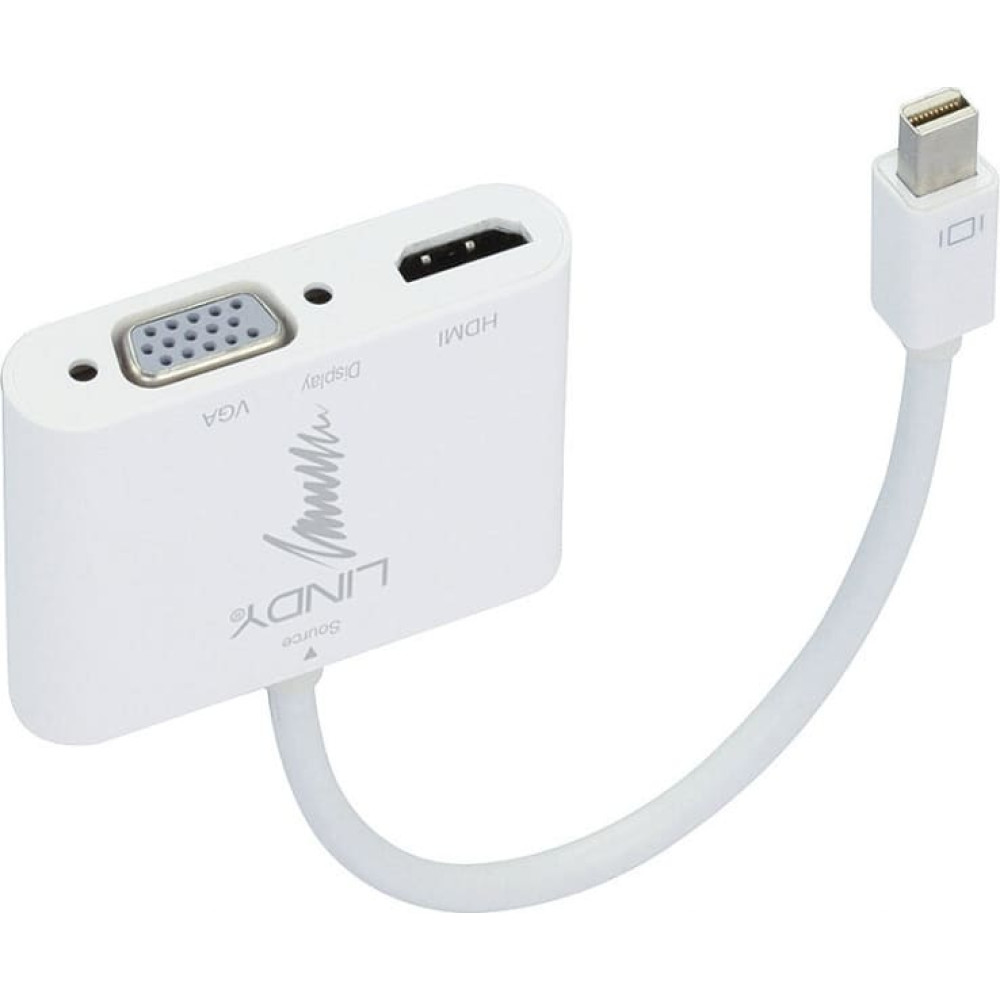

• Mini DisplayPort to HDMI® & VGA Converter

Purchasing Information

• No.: 41070
• EAN: 4002888410700
