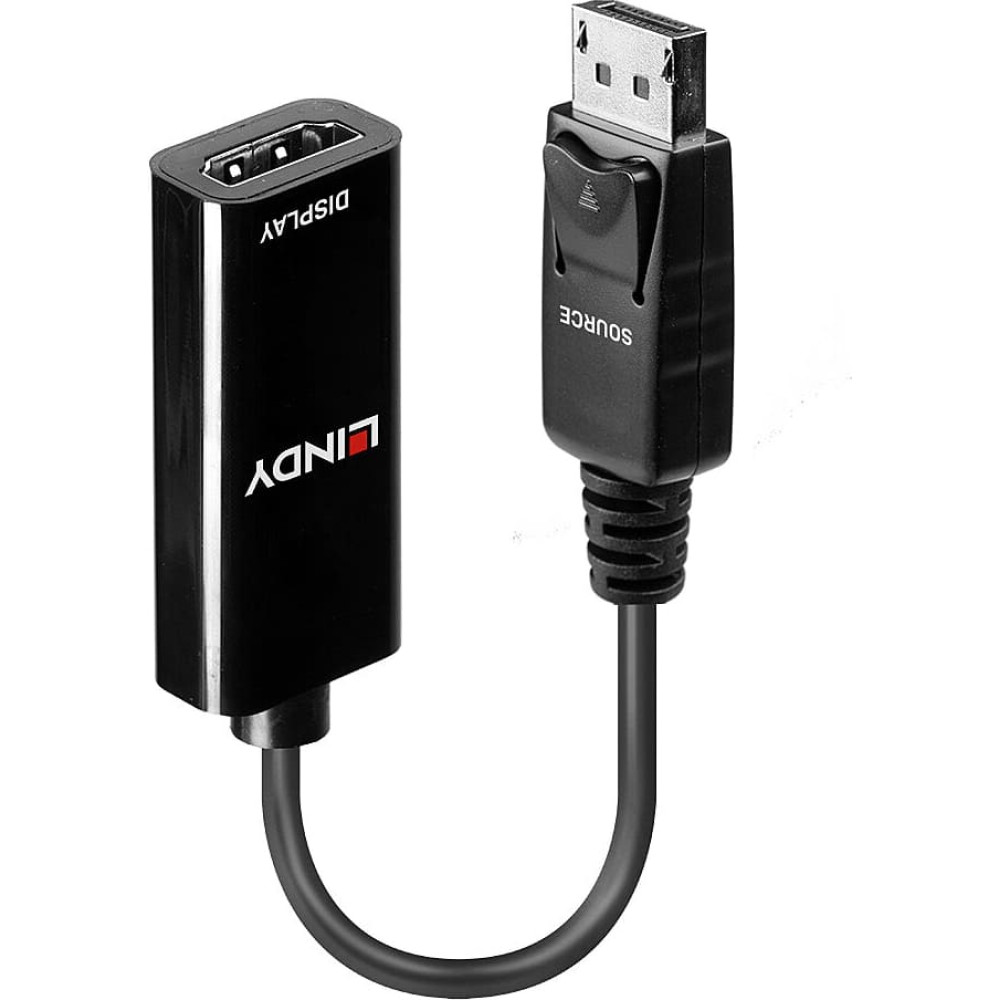

Lindy DisplayPort 1.2 to HDMI 4K Passive Adapter Converter

LINDY

Lindy DisplayPort 1.2 to HDMI 4K Passive Adapter Converter

Product Code: 41718
Barcode 4002888417181

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
bend radius (min): 6 cm
cable diameter: 5 mm
cable length: 0.15 m
ce doc: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/5a/cb/64/64cb5ac6ee832e6b7107467e/CE_41718-9_V2.pdf
ce docs: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/c6/5a/cb/64/64cb5ac6ee832e6b7107467e/CE_41718-9_V2.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6f/55/97/62/6297556fa7fecca6d5a65f29/CE_DoC_DE_41718_41719.pdf
certification: CE, UKCA, FCC, RoHS, REACH
chipset: PS8402A
connector 1: DisplayPort
connector 1 dimensions (wxdxh): 20.8 x 51 x 11.5 mm
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: HDMI
connector 2 dimensions (wxdxh): 20.1 x 44.5 x 9 mm
connector 2 form factor: Straight
connector 2 gender: Female
connector housing material: Acrylonitrile butadiene styrene (ABS)
converter type: Passive video converter
country of origin: CN
data transfer rate: 10.2 Gbit/s
displayport version: 1.2
gross weight: 0.03
harmonized system (hs) code: 84733080
hdcp: Yes
hdcp version: 1.4
hdmi version: 1.4
jacket material: Polyvinyl chloride (PVC)
maximum resolution: 3840 x 2160 pixels
net weight: 0.03
operating relative humidity (h-h): 10 - 85%
operating temperature (t-t): 0 - 80 °C
package depth: 20 mm
package height: 160 mm
package type: Polybag
package weight: 38 g
package width: 160 mm
packaging height: 19.40
packaging lenght: 17.40
packaging width: 1.00
product colour: Black
quantity per pack: 1 pc(s)
storage temperature (t-t): -20 - 70 °C
supported graphics resolutions: 3840 x 2160
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f4/67/97/62/629767f4d0ebe20d37a65f1e/41718_TDS_v1.pdf
warranty: 2
weight: 30 g
Description

Specifications

  • AV Interface: DisplayPort to HDMI®
  • Interface Standard: DisplayPort 1.2, HDMI® 1.4
  • Supported Bandwidth: 10.2Gbps
  • Maximum Input Resolution: 3840x2160@30Hz
  • Maximum  Output Resolution: 3840x2160@30Hz
  • Chipset: PS8402
  • HDCP Support: HDCP 1.4
  • Supported Audio: Pass-through
  • Separate Audio Ports: -
  • Special Features: -

Connectors

  • Input: DisplayPort Male
  • Output: HDMI® Type A Female

Physical Properties

  • Dimensions (approx.) WxDxH:
    • HDMI®: 20.8x45x12.1mm (0.82x1.77x0.48in)
    • DP: 20.2x36.6x11.4mm (0.8x1.44x0.45in)
  • Cable Length: 100mm (3.94in)
  • Housing Material: ABS
  • Jacket Material: PVC
  • Jacket Diameter: 5.5mm (0.22in)
  • Minimum Bend Radius: 33mm (1.3in)
  • Net Weight: 0.025kg (0.06lb)
  • Operating Temperature: -20°C - 40°C (-4°F - 104°F)
  • Storage Temperature: -40°C - 80°C (-40°F - 176°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Colour: Black

Miscellaneous

  • Packaging Type: Polybag
  • Packaging Dimensions: 160x180x20mm (6.3x7.09x0.79in)
  • Gross Weight: 0.031kg (0.07lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH

Package Contents

  • DisplayPort to HDMI® Converter

Purchasing Information

  • No.: 41718
  • EAN: 4002888417181



CE Doc: CE_DoC_DE_41718_41719.pdf
Tech Data Sheets: 41718_TDS_v1.pdf
