DIGITUS

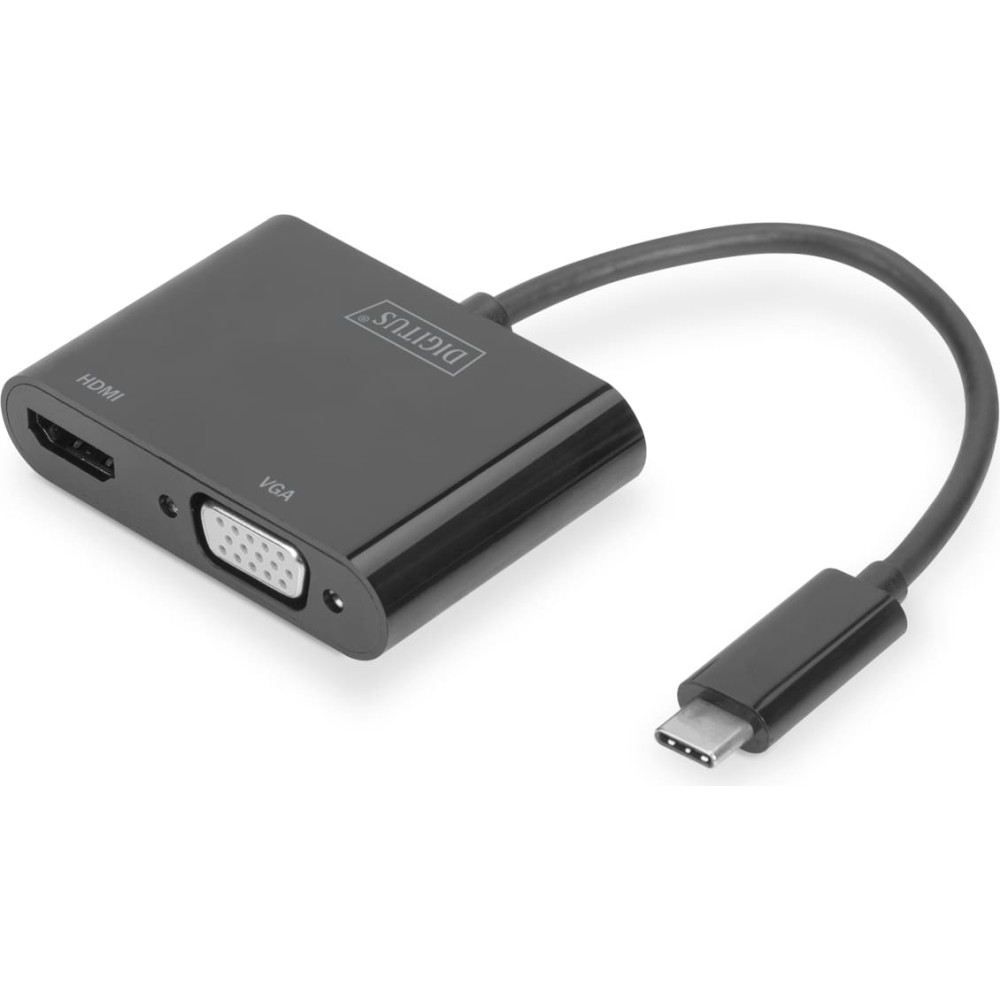

Digitus USB Type-C? - HDMI + VGA Adapter

Product Code: DA-70858
Barcode 4016032451525

To purchase this product you must be registered in our system.



Specification
country of origin: CN
height(cm): 2.3
length(cm): 23.5
volume(cm3): 405.375
weight(kg): 0.1
width(cm): 7.5

Description
USB Type C to HDMI + VGA Adapter 4K/30Hz / Full HD 1080p, black

Extends your USB-C™ device with two video interfaces (HDMI and VGA)

Connect a TV, monitor or projector with a HDMI or VGA port to your USB-C™ device
Extends your USB-C™ device with two video interfaces (HDMI and VGA)
Video signal playback on one TV/monitor, if two TVs/monitors are connected at the same time (priority: 1 HDMI, 2 VGA)
Supports Ultra HD (4K/30Hz) resolution (HDMI)
USB-C™ version: USB 3.1 (Gen. 1)
Corresponds to the VESA DisplayPort Alternate Mode

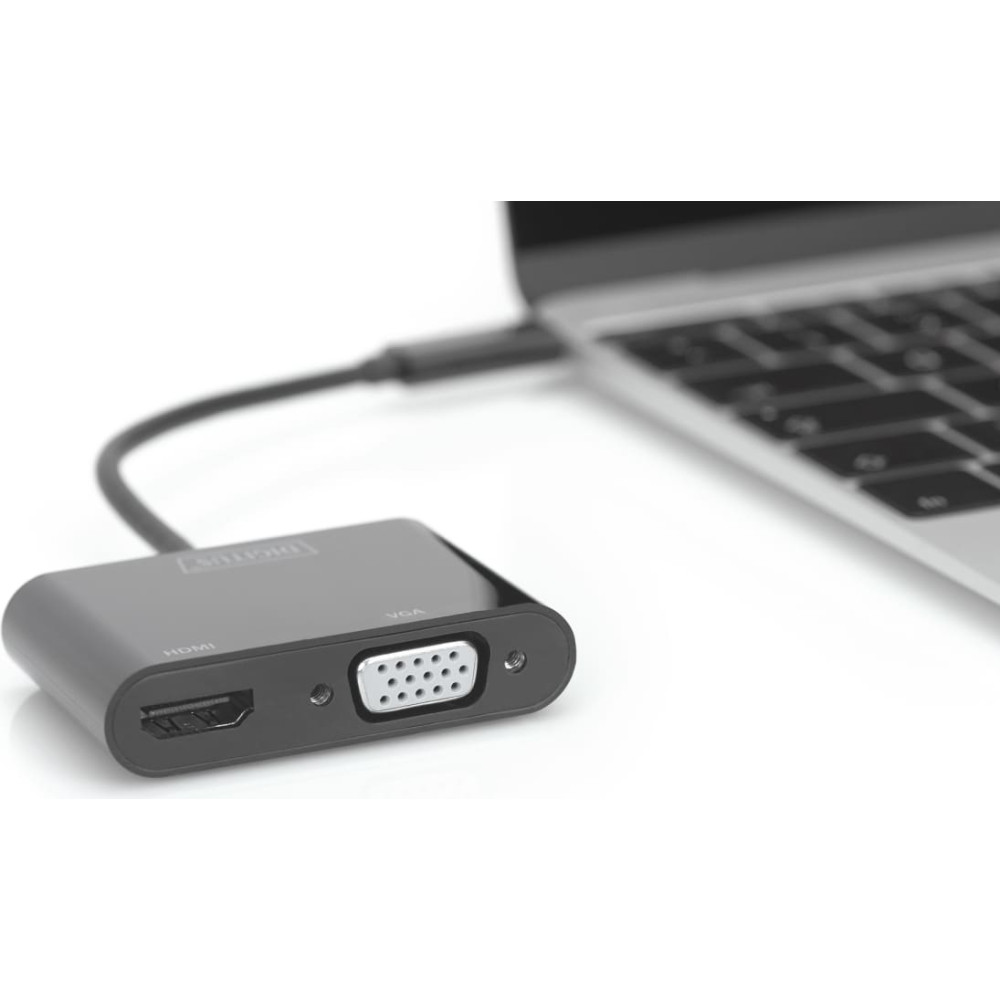

The USB Type-C™ - HDMI + VGA video adapter extends your USB-C™ device with two video ports (HDMI and VGA). Connect an additional TV set or monitor to your laptop or hold a presentation with a projector. The highest possible resolution is UHD (4K/30Hz). You can use an additional monitor provided two monitors are connected, with the HDMI port having the priority. The video adapter is suitable for all operating systems: Windows, Mac, Google Chrome.

HDTV Resolution max.: 4096 x 2160 Pixel, 30Hz
Housing: Aluminum
LAN connector (RJ45): false
Card reader: false
Number of audio ports: 0
Number of display ports: 2
Number of network ports: 0
Number of USB A ports: 0
Number of USB-C ports: 1
Number of video ports: 2
USB-C Products: true
Video connection ports: HDMI, VGA
Connection 1: USB-C™ plug
Connection 2: HDMI socket
Connection 3: VGA socket
Video signal playback on one TV/monitor, if two TVs/monitors are connected at the same time (priority: 1 HDMI, 2 VGA)
Extends your USB-C™ device with two video interfaces (HDMI and VGA)
1x HDMI (UHD, 4K/30Hz)
1 x VGA (Full HD)
USB-C™ version: USB 3.1 (Gen. 1)
Corresponds to the VESA DisplayPort Alternate Mode
Chipset: VL100/IT6562FN
Cable length: 11.0 cm
Color: Black
Dimensions: L 18.0 x W 4.0 x H 1.4 cm
Weight: 35 g
Not all USB-C™ ports support all functions of USB Type-C™ standards. Make sure that the USB-C™ port of your laptop supports the DisplayPort Alternate Mode (DP Alt-mode).
The video output capability depends on the graphics card of your laptop and the connected monitor. Some screens also have a limited resolution.

Package content:
USB Type-C™ - HDMI + VGA Adapter
QIG (quick installation guide)
