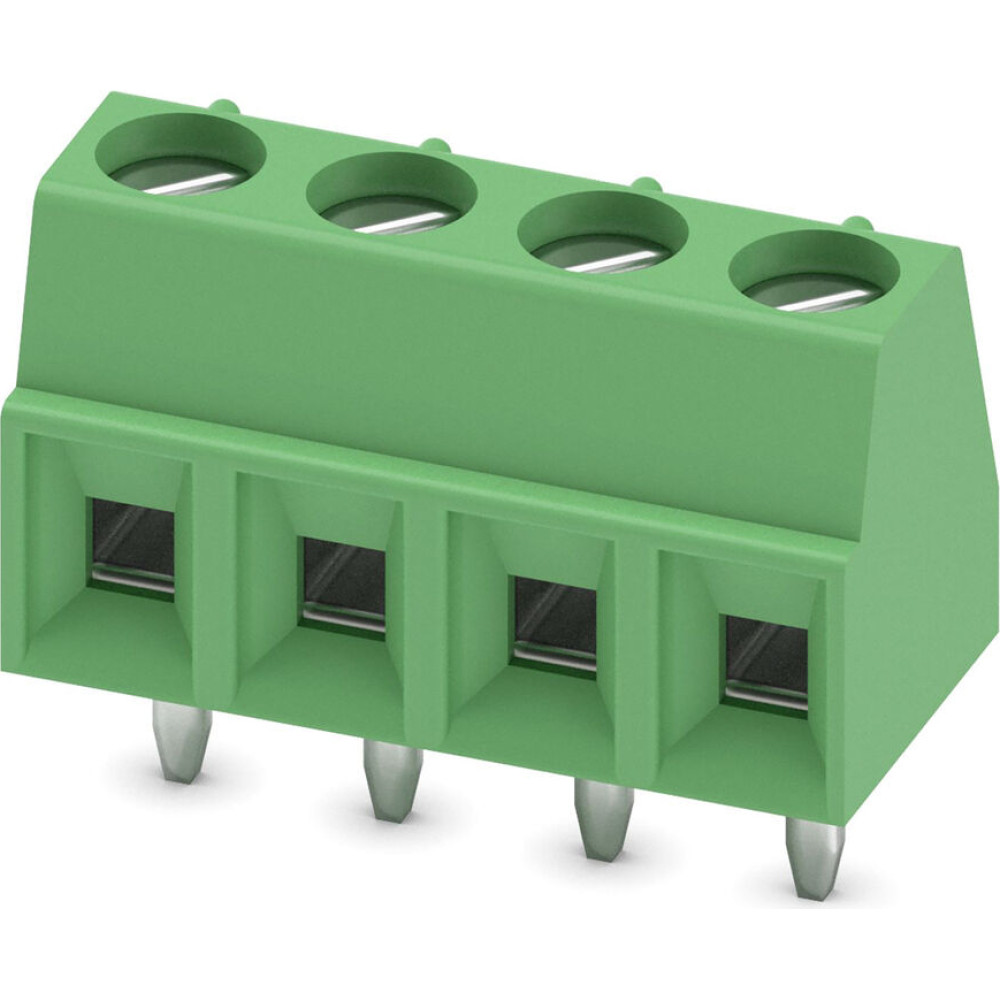

Phoenix MKDS 1/4-3,81

Product Code: 1727036

Barcode 4017918025502

Brand: PHOENIX

To purchase this product you must be registered in our system.

Specification

country of origin: DE

housing: PA Polyamide, vlamdovend UL 94 V0

max. current: 12,0 A

nom. voltage: 160 Vac

pin hole: 1,1 mm diameter

pitch: 3,81 mm

pluggable: No

screw thread: M2

temperature range: -40 ?C till 105 ?C

tests: VDE, UL, CSA & SEMKO

type: 4 pole MKDS 1/4-3,81

wire input (litze): 0,14 till 1,00 mm? AWG16

wire input (massive): 0,14 till 1,50 mm? AWG26

Description

4 pole MKDS 1/4-3.81 PCB wire to board print clamp with 3.81mm raster

File - Datasheet 1
