Lindy 3 Port TosLink (Optical) Digital Audio Switch

LINDY

Lindy 3 Port TosLink (Optical) Digital Audio Switch

Product Code: 70482
Barcode 4002888704823

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: CN
gross weight: 0.12
manuals: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/95/67/97/62/62976795999c8d635dc13e01/LINDY_70482_MAN_12_20.pdf
net weight: 0.08
packaging height: 2.40
packaging lenght: 13.30
packaging width: 10.50
tech data sheets: https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f0/67/97/62/629767f0d0ebe20d37a65e9f/70482_TDS_v1.pdf
warranty: 2
Description

Specifications

  • AV Interface: TosLink (Optical)
  • Interface Standard: -
  • Supports Bandwidth: -
  • Maximum Resolution: -
  • HDCP Support: -
  • Supported Audio: LPCM2.0 / DTS / Dolby Digital
  • Separate Audio Ports: -
  • IR Support: Yes
  • CEC Support: -
  • Serial Interface: -
  • Special Features: Remote Control

Connectors

  • Input: 3 x TosLink (Female)
  • Output: 1 x TosLink (Female)
  • Control: 3.5mm (Female)
  • Power : Mini-USB

Physical Properties

  • Dimensions (approx.) WxDxH: 54x60x20mm (2.13x2.36x0.79in)
  • Housing Material: Plastic
  • Net Weight: 0.084kg (0.19lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)
  • Humidity: 5-90% RH (Non Condensing)
  • Power Requirements: 2.5W
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 133x105x24mm (5.24x4.13x0.94in)
  • Gross Weight: 0.12kg (0.26lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Content

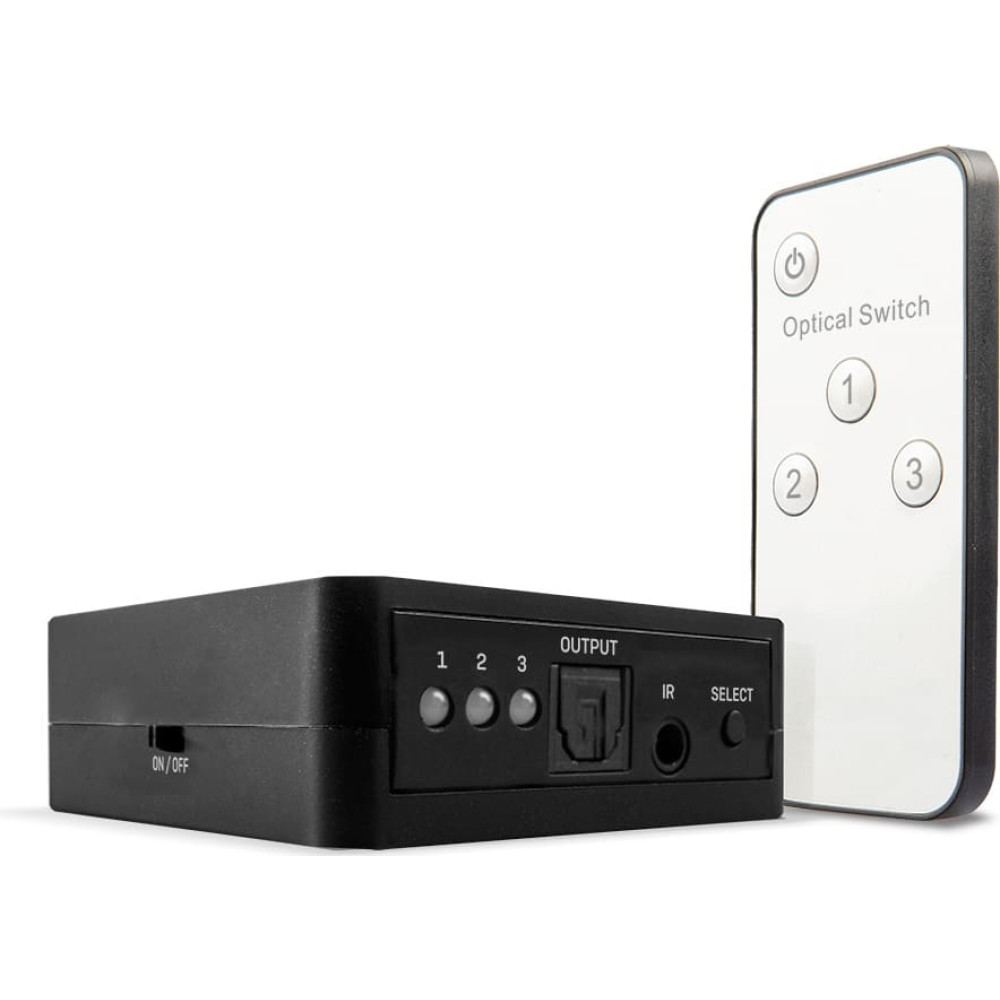

  • 3 Port TosLink (Optical) Digital Audio Switch
  • USB Type A to Mini-B Cable, 0.76m
  • 3.5mm IR Receiver Cable, 0.6m
  • IR Remote Control with CR2025 Battery
  • Lindy Manual

Purchasing Information

  • No.: 70482
  • EAN: 4002888704823



Tech Data Sheets: 70482_TDS_v1.pdf
Manuals: LINDY_70482_MAN_12_20.pdf
