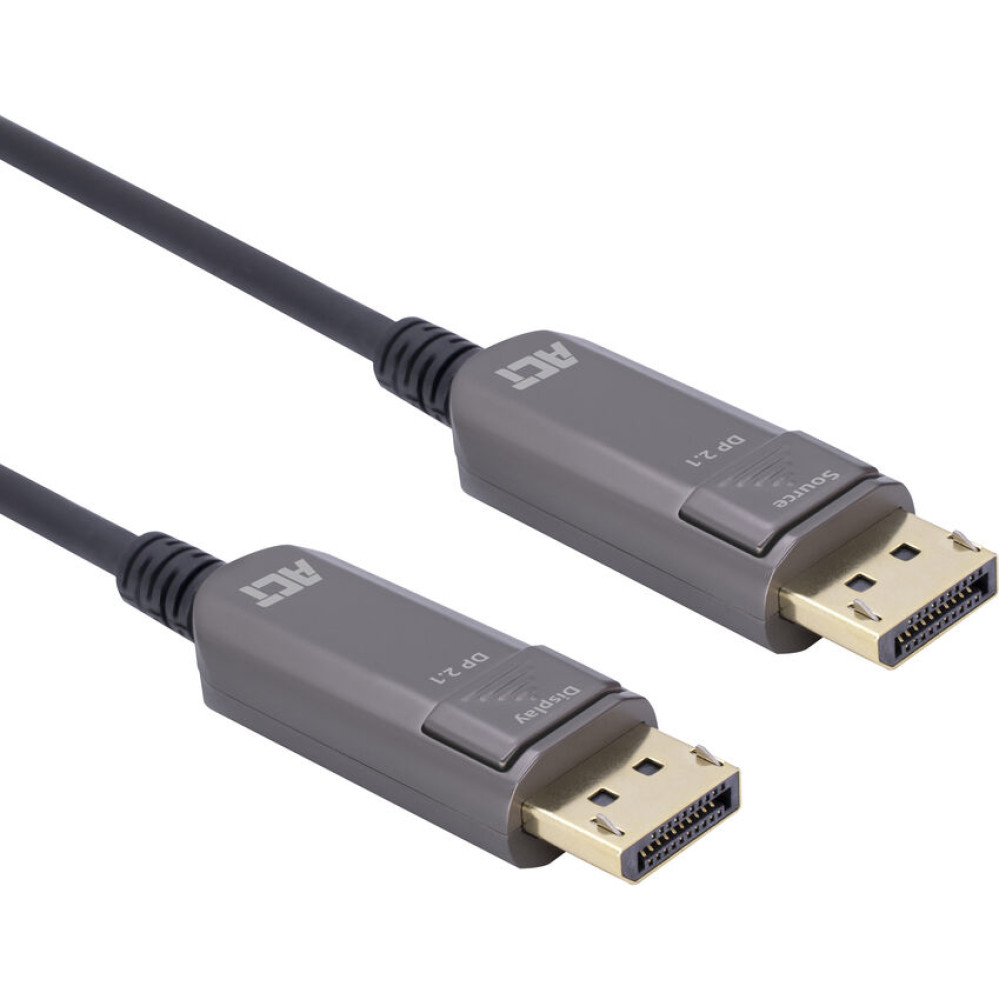

ACT DISPLAYPORT AOC LSZH 30.00M
To purchase this product you must be registered in our system.
Specification
4k compatible: Yes
8k compatible: Yes
cable colour: Black
cable length: 30 m
chroma sampling: 4:4:4
connector a: DisplayPort male (x1)
connector b: DisplayPort male (x1)
connector type: DisplayPort
country of origin: CN
displayport version: DisplayPort 2.1
hoods: Metal
locking: Snap-in
max. resolution @ 120hz: 7680 x 4320
max. resolution @ 144hz: 3840 x 2160
max. resolution @ 60hz: 10K
maximum bend radius: 52 mm
outer diameter: 5.2 mm
outer jacket: LSZH
power connected: No
shielding type: Braid, Aluminum Mylar
supported features: HDCP
total bandwidth: 40 Gb/s
video signal: DisplayPort
Description
| The ACT AOC 8K DisplayPort 2.1 DP40 UHBR10 cable is made of copper and fiber to connect different devices over long distances up to 100 meters without the loss of data. The Active Optical Cable has a bandwidth of 40Gbps 4:4:4 to handle the resolution of 7680x4320 (8K) @ 60Hz. Additionally, the cable supports: HDR, HDCP 2.2, EDID, Multi-channel audio, Dolby True HD and DTS-HD Master Audio. AOC: copper and glass for longer distances and the best video and audio quality The AOC (Active Optical Cable) cable is made of copper and fiber for transferring 8K @ 60Hz over long distances up to 100m without data loss. It has a bandwidth of 40Gbps 4:4:4, also called UHBR10 DP 40. The cable has a Kevlar protected fiber, an aluminium foiled shielding and is suitable for sensitive applications due to low RFI/EMI. The cable is supplied in a box. No additional power is needed. The cable supports 3.3V over the full length. Resolution of 8K @ 60Hz This 8K DisplayPort cable supports a resolution of 7680x4320 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio. LSZH The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is damaged due to fire or short circuit. Additional features It is important that the cable is connected correctly. The ACT AOC DisplayPort 2.1 cable is marked to ensure easy identification of the source and display connector. The snap-in connector ensures a reliable connection without the risk of accidental disconnection. User scenarios Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The 8K DisplayPort 2.1 DP40 UHBR10 cable is used to connect imaging equipment to large displays. The low RFI/EMI minimizes interference with sensitive medical devices. Nautical applications: The vessel's bridge uses high-definition displays for navigation, radar, and other critical systems. Facilitates connections between equipment located in different parts of the vessel without signal loss. The Kevlar protected fiber offers durability and reliability in harsh marine environments. Data center applications: Data centers require high-resolution displays for monitoring system performance and security. The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire. Educational applications in lecture halls and auditoriums: Provides clear and detailed visuals for large audiences. Long Distance Capability: Enables connection from the control room to displays across large spaces. Corporate applications in meeting rooms and conference centers: Executive meeting rooms and conference centers require high-definition displays for video conferencing, presentations, and collaborative work. Cable length: 30 meters DisplayPort 2.1 DP40 UHBR10 Active Optical Cable for 8K@60Hz over long distances without data loss Hybrid fiber/copper design requires no extra power; supports 3.3V over the full length Low Smoke Zero Halogen (LSZH) cable jacket reduces the risk of high concentrations of toxic gases in case of cable damage due to fire or short circuit Suitable for sensitive applications due to low RFI / EMI Supports HDR / HDCP 2.2 / EDID / Multi-channel audio / Dolby True HD / DTS-HD Master Audio Available up to 100 meters File - Datasheet 1 |
