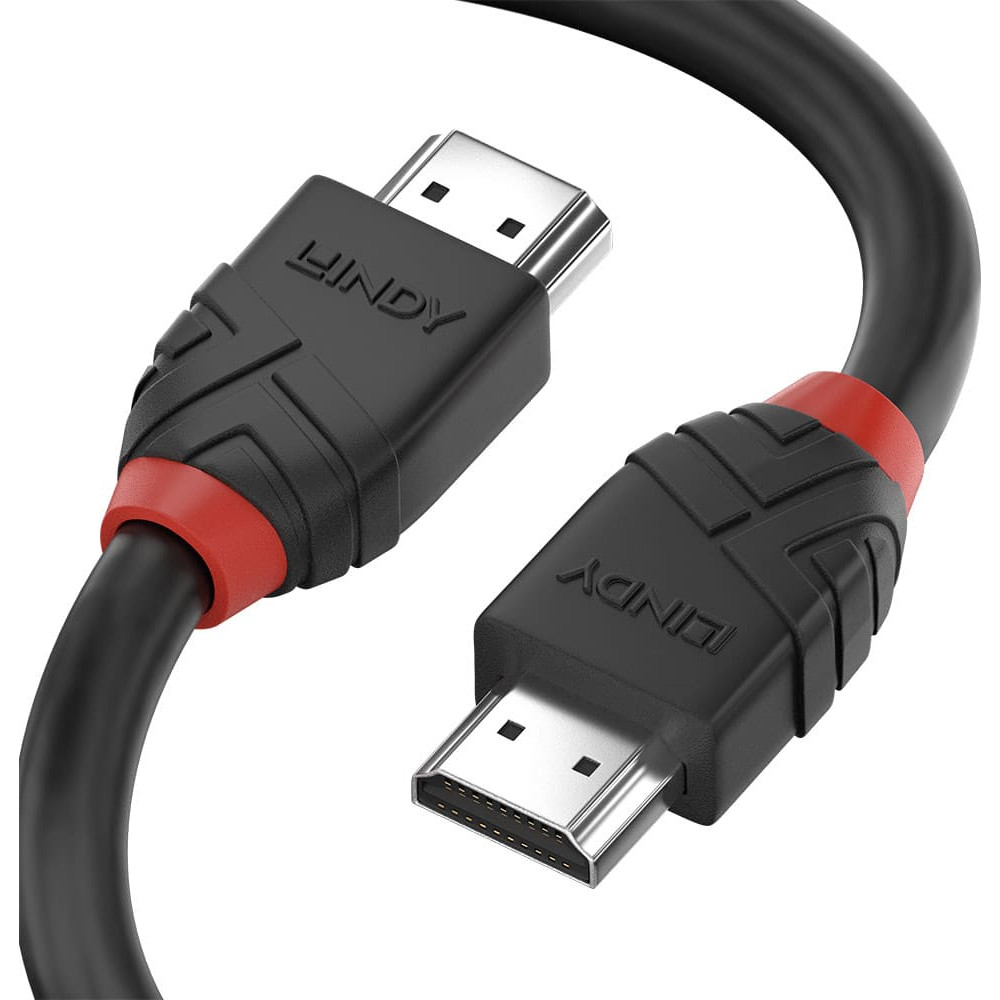

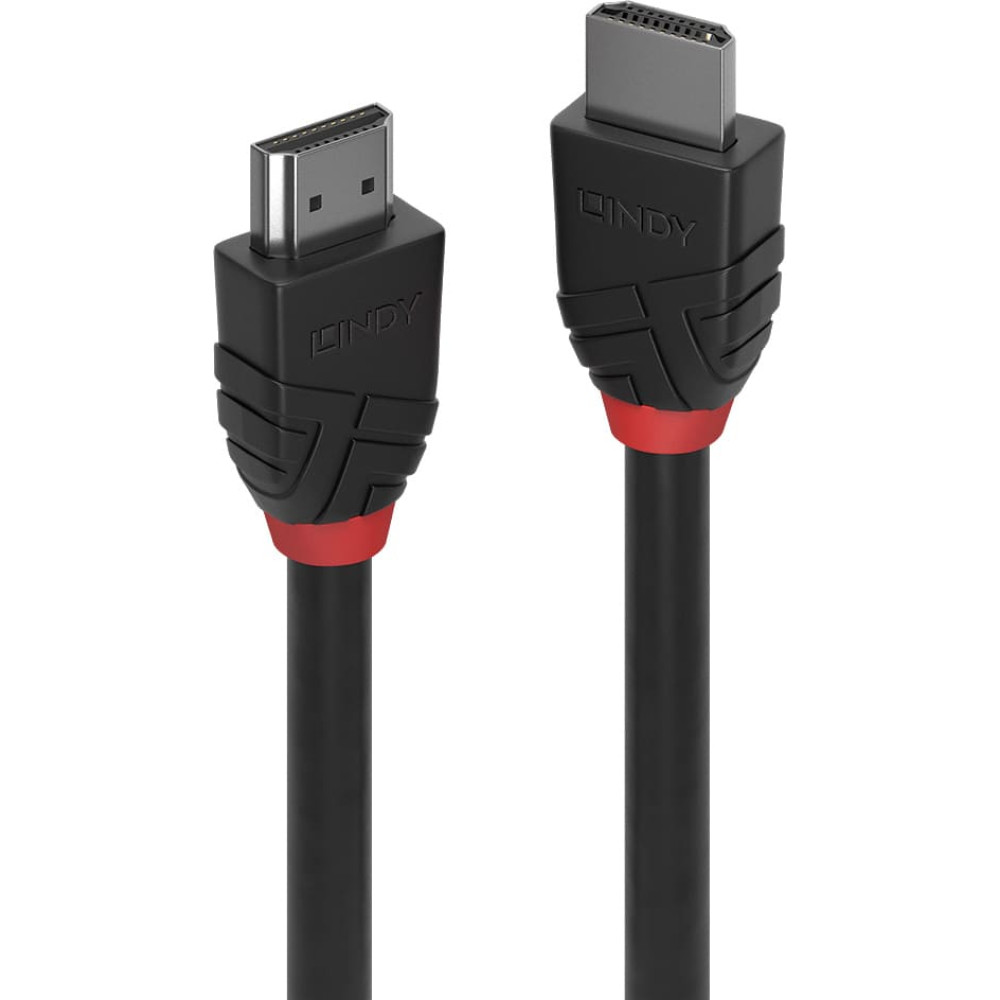

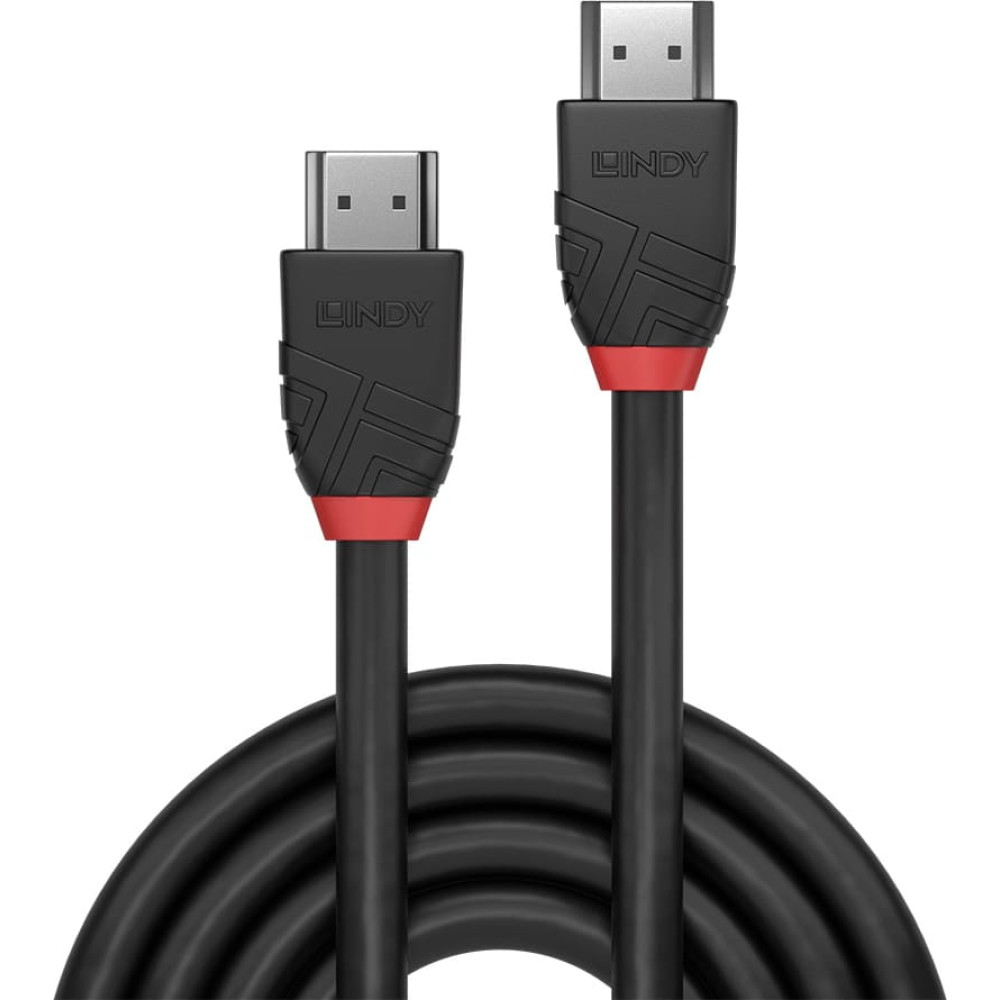

Home Cables HDMI Lindy 7.5m 8K60Hz HDMI Cable, Black Line

Lindy 7.5m 8K60Hz HDMI Cable, Black Line

Product Code: 37255

Barcode 4002888372558

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

awg wire size: 28

bending radius (min): 7 cm

cable diameter: 7 mm

cable jacket material: Polyvinyl chloride (PVC)

cable length: 7.5 m

cable material: Copper-clad steel (CCS)

cable type: Round cable

certification: RoHS & REACH UL

colour sampling: 4:4:4

compliance certificates: REACH, RoHS

connector 1: HDMI Type A (Standard)

connector 1 form factor: Straight

connector 1 gender: Male

connector 2: HDMI Type A (Standard)

connector 2 form factor: Straight

connector 2 gender: Male

connector contacts plating: Gold

connector housing material: Polyvinyl chloride (PVC)

connector material: Nickel

country of origin: CN

data transfer rate: 48 Gbit/s

dolby technologies: DTS:X, Dolby Atmos

gross weight: 0.05

hdmi cable type: High Speed HDMI cable

hdmi version: 2.1

maximum refresh rate: 60 Hz

net weight: 0.04

nominal attenuation: 35GHz＞-5.5dB(HBR1), 2.7GHz＞-8.5dB(HBR2), 4.05GHz＞-11.0dB(HBR3)

operating temperature (t-t): -10 - 80 °C

package depth: 34.2 mm

package height: 10.9 mm

package type: Polybag

package width: 20 mm

packaging height: 19.40

packaging lenght: 17.40

packaging width: 1.00

product colour: Black

quantity per pack: 1 pc(s)

shield material: Aluminium

storage temperature (t-t): -20 - 85 °C

supported graphics resolutions: 7680 x 4320

sustainability compliance: Yes

variation of: 36770

warranty: 10

warranty period: 10 year(s)

Description

Connectors

Connector A: HDMI® Type A Male
Connector B: HDMI® Type A Male
Housing material: PVC
Connector plating: Nickel Plating
Pin construction: Copper Alloy
Pin Plating: Gold Plated
Dimensions (WxDxH): 20 x 34.2 x 10.9mm (0.79 x 1.35 x 0.43in)

Cable Construction

Length: 7.5m (24.61ft)
Standard: Ultra High Speed HDMI®
Colour: Black
Type: Round
Jacket diameter: 7mm (0.27in)
Jacket material: PVC
Conductor material: Copper Coated Steel
Conductor gauge: 28AWG
Shielding: Aluminum Foil

Technical Information

Supported bandwidth: 48Gbps
Maximum resolution: 7680x4320@60Hz 4:4:4,10bit
Nominal attenuation:
- 35GHz>-5.5dB
- 2.7GHz>-8.5dB
- 4.05GHz>-11.0dB
Minimum bend radius: 70mm
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS & REACH UL

Purchasing Information

No.: 37255
EAN: 4002888372558

This product is also available in other lengths

36770 - 0.5m (1.64ft)
36771 - 1m (3.28ft)
36772 - 2m (6.56ft)
36773 - 3m (9.84ft)
36774 - 5m (16.44ft)
37255 - 7.5m (24.61ft)
37256 - 10m (32.81ft)
