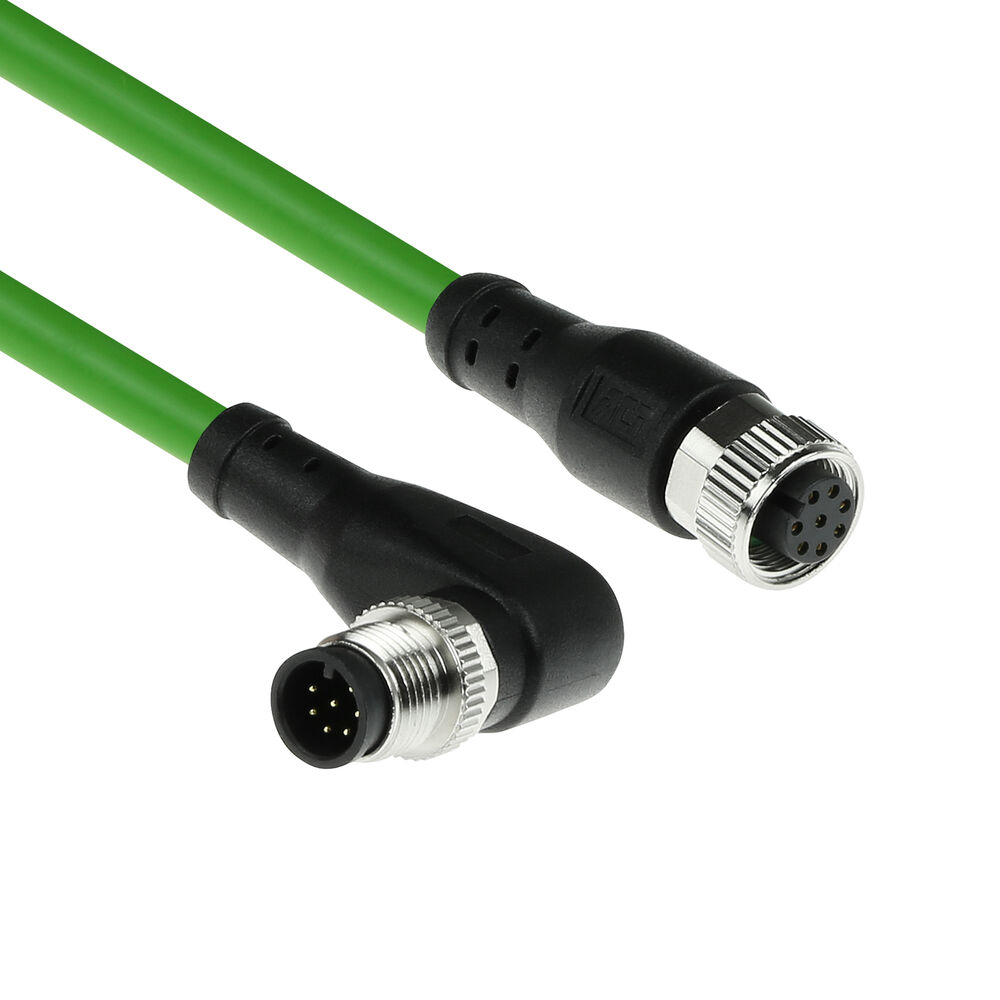

ACT M12A-8PMRA-M12A-8PF SH 1.50M
To purchase this product you must be registered in our system.
Specification
approval: UL, UL94-V0
cable colour: Green
cable length: 1.5 m
coding: A-coding
colour number: RAL 6018
conductor material: Copper
connector a: M12 8-pin male (x1)
connector b: M12 8-pin female (x1)
connector design: Angled
connector type: M12
contact material: Brass
contact plating: Gold plated
contacts: 8
country of origin: TW
degree of protection: IP67
housing colour: Black
locking: Screwable
max.working temperature: 105 °C
min. working temperature: -40 °C
outer jacket: TPE
shielded: Yes
shielding type: Aluminum Mylar, Braid
wire gauge: 24 AWG
Description
| The ACT Industrial sensor cables (actor cables) are provided with a TPE (Thermo Plastic Elastomer) sheath and are therefore highly resistant to mechanical loads such as movements in a chain. The connectors are overmoulded TPE and degree of protection is IP67.
Ultraflex cable, each individual core consists of 41 strands of copper that together form a diameter of AWG24. This makes the cable more flexible than, for example, a standard AWG24/7 patch cable.
Stranded conductors are build up of uninsulated thin strands of wire twisted together.
How greater the number of strands in a stranded conductor, the greater the flexibility of the wire.
Flexible TPE sheath UL Full copper Ultraflex AWG24 shielded cable IP67 A-Coded File - Datasheet 1 |
