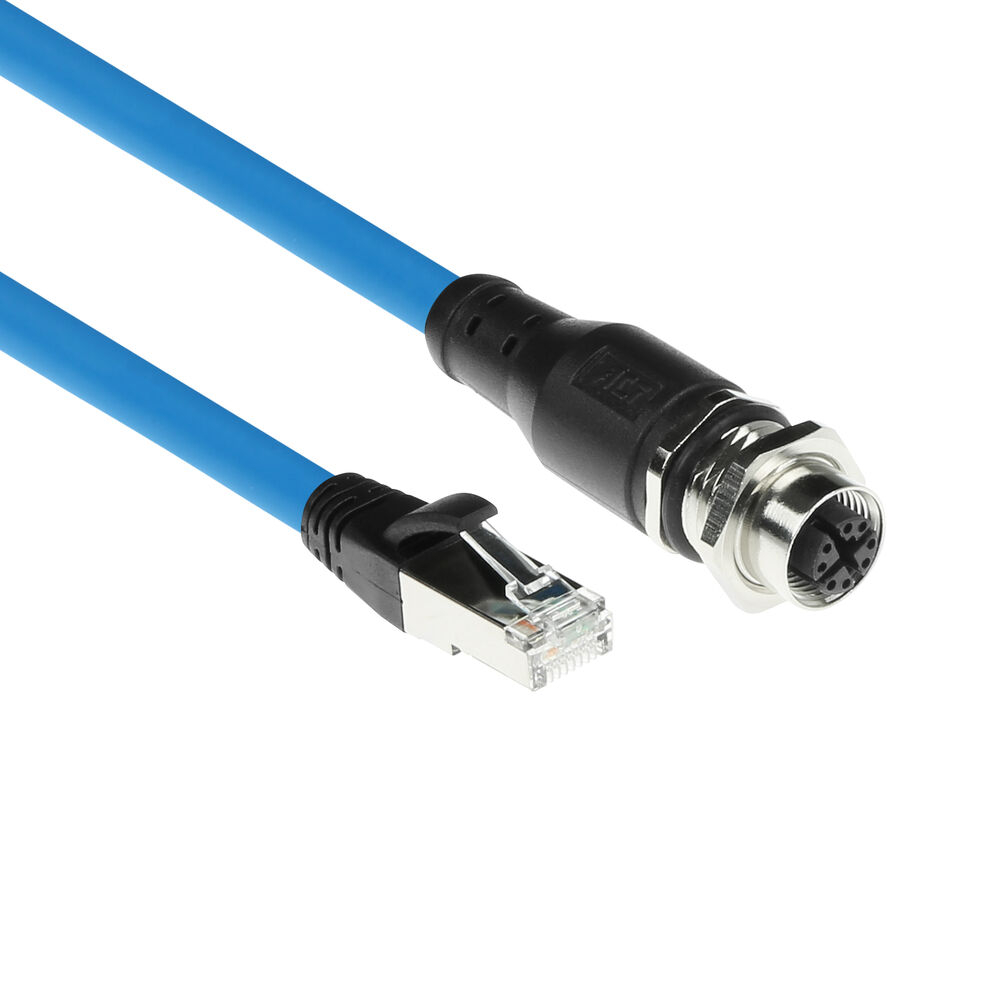

ACT M12X-8PFCH-RJ45 SH 1.50M

Product Code: SC4950

Barcode 8716065541441

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

approval: UL, UL94-V0

cable colour: Blue

cable length: 1.5 m

coding: X-coding

colour number: RAL 5012

conductor material: Copper

connector b: RJ45 male (x1)

connector design: Axial

connector type: M12, RJ45

contact material: Brass

contact plating: Gold plated

contacts: 8

country of origin: TW

degree of protection: IP67

locking: Screwable

max.working temperature: 105 °C

min. working temperature: -40 °C

outer jacket: TPE

rated voltage: 30 V

shielded: Yes

shielding type: SF/UTP, Aluminum Mylar

wire gauge: 26 AWG

Description

The ACT Industrial sensor cables (actor cables) are provided with a TPE (Thermo Plastic Elastomer) sheath and are therefore highly resistant to mechanical loads such as movements in a chain. The connectors are overmoulded TPE and degree of protection is IP67. Superflex SF/UTP cable, each individual core consists of 28 strands of copper that together form a diameter of AWG26. This makes the cable more flexible than, for example, a standard AWG24/7 patch cable. Stranded conductors are build up of uninsulated thin strands of wire twisted together. How greater the number of strands in a stranded conductor, the greater the flexibility of the wire.

Flexible TPE sheath
UL
Full copper Superflex AWG26 shielded cable
IP67
X-Coded
