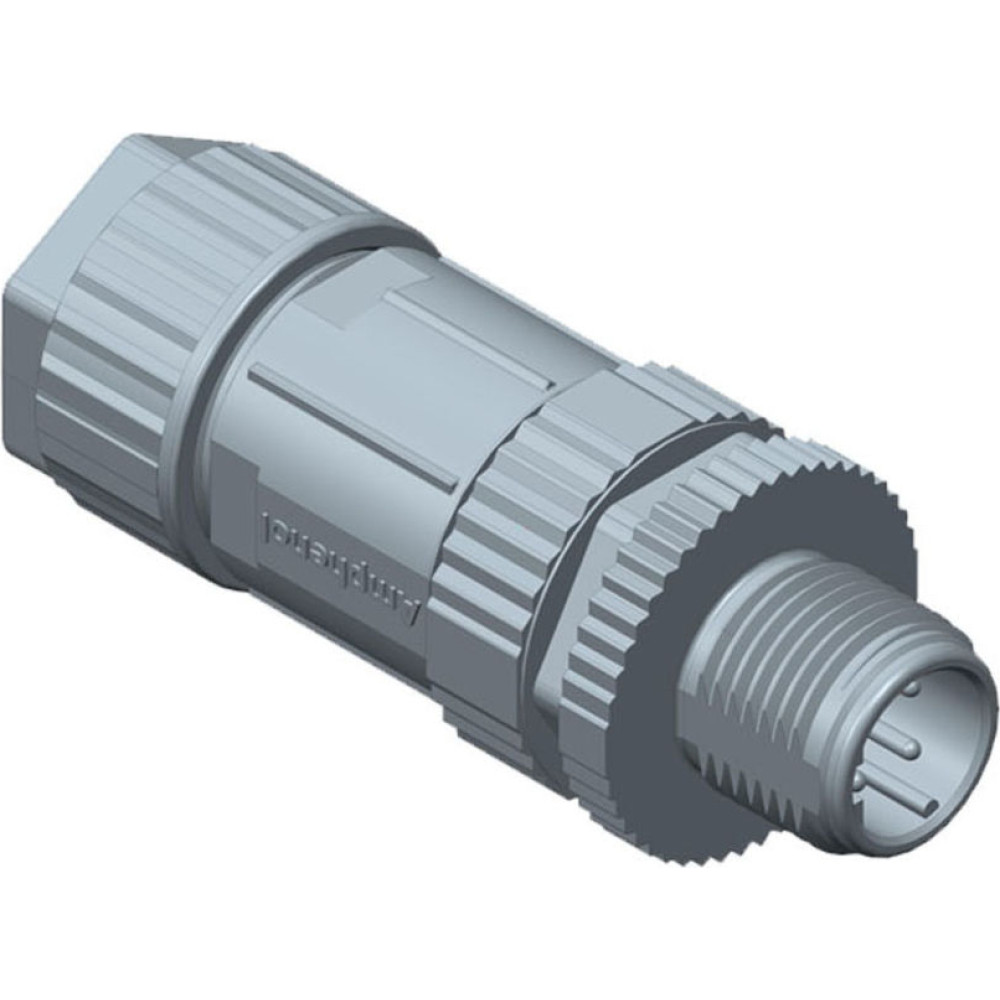

Amphenol SENS 5P CABLE CO MA M12 L MOLD

Product Code: M12L-05BMMM-SL8H01

Barcode 8716065424621

Brand: AMPHENOL

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

coding: L-coding

connector design: Axial

connector type: M12

contact material: Copper alloy

contact plating: Gold plated

contacts: 5

country of origin: TW

degree of protection: IP68

gender: Male

housing material: Thermoplastic

locking: Screwable

max.working temperature: 80 °C

min. working temperature: -20 °C

rated current: 16 A

rated voltage: 630 V

Description

M series is designed typically for industrial process measurement and control according to IEC standard, offering secure and reliable data as well as superior power transmission performance. Besides the industrial applications, M series is also an ideal solution for a compact design where the environmental protection and stable connection are required. Amphenol LTW provides a comprehensive product range of M series, including M5 / M8 / Guided M8 / M10.5 / M12 / 7/8" and M23, available in receptacle, overmolded cable, field installable and accessory.
