ACT C6 U/UTP SOLID LSZH DCA 305M

Product Code: XS6003

Barcode 8716065453140

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

bandwidth: 250 MHz

cable colour: Purple

category: CAT6

colour number: RAL 4005

conductor material: Copper

conductor type: Solid

country of origin: CN

cpr compatible: Yes

cpr euroclass: Dca

length per packaging: 305 m

max.working temperature: 60 °C

min. working temperature: -15 °C

outer diameter: 5.1 mm

outer jacket: LSZH

shielding type: U/UTP

wire gauge: 24 AWG

wire gauge (mm²): 0.205 mm²

Description

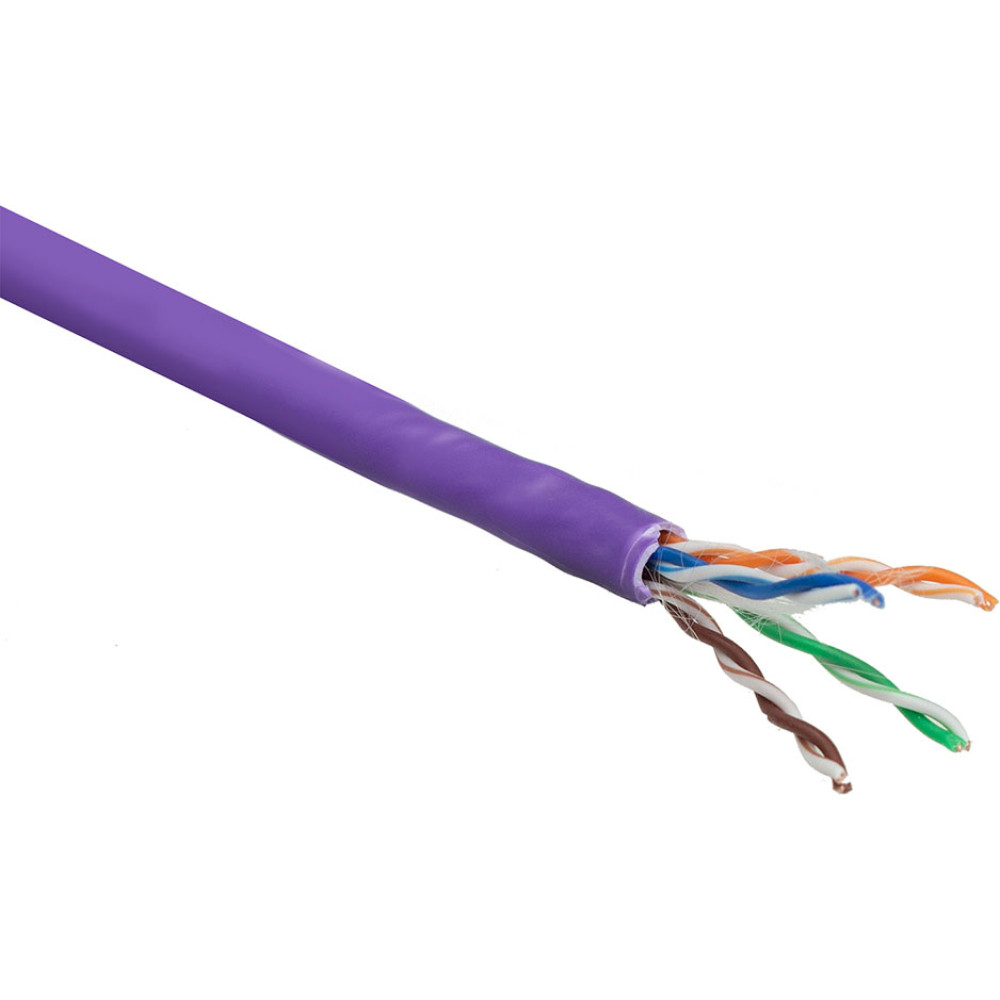

The XS6003 Cat 6 U/UTP solid installation cable with full copper conductors comes without a pair splitter/crossfiller. The big advantage is that this cable is thinner than cables with a pair splitter. The diameter of the U/UTP cable is only 5.1mm; thus it is space-saving when bundling multiple cables. Because of the more flexible cable and the thinner diameter, the cable is easier to process while installing the cable through a tube. The installation of connectors is also a lot more convenient on cables without a cross filler.

Solid installation cable without pair splitter with a diameter of 5,1mm
Facile installation of connectors
Easy to process and space-saving when bundled
Cable on reel in a box; cable length: 305m
Full copper conductors and comply with CPR Euroclass: DCA, s1, d2, a1
Complies with international standards
