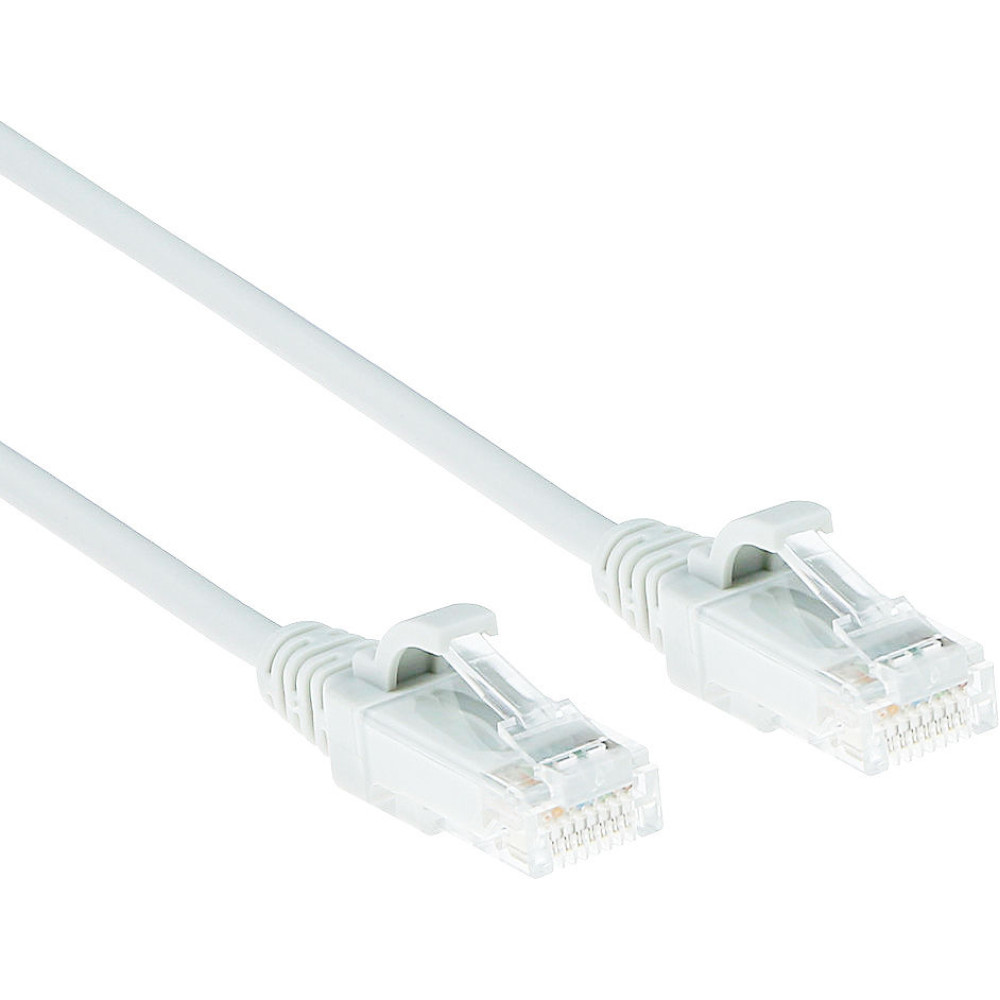

Home Cables Network patch cable RJ45 Network RJ45 (6 cat) ACT CAT6 U/UTP SLIMLINE WH 1.00M
ACT CAT6 U/UTP SLIMLINE WH 1.00M

ACT

ACT CAT6 U/UTP SLIMLINE WH 1.00M

Product Code: DC8901
Barcode 8716065510232

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
approval: CE
bandwidth: 250 MHz
cable colour: White
cable length: 1 m
category: CAT6
colour number: RAL 9016
conductor material: Copper
connector a: RJ45 male (x1)
connector b: RJ45 male (x1)
connector contact plating: Gold plated
connector type: RJ45
country of origin: CN
impedance: 100 ¿
mating cycles: 750
max.working temperature: 60 °C
min. working temperature: -20 °C
outer jacket: LSZH
shielding type: U/UTP
wire gauge: 28 AWG
Description
CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.

Cable length: 1 m
Full copper 28AWG wires, 50µ gold RJ-45 contacts
Snagless boots
Outer diameter jacket of only 3.8mm to improve air flow in cabinet
For connecting two active devices e.g. a switch and a nas
Cables are 100% tested
5 Year warranty

File - Datasheet 1
