Home Cables Network patch cable RJ45 Network RJ45 (6a cat) ACT CAT6A UFTP SL D/D-ANG BK 5.00M
ACT CAT6A UFTP SL D/D-ANG BK 5.00M

ACT

ACT CAT6A UFTP SL D/D-ANG BK 5.00M

Product Code: DA5905
Barcode 8716065571837

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
approval: CE
bandwidth: 500 MHz
cable colour: Black
cable length: 5 m
category: CAT6A
conductor material: Copper
connector a: RJ45 male (x1)
connector b: RJ45 male (x1)
connector contact plating: Gold plated
connector type: RJ45
country of origin: CN
impedance: 100 ¿
mating cycles: 750
max.working temperature: 60 °C
min. working temperature: -20 °C
outer jacket: LSZH
shielding type: U/FTP
wire gauge: 32 AWG
Description
CAT6A U/FTP slimline datacenter patch cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT6A patch cords. The bend radius is smaller compared to standard patch cords. This results in better airflow in the server rack or network cabinet. The patch cable has two 90° angled down RJ45 connectors. Ideal for situations where space is limited without compromising the bend radius. For example in network cabinets and behind equipment. Also available with a straight, 90° angled up, left or right RJ45 connector. The use of a LSZH (Low Smoke Zero Halogen) cable jacket reduces the risk of high concentrations of toxic gases if the cable is damaged by fire or short circuit. The ACT U/FTP patch cable has full copper 32AWG wires and 50µ gold-plated RJ45 contacts and complies with international standards.

Cable length: 5 meters

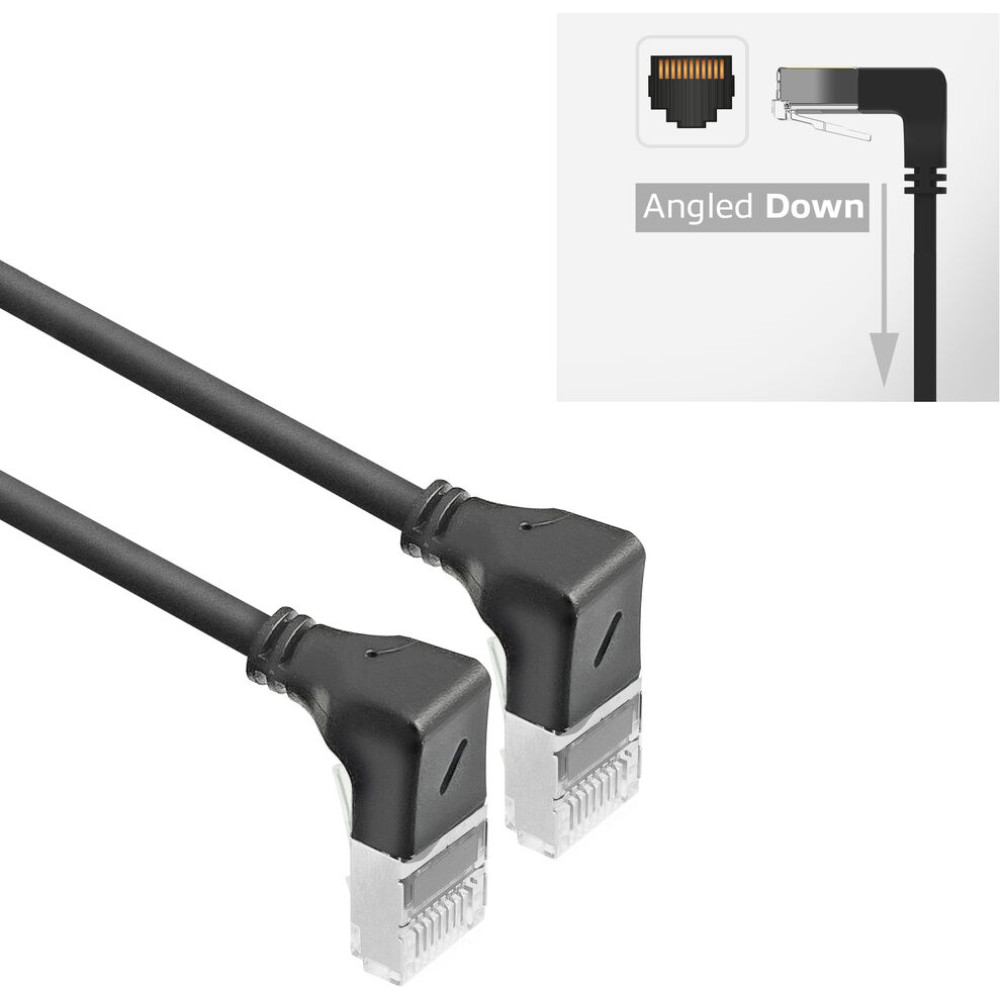

Connectors: RJ45 90° angled down - RJ45 90° angled down
Full copper 32AWG wires, 50µ gold-plated RJ45 contacts
Ideal for situations where space is limited without stressing the bend radius
Outer diameter jacket of only 3.8mm to improve airflow in cabinets
Low Smoke Zero Halogen (LSZH) cable jacket reduces the risk of high concentrations of toxic gases in case of cable damage due to fire or short circuit
Cables are 100% tested

File - Datasheet 1
