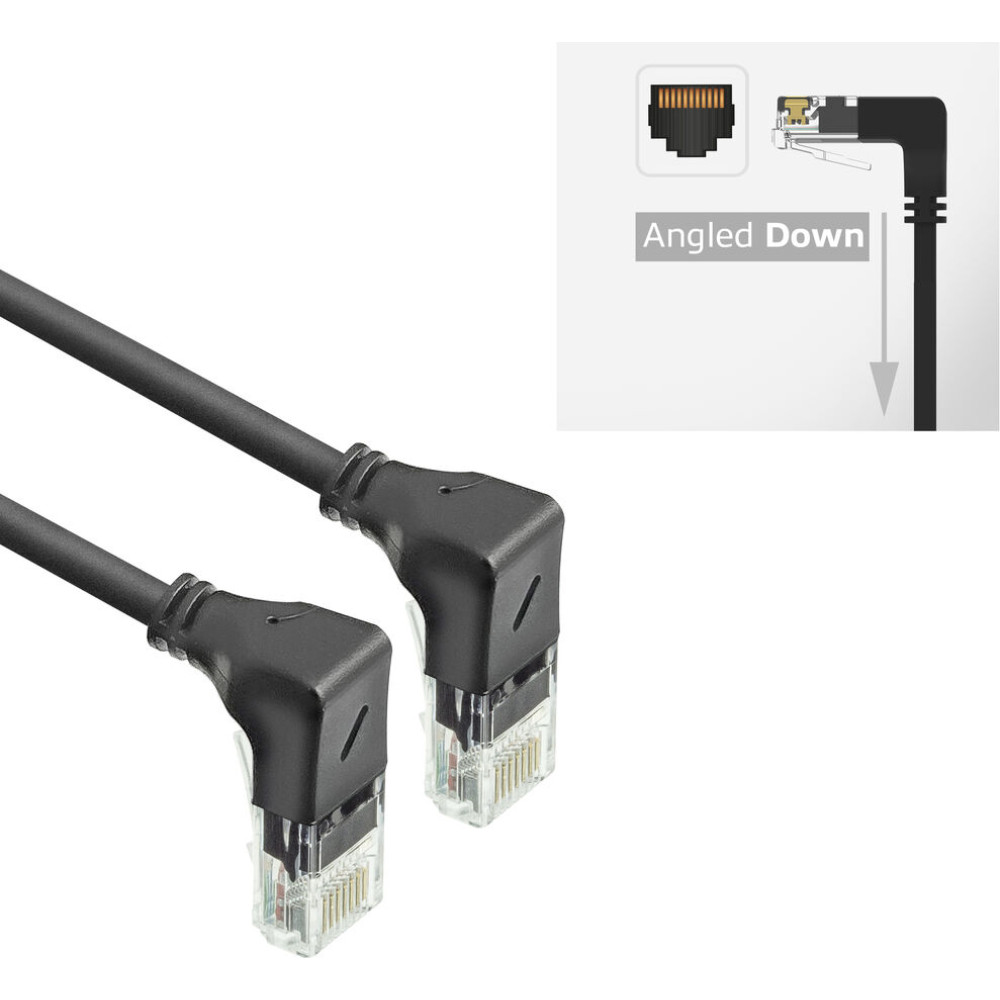

ACT CAT6A UTP SL D/D-ANG BK 0.50M
To purchase this product you must be registered in our system.
Specification
approval: CE
bandwidth: 500 MHz
bending radius: 15 mm
cable colour: Black
cable length: 0.5 m
category: CAT6A
conductor material: Copper
connector a: RJ45 male (x1)
connector b: RJ45 male (x1)
connector contact plating: Gold plated
connector type: RJ45
country of origin: CN
impedance: 100 ¿
mating cycles: 750
max.working temperature: 60 °C
min. working temperature: -20 °C
outer jacket: LSZH
poe rating: IEEE 802.3at (Type 2) / PoE+ / 30W
shielding type: U/UTP
wire gauge: 28 AWG
Description
| CAT6A U/UTP slimline datacenter patch cables are smaller in diameter (3.6mm vs 5.9mm) than regular CAT6A patch cords. The bend radius is smaller compared to standard patch cords. This results in better airflow in the server rack or network cabinet. The patch cable has two 90° angled down RJ45 connectors. Ideal for situations where space is limited without compromising the bend radius. For example in network cabinets and behind equipment. Also available with a straight, 90° angled up, left or right RJ45 connector. The use of a LSZH (Low Smoke Zero Halogen) cable jacket reduces the risk of high concentrations of toxic gases if the cable is damaged by fire or short circuit. The ACT U/UTP patch cable has full copper 28AWG wires and 50µ gold-plated RJ45 contacts and complies with the international standard ANSI/TIA-568.2-D. Cable length: 0.5 meters Connectors: RJ45 90° angled down - RJ45 90° angled down Full copper 28AWG wires, 50µ gold-plated RJ45 contacts Ideal for situations where space is limited without stressing the bend radius Outer diameter jacket of only 3.6mm to improve airflow in cabinets Conforms to international standard ANSI/TIA-568.2-D Cables are 100% tested Colour: Black File - Datasheet 1 |
