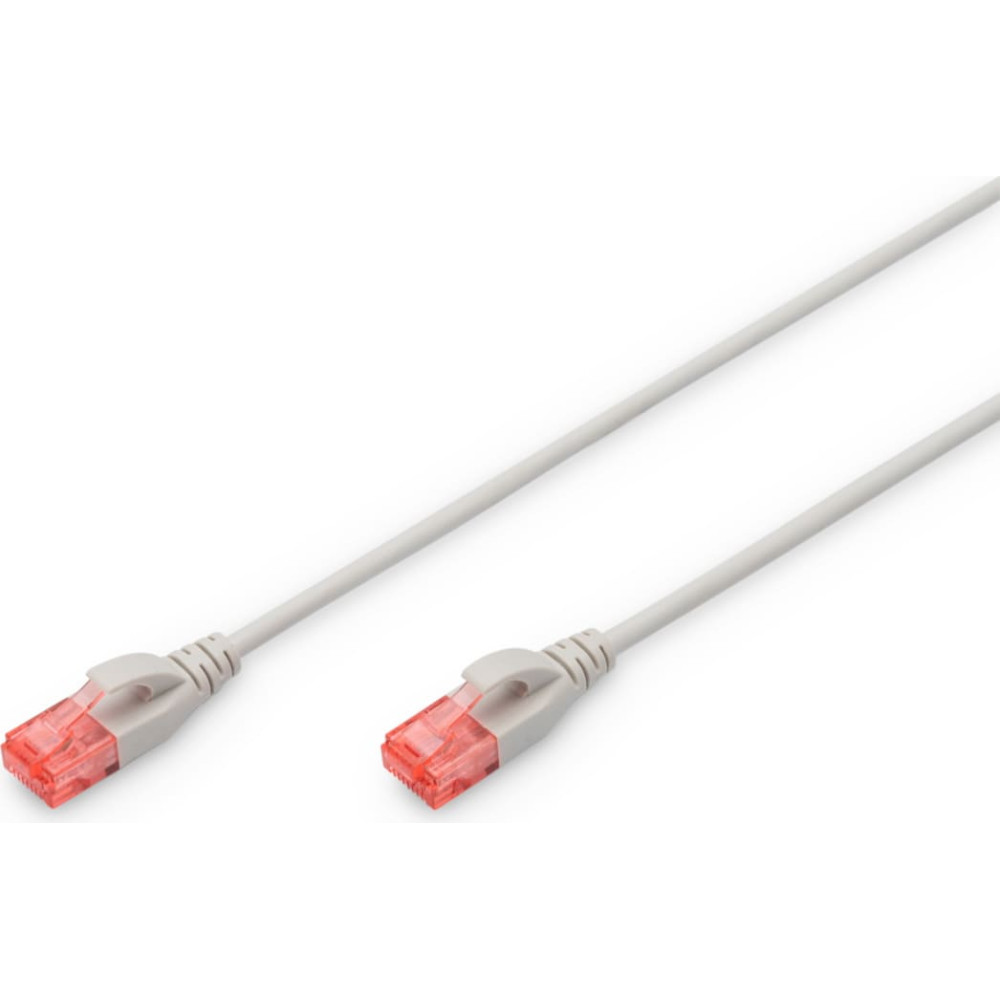

Digitus CAT 6 U/UTP slim patch cord

DIGITUS

Digitus CAT 6 U/UTP slim patch cord

Product Code: DK-1617-010S
Barcode 4016032459965

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
country of origin: CN
depth: 0.100
height: 0.010
height(cm): 0.6
length(cm): 25
volume(cm3): 255
weight(kg): 0.0288
width: 0.100
width(cm): 17
Description
CAT 6 U-UTP slim patch cord, Cu, LSZH AWG 28/7, length 1 m, color Grau

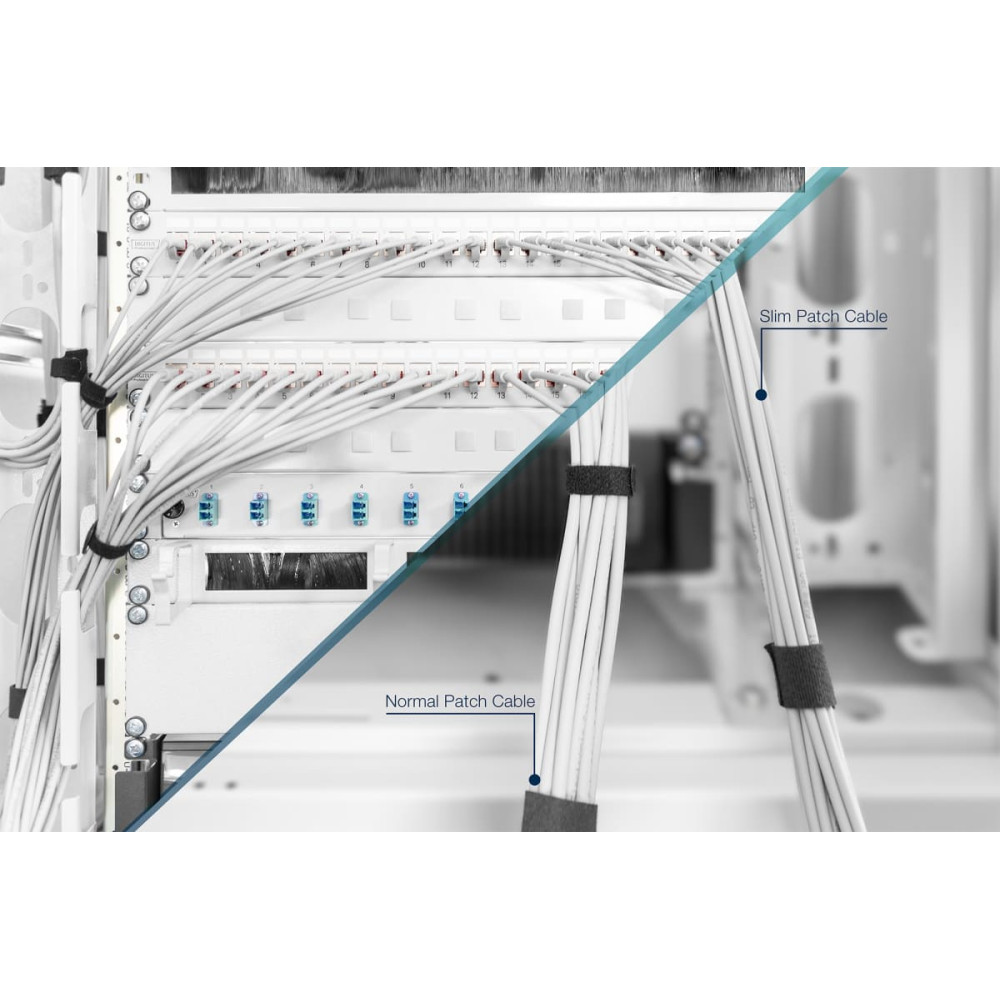

Enables flexible and space-saving cabling in your network.

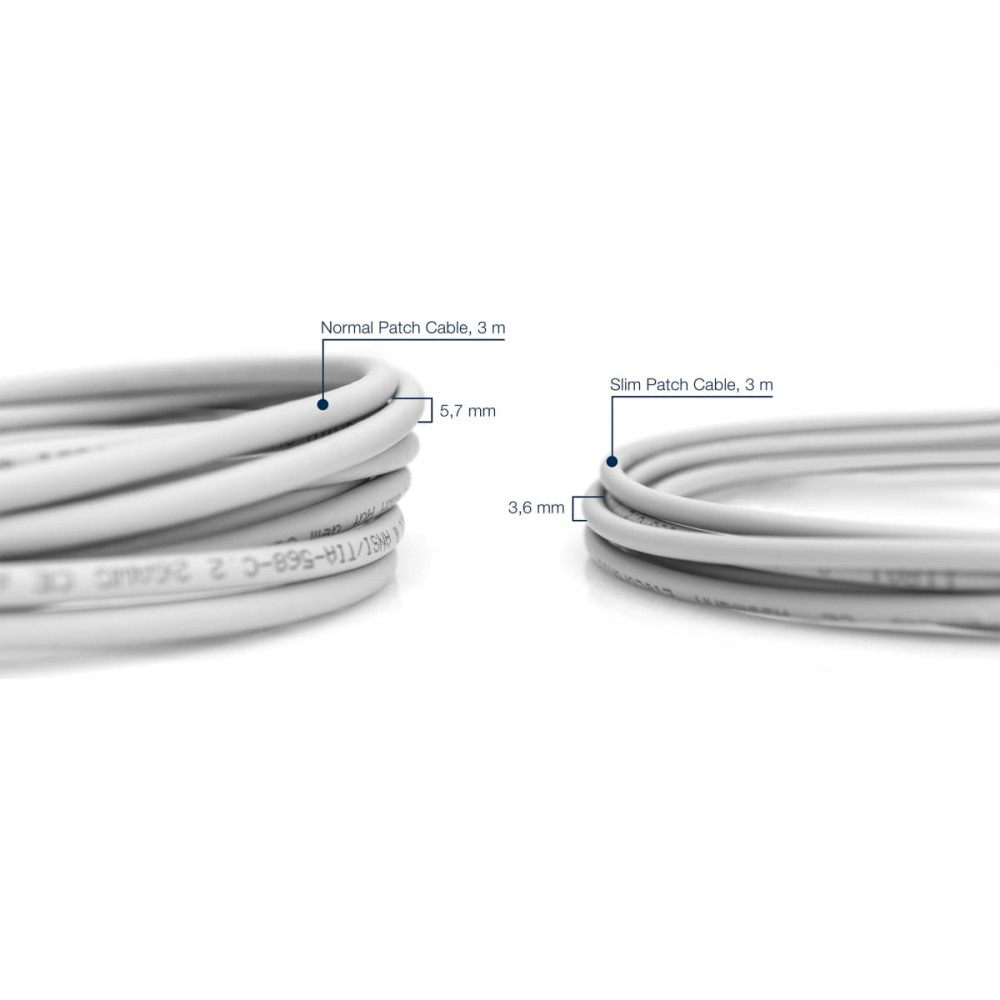

Small outer diameter of 3.65 mm is suitable for flexible use
With LSZH (low smoke zero halogen) outer sheath for best fire behaviour and low smoke emission.
Transparent red coloured connector for easy identification of Category 6 (250 MHz)
Inner conductors: Copper (Cu)

DIGITUS® slim patch cords are characterised by their small outer diameter and flexible sheath. Slim design enables versatile use in your network. Moreover, DIGITUS® slim patch cords are manufactured according to ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in DIGITUS® CAT 6 cabling. Performance was tested up to 250 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). DIGITUS® patch cords were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a moulded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 6 is simply identified by the red coloured connectors.

Configuration: 1:1
Category: CAT 6
Shielding: U-UTP, unshielded
Length: 1 m
Color: grey
Jacket: LSOH
Slim Version: true
Structure: 4 x 2 AWG 28/7, twisted pair
Flat Version: false

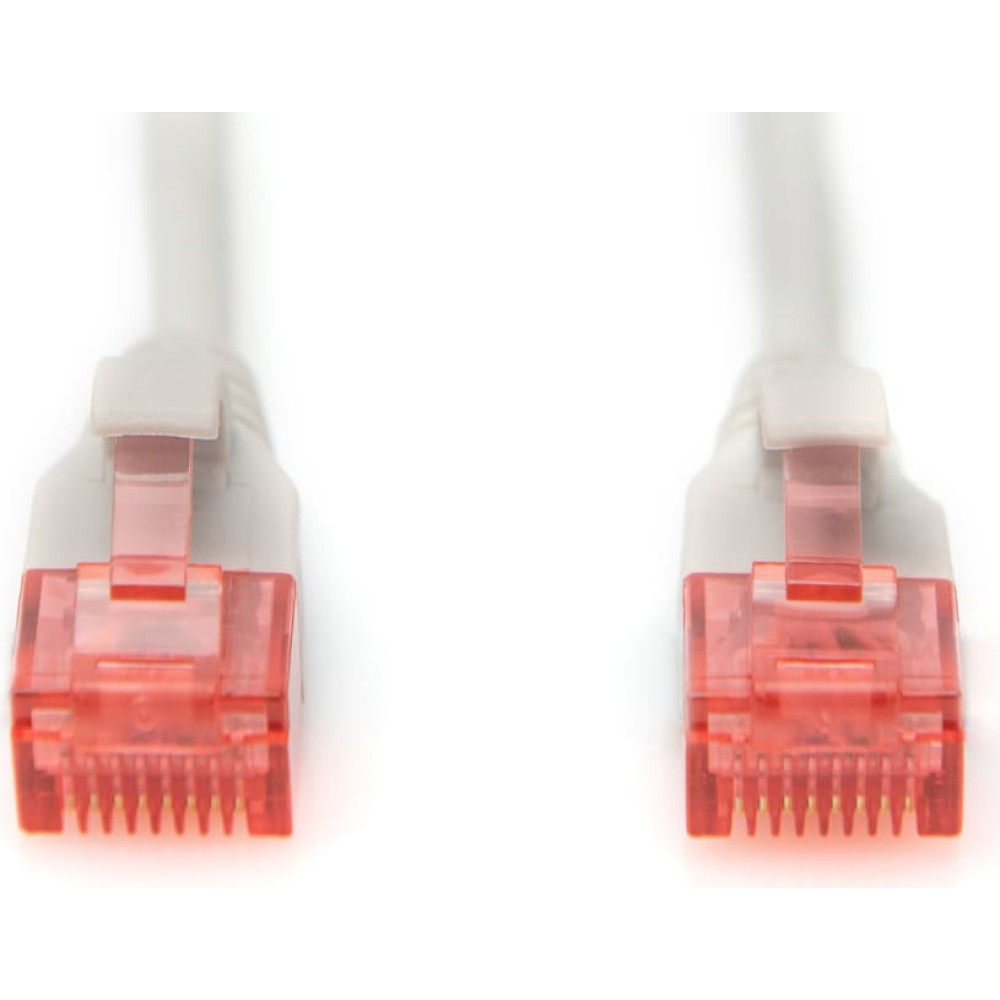

2x RJ45 connectors (8P8C)
Covers with kink protection, strain relief and locking lever protection
Length indication on hoods
Inner conductors: Copper (Cu)
Halogen free: yes
Pin Assignment: 1:1
Category: 6
AWG cross-section: 28
Anti-kink sleeve: moulded
Connector 1 type: RJ45 8(8)
Connector 2 type: RJ45 8(8)
Cable design: 4x2
Flame retardant version: yes
Anti-kink sleeve colour: Grey
Locking lever protection: yes
NVP value: 69
Oil resistant to EN 60811-404: no
Bending radius: 4D (outer diameter x 4)
Sheath colour: Grey
Length: 1 m

Package content:
Slim CAT 6 U/UTP patch cord, LSZH
