Home Cables Network patch cable RJ45 Network RJ45 (cat 8, 8.1) Lindy 3m Cat.8.1 S/FTP LSZH Cable, Grey

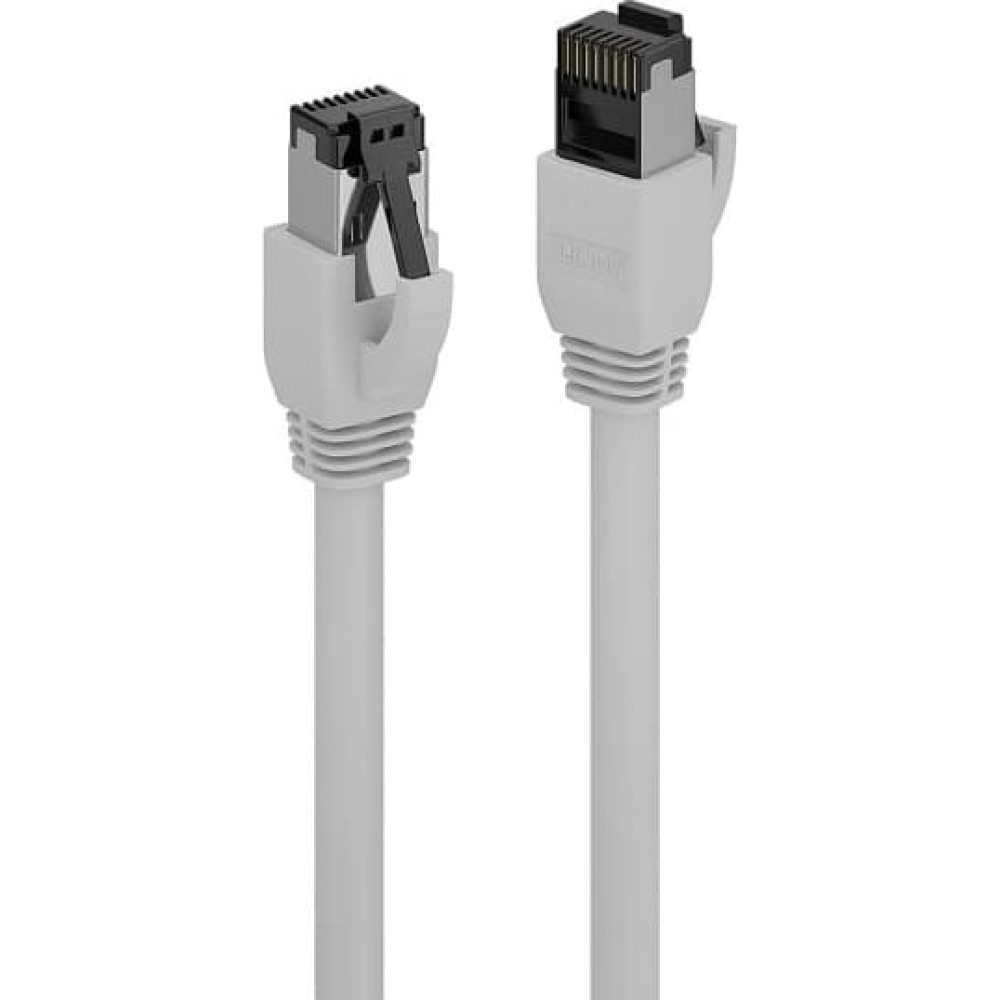

Lindy 3m Cat.8.1 S/FTP LSZH Cable, Grey

LINDY

Lindy 3m Cat.8.1 S/FTP LSZH Cable, Grey

Product Code: 47445
Barcode 4002888474450

To purchase this product you must be registered in our system.



Specification
Description
Related products
Specification
awg wire size: 26
bend radius (min): 6 cm
cable length: 3 m
cable shielding: S/FTP (S-STP)
cable standard: Cat8.1
compliance certificates: REACH, RoHS
conductor material: Copper
connector 1: RJ-45
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: RJ-45
connector 2 form factor: Straight
connector 2 gender: Male
connector contacts plating: Nickel
connector shield material: Aluminium
connector shielding: Yes
country of origin: CN
depth: 38.5 mm
frequency: 2000 MHz
gross weight: 0.04
height: 17 mm
jacket material: Low smoke zero halogen (LSZH)
net weight: 0.03
operating temperature (t-t): -10 - 60 °C
outer diameter: 7.5 mm
package type: Polybag
packaging height: 19.40
packaging lenght: 17.40
packaging width: 1.50
product colour: Grey
storage temperature (t-t): -20 - 75 °C
sustainability compliance: Yes
variation of: 47440
warranty: 10
width: 12 mm
Description

Connectors

  • Connector A: RJ45 Male
  • Connector B: RJ45 Male
  • Housing Material: Polycarbonate
  • Connector Plating: Nickel
  • Pin Construction:  Bare Copper
  • Pin Plating: Gold plated
  • Dimensions (approx.) WxDxH: 12x38.5x17mm (0.47x1.52x0.67in)

Cable Construction

  • Length: 3m (9.84ft)
  • Standard: Cat.8.1
  • Colour: Grey
  • Type: Round
  • Jacket Diameter: 7.5mm (0.30in)
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper
  • Conductor Gauge: 26AWG
  • Shielding: AL Foil

Specifications

  • Supported Bandwidth: 2000MHz
  • Nominal Attenuation: 24dB/30m @2000MHz
  • Minimum Bend Radius: 60mm (2.36in)
  • Operating Temperature: -10°C - 60°C (14°F - 140°F)
  • Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS, REACH, UL

Purchasing Information

  • No.: 47445
  • EAN: 4002888474450

This product is also available in other lengths

  • 47440 - 0.3m (0.98ft)
  • 47441 - 0.5m (1.64ft)
  • 47442 - 1m (3.28ft)
  • 47443 - 1.5m (4.92ft)
  • 47444- 2m (6.56ft)
  • 47445 - 3m (9.84ft)
  • 47446 - 5m (16.44ft)
