ACT 12M MTP/MPO(F) 50/125 OM4 P B
To purchase this product you must be registered in our system.
Specification
cable colour: Erika violet
cable length: 12 m
category: OM4
connector b: MTP (MPO) female (x1)
connector type: MTP (MPO)
core diameter: 50/125 µm
country of origin: CN
fiber cable: Patchcord
fiber type: Multimode
il (avg.): 0.2 dB
il (max.): 0.35 dB
max.working temperature: 70 °C
min. working temperature: -20 °C
number of fibers: 12
outer diameter: 3 mm
outer jacket: LSZH
polarity: B
polishing a: UPC
polishing b: UPC
rl (min.): 20 dB
Description

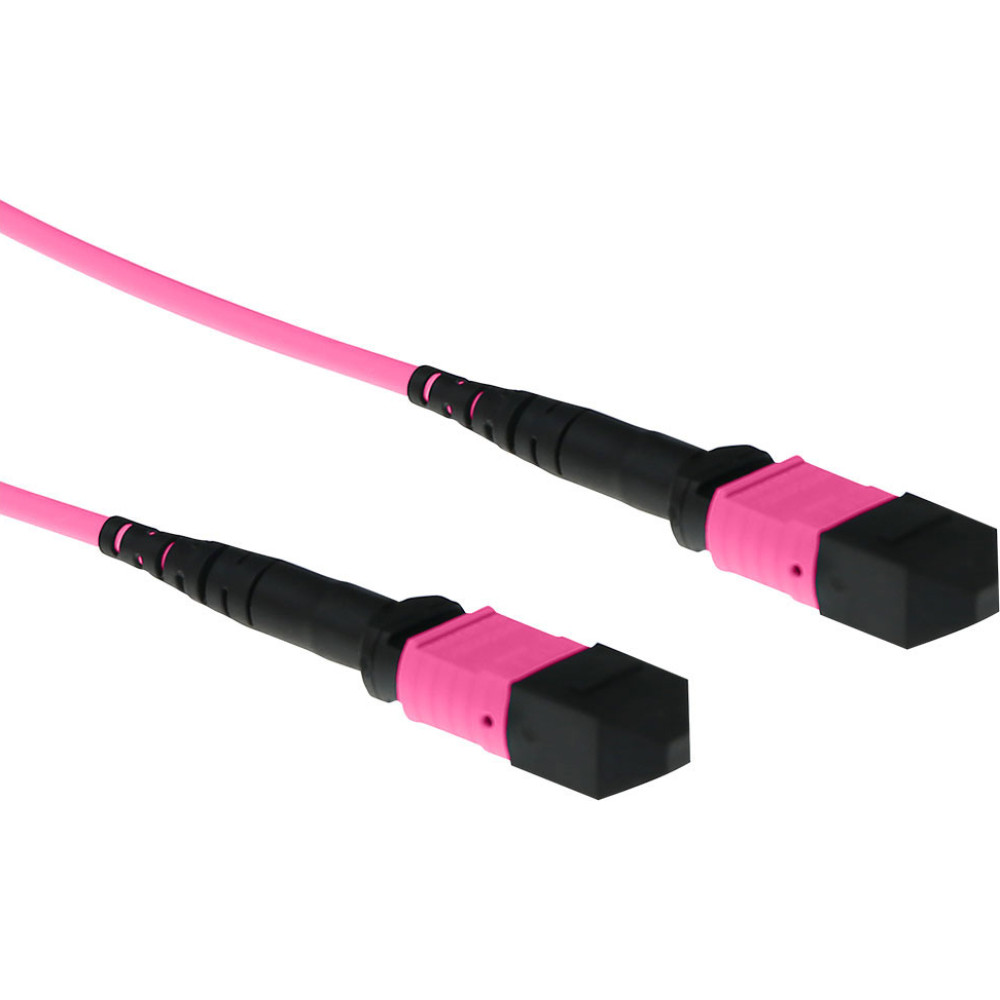

| 12 meter Multimode 50/125 OM4 polarity B fiber patch cable with MTP female connectors
Ultra compact by using 12 fibers in a 3mm cable and one MTP connector at each end, so very suitable for datacenters ACT MTP/MPO cables use MTP® US Conec connectors for among other benefits a very low loss Designed to be used with QSFP and OSFP transceivers File - Datasheet 1 File - Datasheet 2 |
