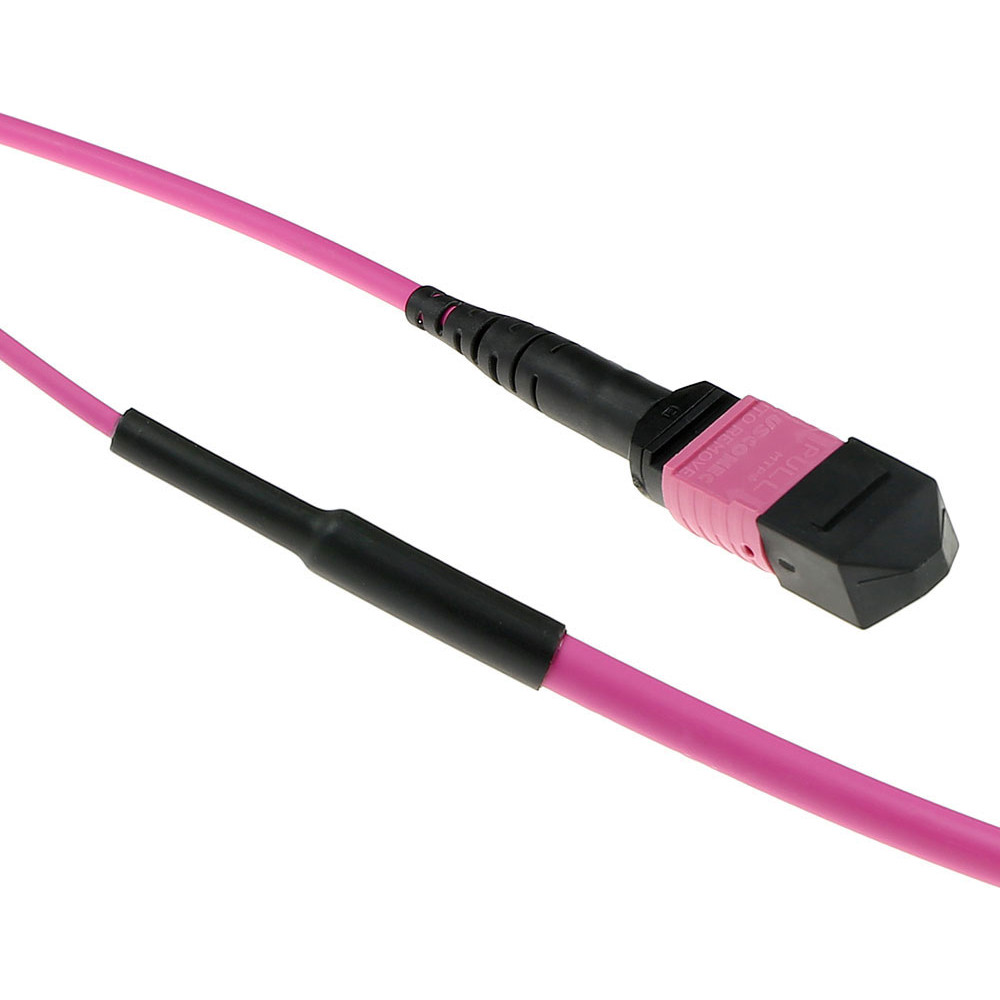

ACT 25M MTP(F) 50/125 OM4 PA TR

Product Code: DC5000

Barcode 8716065420692

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Erika violet

cable length: 25 m

category: OM4

connector a: MTP (MPO) female (x1)

connector b: MTP (MPO) female (x1)

connector type: MTP (MPO)

core diameter: 50/125 µm

country of origin: CN

cpr euroclass: Eca

fiber cable: Trunk cable

fiber type: Multimode

il (avg.): 0.2 dB

il (max.): 0.35 dB

max.working temperature: 70 °C

min. working temperature: -20 °C

number of fibers: 12

outer diameter: 6.5 mm

outer jacket: LSZH

polarity: A

polishing a: UPC

polishing b: UPC

rl (min.): 20 dB

Description

25 meter Multimode 50/125 OM4(OM3) polarity A fiber trunk cable with MTP/MPO female connectors

Ultra compact and extra protected by using 12 fibers in a 6.5mm trunk cable and one MTP connector at each end, so very suitable for datacenters
ACT MTP/MPO cables use MTP® US Conec connectors for among other benefits a very low loss and better mechanical properties
Designed to be used with QSFP and OSFP transceivers
The OM4 fibers in these cables are backwards compatible with OM3 fibers
