Home Cables Optical cables 9/125 62.5/125 50/124 MTP ACT LC-LC 50/125 OM4 DUPLEX 3.00M

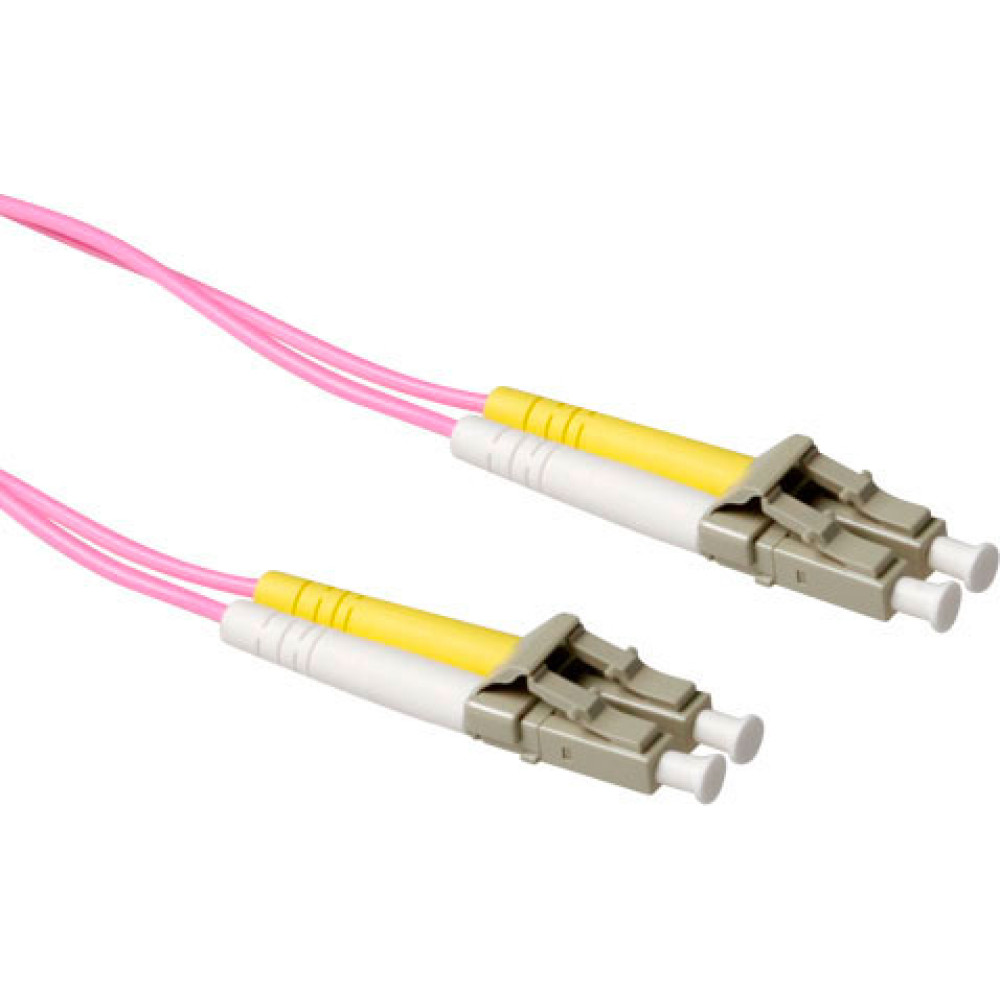

ACT LC-LC 50/125 OM4 DUPLEX 3.00M

Product Code: RL9703

Barcode 8716065274646

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Erika violet

cable length: 3 m

category: OM4

clipped: Both

connector a: LC male (x2)

connector b: LC male (x2)

connector type: LC

core diameter: 50/125 µm

country of origin: CN

fiber cable: Patchcord

fiber type: Multimode

il (avg.): 0.1 dB

il (max.): 0.2 dB

max.working temperature: 60 °C

min. working temperature: -20 °C

number of fibers: 2

outer diameter: 1.8 mm

outer jacket: LSZH

polishing a: UPC

polishing b: UPC

rl (min.): 45 dB

Description

3 meter LSZH Multimode 50/125 OM4 fiber patch cable duplex with LC connectors

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A-m fiber
Laser presision cleaving
UPC polish

File - Datasheet 1
