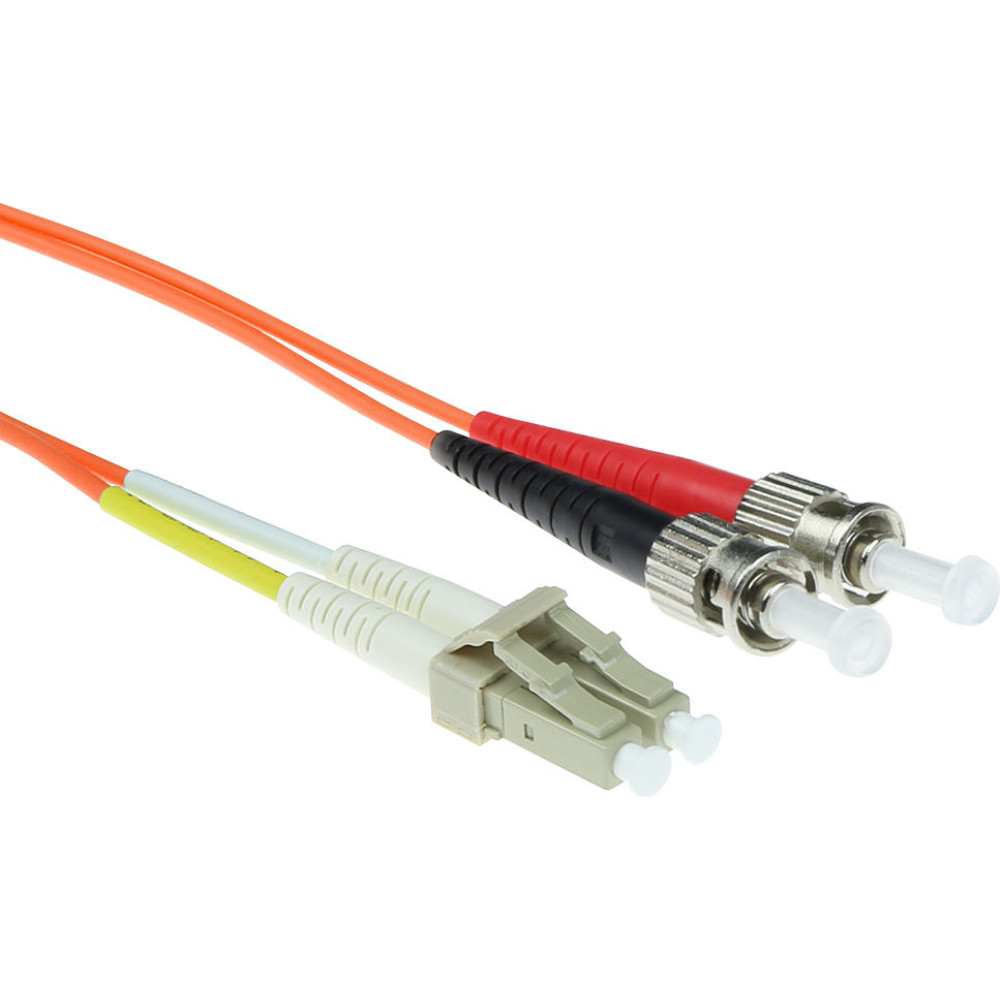

ACT LC-ST 50/125 OM2 DUPLEX 10.00M

Product Code: RL7510

Barcode 8716065224337

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Orange

cable length: 10 m

category: OM2

clipped: One side

connector a: LC male (x2)

connector b: ST male (x2)

connector type: LC, ST

core diameter: 50/125 µm

country of origin: CN

fiber cable: Patchcord

fiber type: Multimode

il (avg.): 0.1 dB

il (max.): 0.25 dB

max.working temperature: 60 °C

min. working temperature: -20 °C

number of fibers: 2

outer diameter: 1.8 mm

outer jacket: LSZH

polishing a: UPC

polishing b: UPC

rl (min.): 30 dB

Description

10 meter LSZH Multimode 50/125 OM2 fiber patch cable duplex with LC and ST connectors

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A-m fiber
Laser presision cleaving
UPC polish

File - Datasheet 1
