ACT SC-SC 50/125 OM3 DUP 1.00M

Product Code: RL3601

Barcode 8716065229158

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Aqua

cable length: 1 m

category: OM3

clipped: None

connector a: SC male (x2)

connector b: SC male (x2)

connector type: SC

core diameter: 50/125 µm

country of origin: CN

fiber cable: Patchcord

fiber type: Multimode

il (avg.): 0.1 dB

il (max.): 0.25 dB

max.working temperature: 60 °C

min. working temperature: -20 °C

number of fibers: 2

outer diameter: 1.8 mm

outer jacket: LSZH

polishing a: UPC

polishing b: UPC

rl (min.): 30 dB

Description

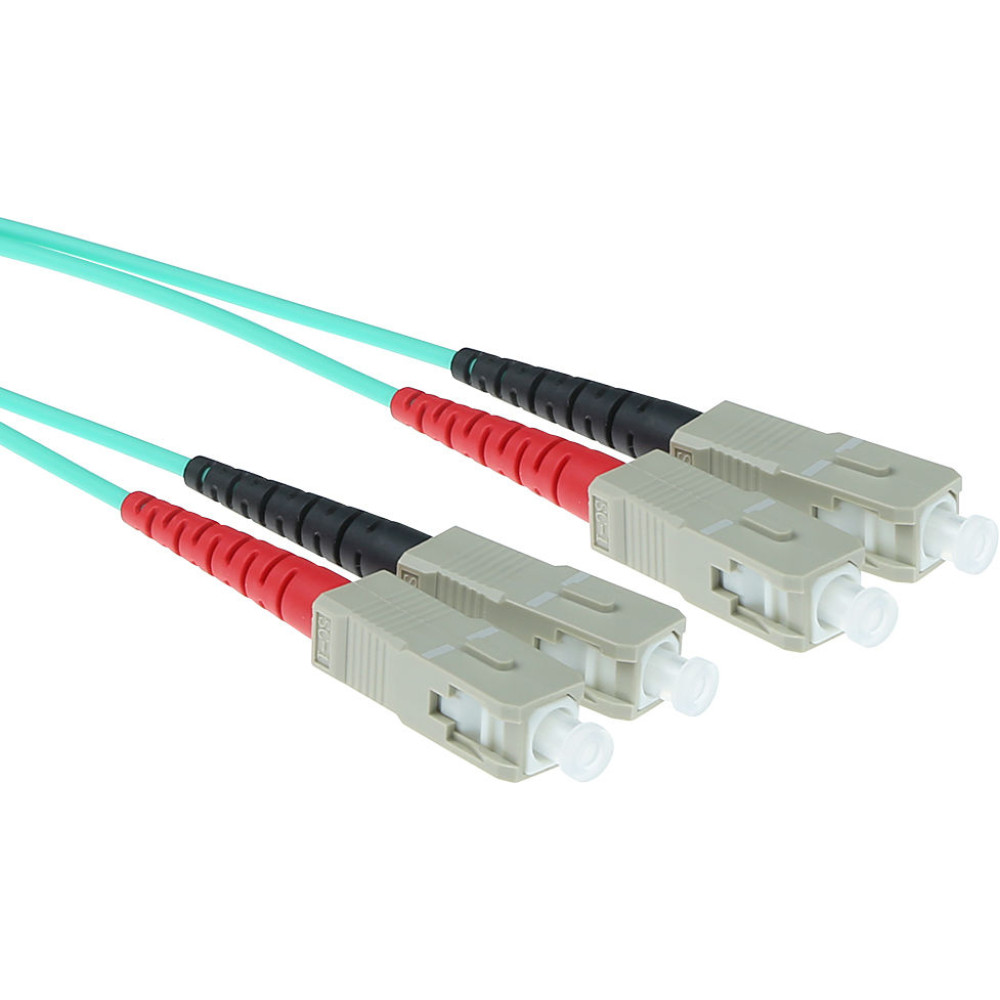

1 meter LSZH Multimode 50/125 OM3 fiber patch cable duplex with SC connectors

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A-m fiber
Laser presision cleaving
UPC polish
