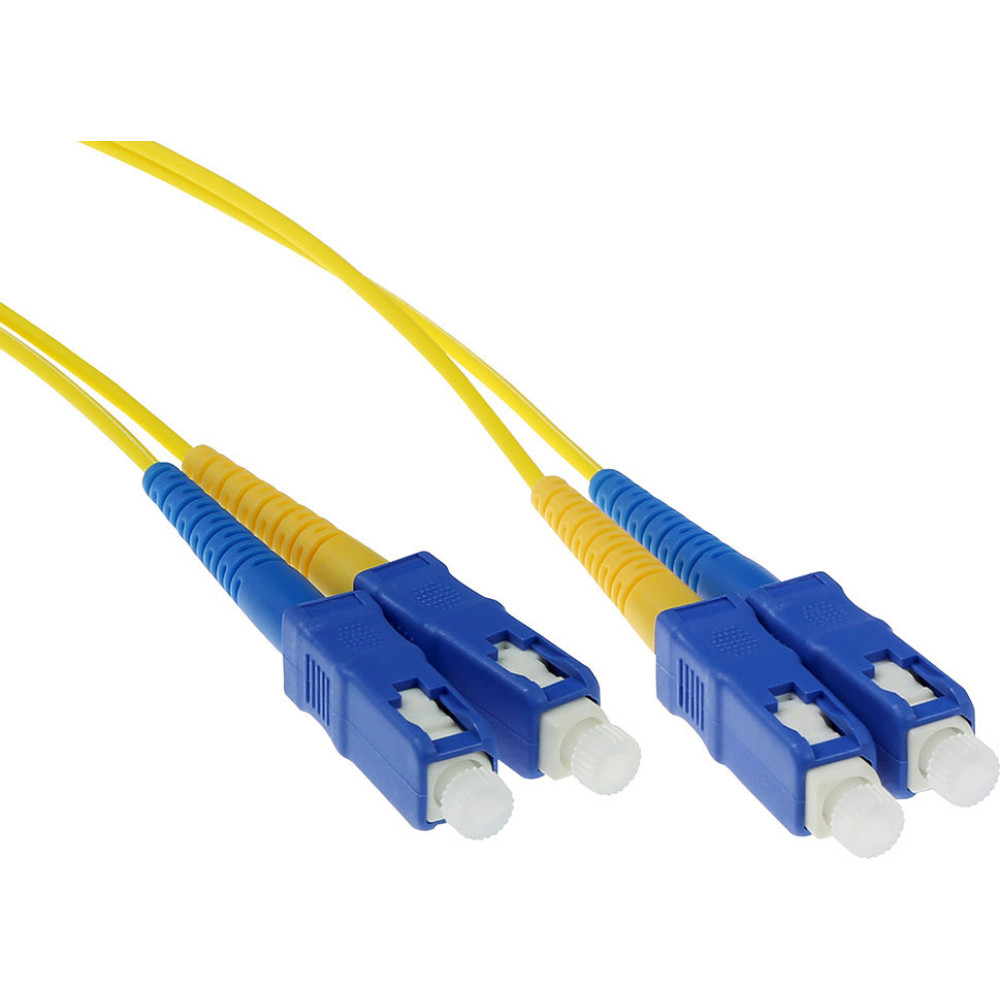

ACT SC-SC 9/125 OS2 DUPLEX 10.00M

Product Code: RL3910

Barcode 8716065223941

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Yellow

cable length: 10 m

category: OS2

clipped: None

connector a: SC male (x2)

connector b: SC male (x2)

connector type: SC

core diameter: 9/125 µm

country of origin: CN

fiber cable: Patchcord

fiber type: Singlemode

il (avg.): 0.1 dB

il (max.): 0.2 dB

max.working temperature: 60 °C

min. working temperature: -20 °C

number of fibers: 2

outer diameter: 1.8 mm

outer jacket: LSZH

polishing a: UPC

polishing b: UPC

rl (min.): 55 dB

Description

10 meter LSZH Singlemode 9/125 OS2 fiber patch cable duplex with SC connectors

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A fiber
Laser presision cleaving
UPC polish

File - Datasheet 1
