Home Cables Optical cables 9/125 62.5/125 50/124 MTP ACT SC/APC8-LC/PC OS2 DUP 1.50M

ACT SC/APC8-LC/PC OS2 DUP 1.50M

Product Code: RL8851

Barcode 8716065323627

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Yellow

category: OS2

clipped: One side

connector a: SC male (x2)

connector b: LC male (x2)

connector type: LC, SC

core diameter: 9/125 µm

country of origin: CN

fiber cable: Patchcord

fiber type: Singlemode

il (avg.): 0.1 dB

il (max.): 0.2 dB

max.working temperature: 60 °C

min. working temperature: -20 °C

number of fibers: 2

outer diameter: 1.8 mm

outer jacket: LSZH

polishing a: APC8

polishing b: UPC

rl (min.): 55 dB

Description

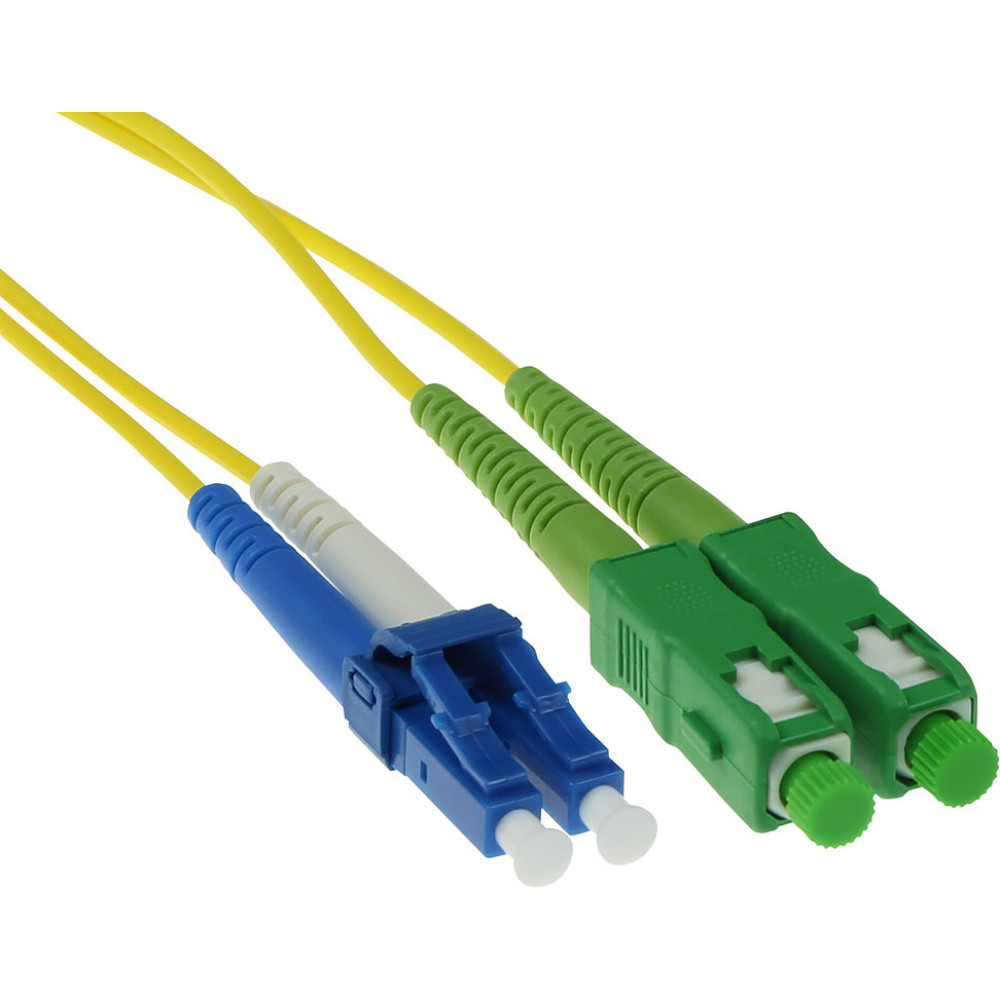

1.5 meter LSZH Singlemode 9/125 OS2 fiber patch cable duplex with SC/APC and LC/UPC connectors

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A fiber
Laser presision cleaving
UPC APC polish
