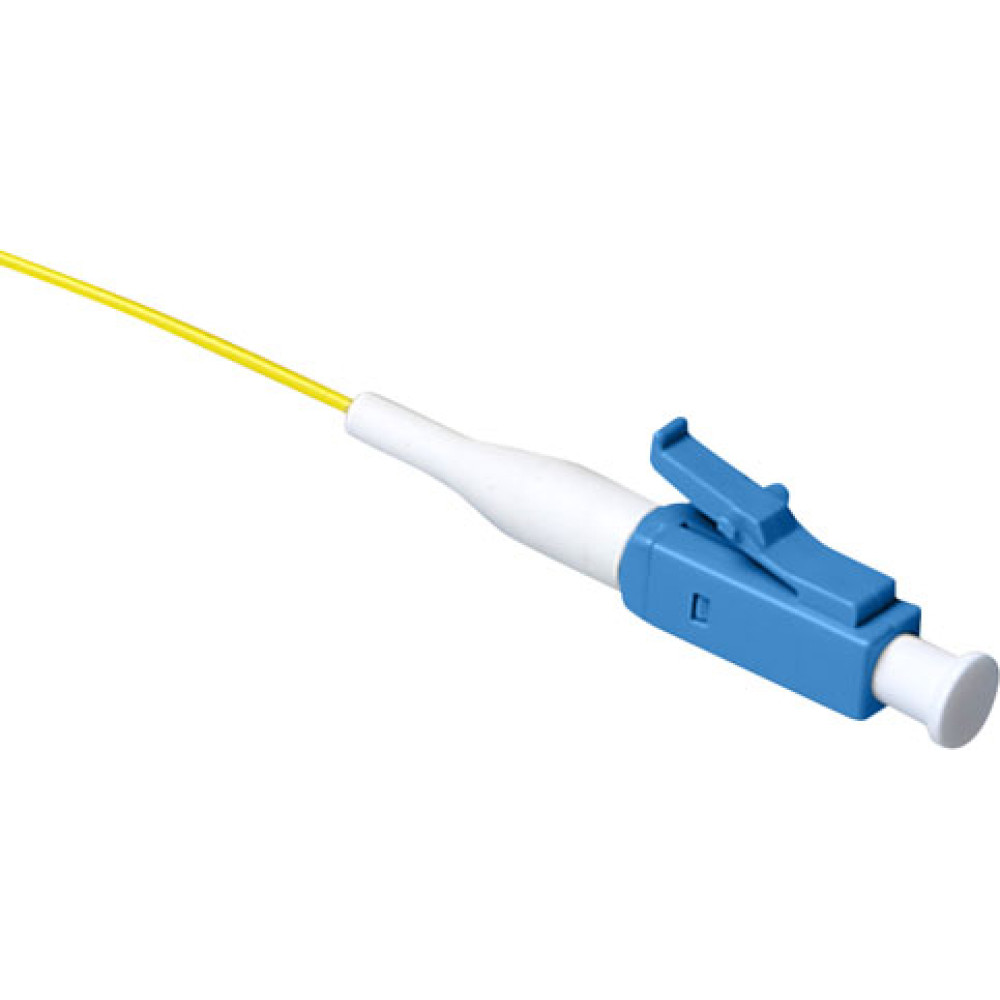

ACT LC OS2 SEMI T PIGTAIL 1.00M

Product Code: RL9995

Barcode 8716065351057

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

cable colour: Yellow

cable length: 1 m

category: OS2

connector a: LC male (x1)

connector b: Open end (x1)

connector type: LC

core diameter: 9/125 µm

country of origin: CN

fiber cable: Pigtail

fiber type: Singlemode

il (avg.): 0.15 dB

il (max.): 0.3 dB

max.working temperature: 85 °C

min. working temperature: -40 °C

number of fibers: 1

outer diameter: 0.9 mm

outer jacket: LSZH

polishing a: UPC

rl (min.): 50 dB

Description

LC 9/125µm OS2 pigtail

Individual test report each cable on IL and RL, End-face 100% inspected
Grade A-m fiber
Laser presision cleaving
UPC polish

File - Datasheet 1
