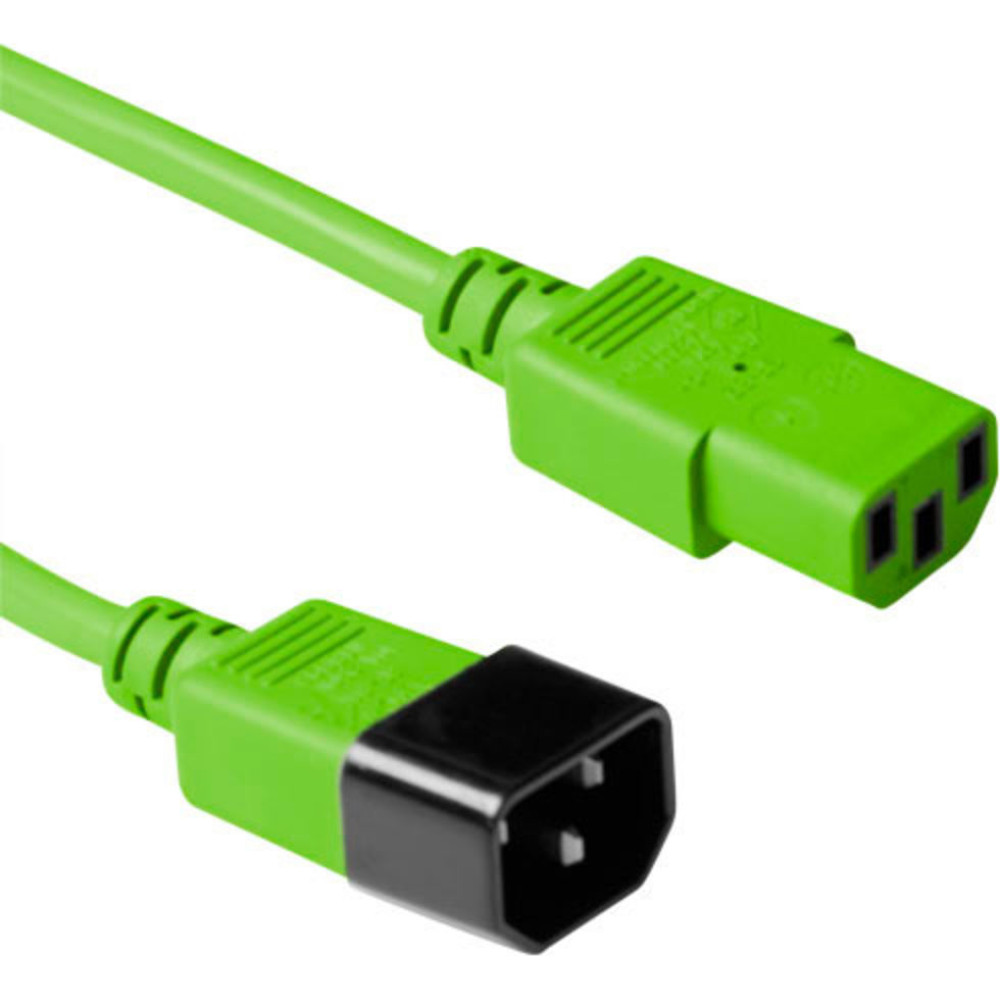

ACT POWERCORD C13-C14 GN 0.30M

Product Code: AK5425

Barcode 8716065467604

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

approval: CE, VDE

cable colour: Green

cable length: 0.3 m

colour number: RAL 6018

conductor material: Copper

connector a: IEC 60320 C13 straight female (Max 70°C) (x1)

connector b: IEC 60320 C14 straight male (Max 70°C) (x1)

connector type: C13, C14

country of origin: CN

max.working temperature: 70 °C

min. working temperature: 0 °C

number of wires: 3

outer jacket: PVC

rated current: 10 A

rated voltage: 250 V

wire gauge (mm²): 0.75 mm²

Description

The C13 to C14 powercord can be used for extending a C13 powercable. Mostly used for connecting PDUs (Power Distribution Units) in datacenters. ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.

Cable length: 0.3 m
Connectors: C13 - C14
Color: green
Maximum load: 230V / 10A

File - Datasheet 1
