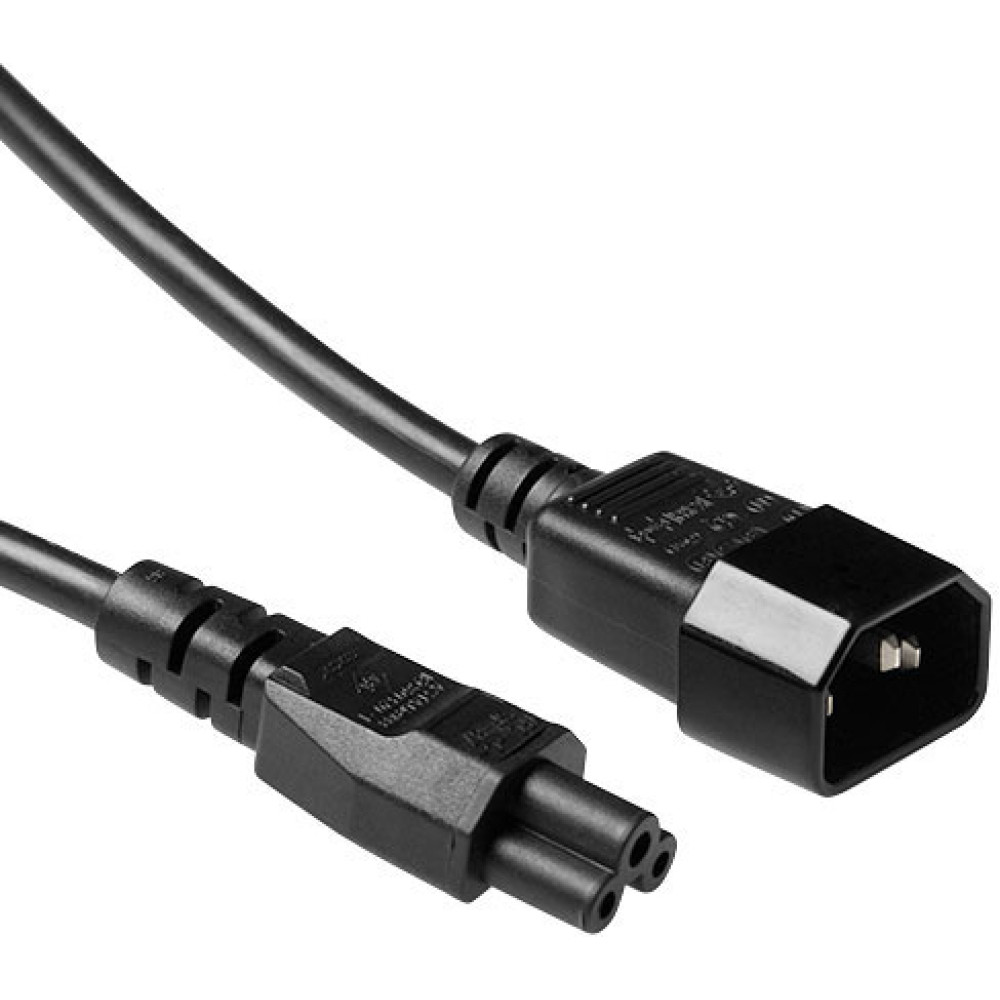

ACT POWERCORD C14 - C5 BK 0.50M

Product Code: AK5218

Barcode 8716065343502

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

approval: VDE, CE

cable colour: Black

cable length: 0.5 m

colour number: RAL 9011

conductor material: Copper

connector a: IEC 60320 C14 straight male (Max 70°C) (x1)

connector b: IEC 60320 C5 straight female (Max 70°C) (x1)

connector type: C14, C5

country of origin: CN

max.working temperature: 70 °C

min. working temperature: 0 °C

number of wires: 3

outer jacket: PVC

rated current: 2.5 A

rated voltage: 250 V

wire gauge (mm²): 0.75 mm²

Description

The C14 to C5 powercord can be used for connecting a laptop charger to a powercable or PDU (Power Distribution Unit) with a C13 connector.

ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.

Cable length: 0.5 m
Connectors: C14 - C5
Color: black
Maximum load: 230V / 2.5A
