Home Cables Power cables External power ACT POWERCORD C19-C20 GREEN 1.80M

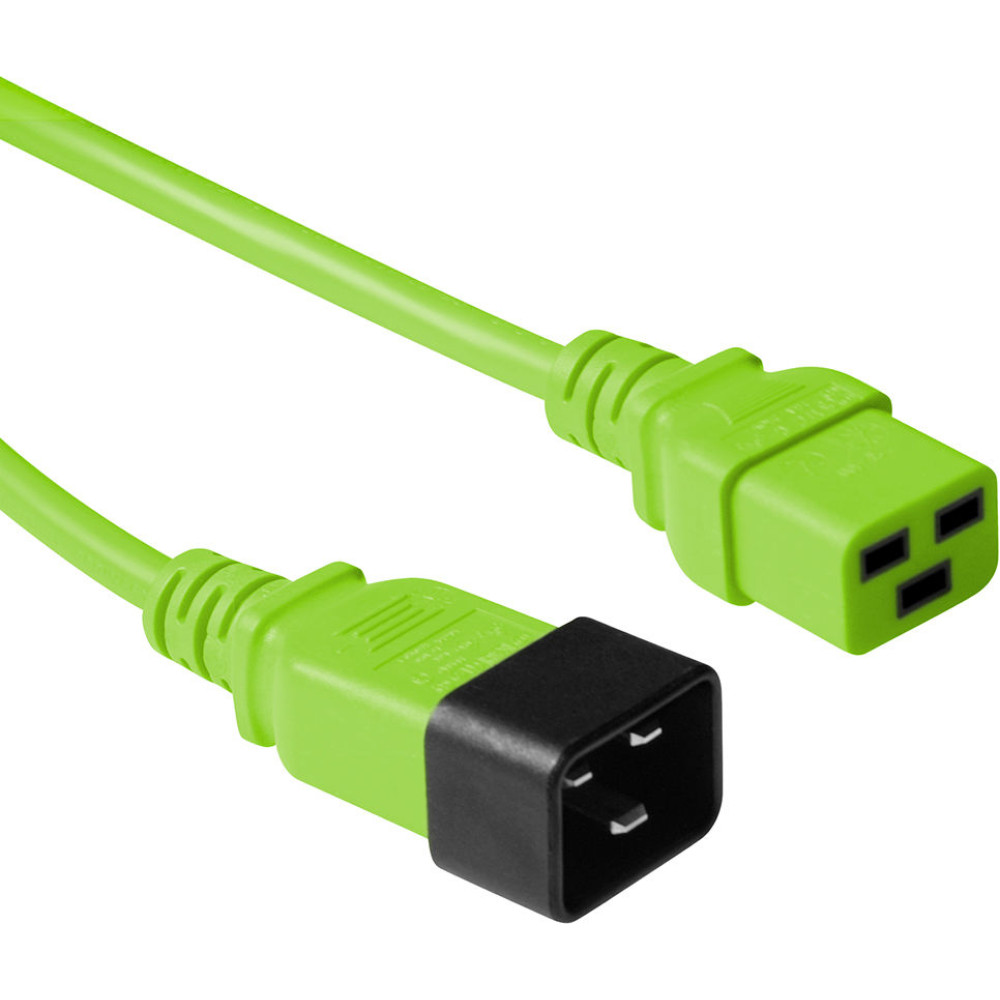

ACT POWERCORD C19-C20 GREEN 1.80M

Product Code: AK5098

Barcode 8716065299472

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

approval: VDE, CE

cable colour: Green

cable length: 1.8 m

colour number: RAL 6018

conductor material: Copper

connector a: IEC 60320 C19 straight female (Max 70°C) (x1)

connector b: IEC 60320 C20 straight male (Max 70°C) (x1)

connector type: C19, C20

country of origin: CN

max.working temperature: 70 °C

min. working temperature: 0 °C

number of wires: 3

outer jacket: PVC

rated current: 16 A

rated voltage: 250 V

wire gauge (mm²): 1.5 mm²

Description

The C19 to C20 powercord can be used for extending a C19 powercable. These cables are used for connecting high power equipment, e.g., a server and UPS (Uninterruptible Power Supply) to the mains. ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.

Cable length: 1.8 m
Connectors: C19 - C20
Color: green
Maximum load: 230V / 16A

File - Datasheet 1
