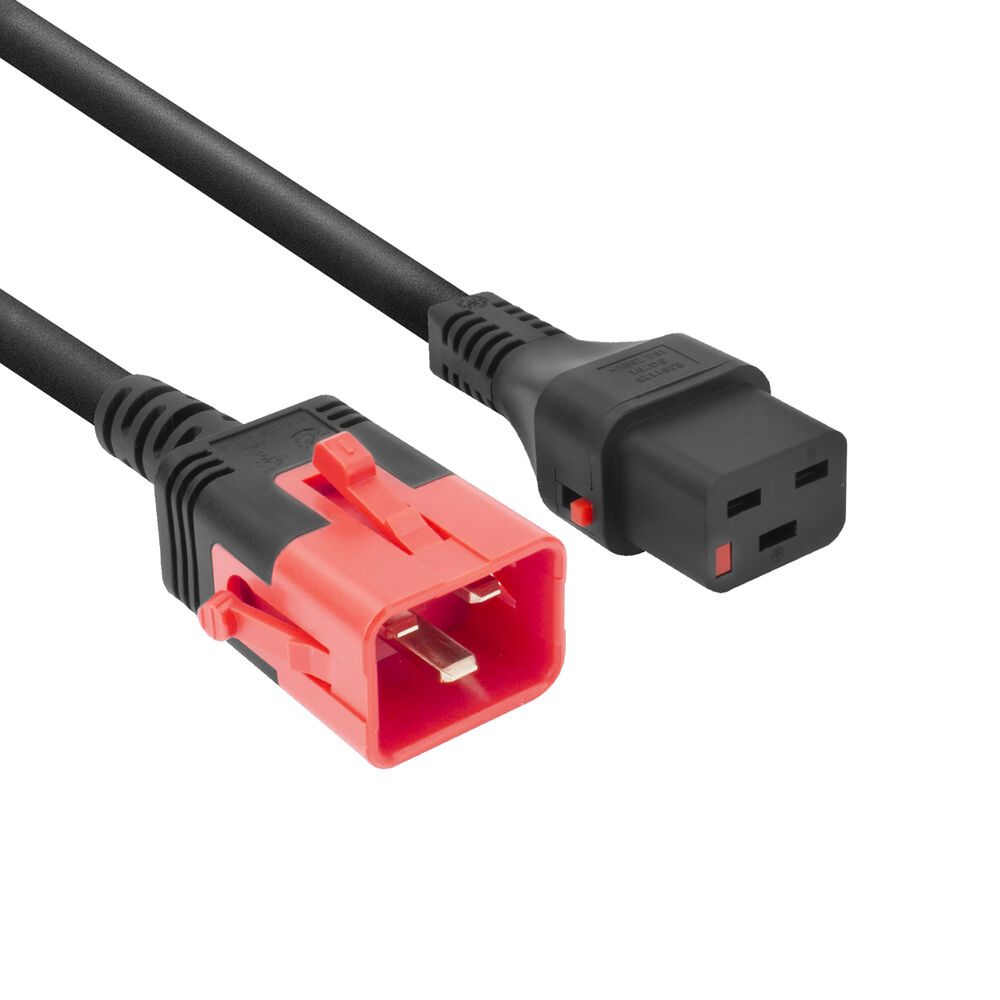

ACT POWERCORD C19L-C20DL BK 1.0M
To purchase this product you must be registered in our system.
Specification
approval: CSA, UL, ENEC 05, VDE, CE
cable colour: Black
cable diameter: 9 mm
cable length: 1 m
conductor material: Copper
connector a: IEC 60320 C19 straight female (Max 70°C) (x1)
connector b: IEC 60320 C20 straight male (Max 70°C) (x1)
connector type: C19, C20
country of origin: GB
locking: IEC lock, IEC lock+ SL
max.working temperature: 105 °C
min. working temperature: -20 °C
number of wires: 3
outer jacket: PVC
rated current: 16 A
rated voltage: 250 V
wire gauge: 15 AWG
wire gauge (mm²): 1.5 mm²
Description
| The ACT IEC Dual Lock power cable offers locking at both ends: C19 IEC Lock on one side and the C20 IEC Lock Dual Locking connector on the PDU side. The C20 connector locks at the top and side, providing additional protection against accidental disconnection from the PDU. The locking mechanism is universal and works with all major PDU brands. The PDU doesn’t need to have its own locking mechanism and no tools are required. The IEC Lock prevents accidental disconnection/release of the cable from both the equipment and the PDU. This minimizes the risk of damage and downtime. The power cables are available in a range of colors for easy identification. The ACT IEC Lock can be used in Europe, Australia (16A/250V~), USA, Canada and Japan (20A/120V~). Cable length: 1 m Connectors: C19 IEC Lock - C20 Dual locking IEC Lock Suitable for all PDUs; PDU doesn't need a locking mechanism of its own Protects against accidental disconnection in critical equipment, PDUs, servers, network equipment, etc. PDU side locks at the top and side Minimizes risks of damage and downtime Color: black File - Datasheet 1 |
