Home Cables Power cables External power ACT POWERCORD SCHUKO R-C13 IV 2.5M

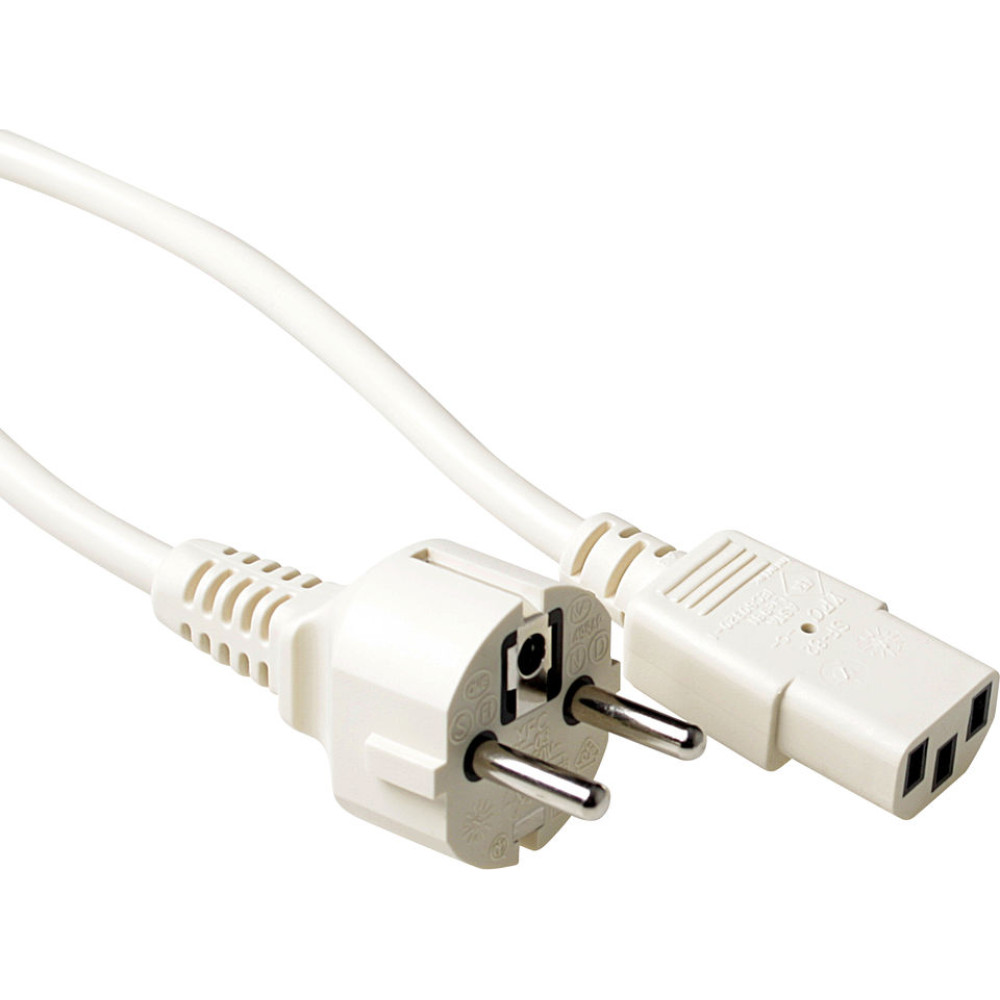

ACT POWERCORD SCHUKO R-C13 IV 2.5M

Product Code: AK5009

Barcode 8716065323481

To purchase this product you must be registered in our system.

Specification

Description

Related products

Specification

approval: VDE, CE

cable colour: Ivory

cable length: 2.5 m

colour number: RAL 1015

conductor material: Copper

connector a: CEE 7/7 straight male (Max 70°C) (x1)

connector b: IEC 60320 C13 straight female (Max 70°C) (x1)

connector type: C13, CEE7/7

country of origin: CN

max.working temperature: 70 °C

min. working temperature: 0 °C

number of wires: 3

outer jacket: PVC

rated current: 10 A

rated voltage: 250 V

wire gauge (mm²): 1 mm²

Description

The CEE 7/7 to C13 powercords are used for connecting equipment like computers, monitors and printers to the mains. ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.

Cable length: 2.5 m
Connectors: Schuko CEE 7/7 male (straight) - C13 IEC 60320
Color: ivory
Maximum load: 230V / 10A
