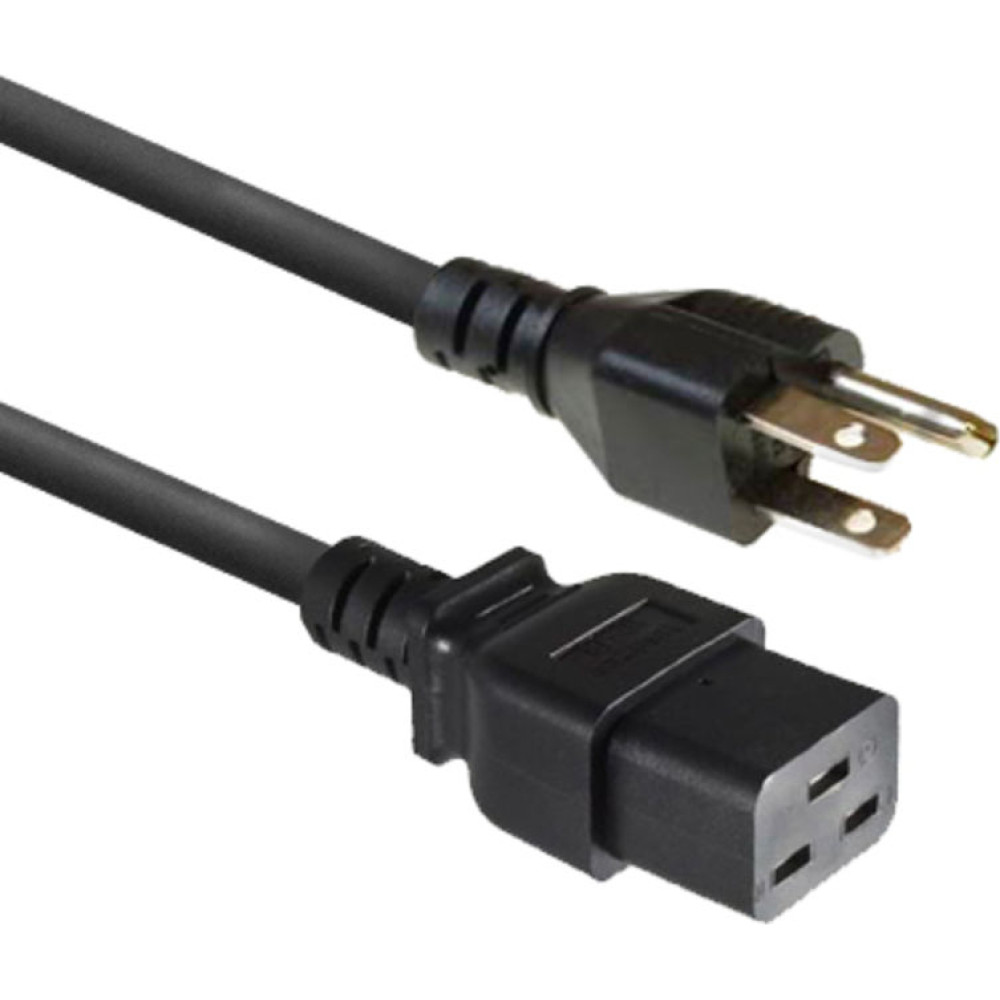

ACT POWERCORD USA-C19 BK 1.80M
To purchase this product you must be registered in our system.
Specification
approval: CE
cable colour: Black
cable length: 1.8 m
colour number: RAL 9011
conductor material: Copper
connector a: USA mains plug (type A) straight male (Max 70°C) (x?)
connector b: IEC 60320 C19 straight female (Max 70°C) (x1)
connector type: USA power (type A), C19
country of origin: CN
max.working temperature: 60 °C
min. working temperature: 0 °C
outer jacket: PVC
rated current: 13 A
rated voltage: 120 V
wire gauge: 16 AWG
Description
| The USA to C19 powercord is used for connecting high power equipment e.g., a server and UPS (Uninterruptible Power Supply) to the mains.
ACT provides many types of power cables: CEE 7/7, Euro, UK, USA, Italian, Danish, Swiss and Indian/South African cables. ACT supplies powercables with the following connectors: CEE 7/7, IEC60320 C5, C7, C13, C14, C19, C20 and IEC60309 CEE1. ACT offers different types of power split cables and power cables in the following colors: black, white, red, blue, green and yellow.
Cable length: 1.8 m Connectors: USA plug (NEMA 5-15P / Type B) - C19 Color: black Maximum load: 120V / 13A File - Datasheet 1 |
