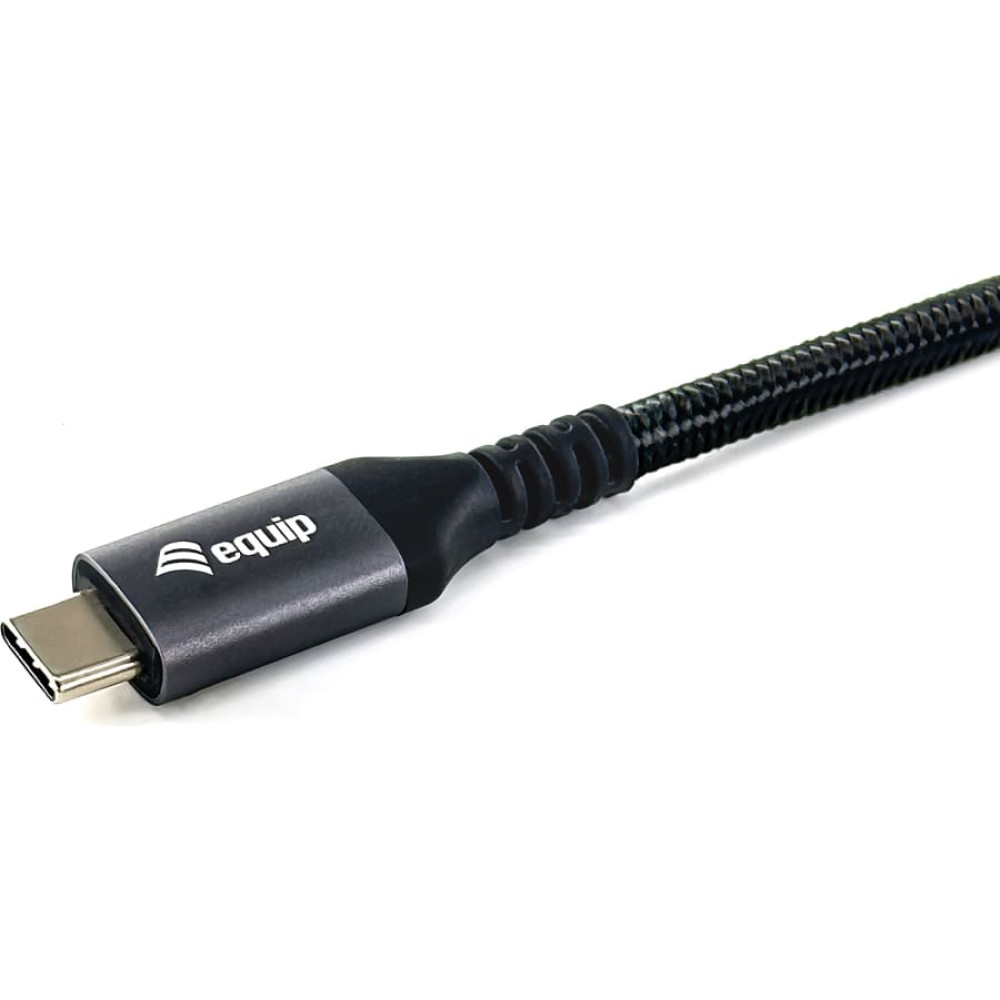

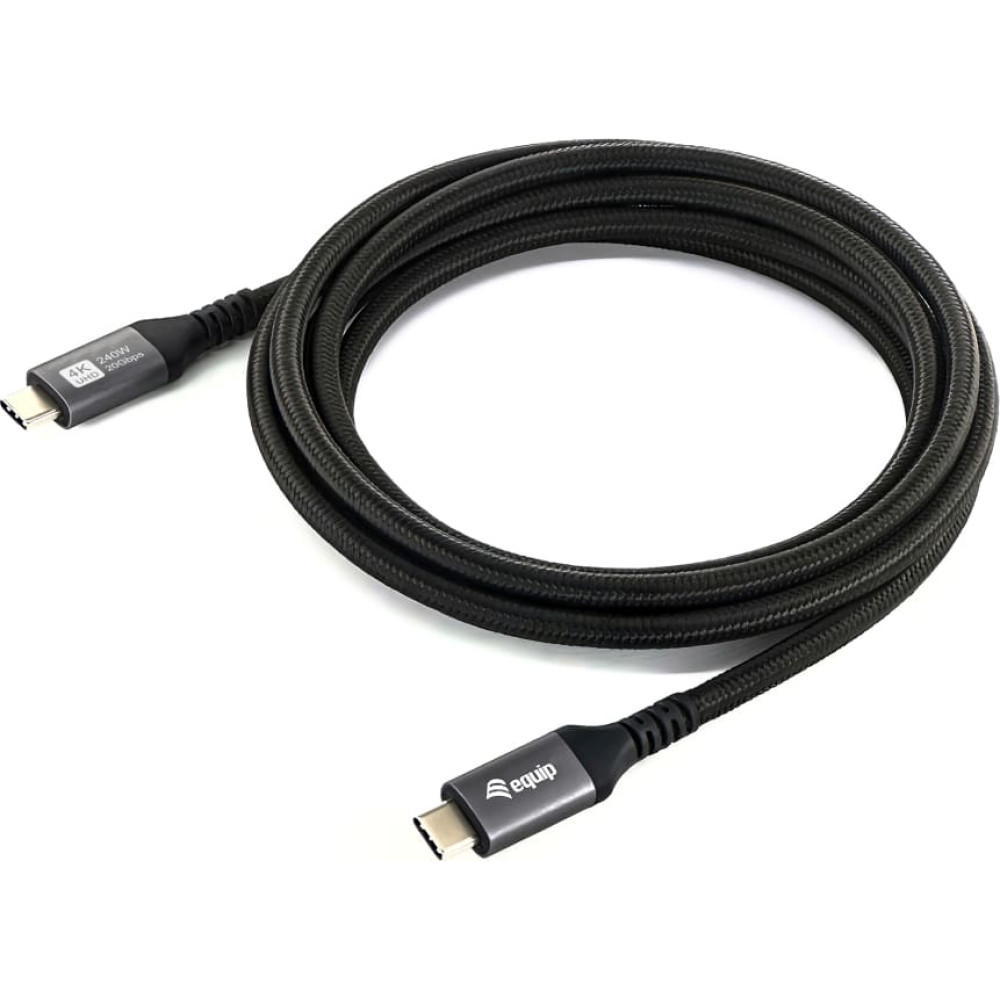

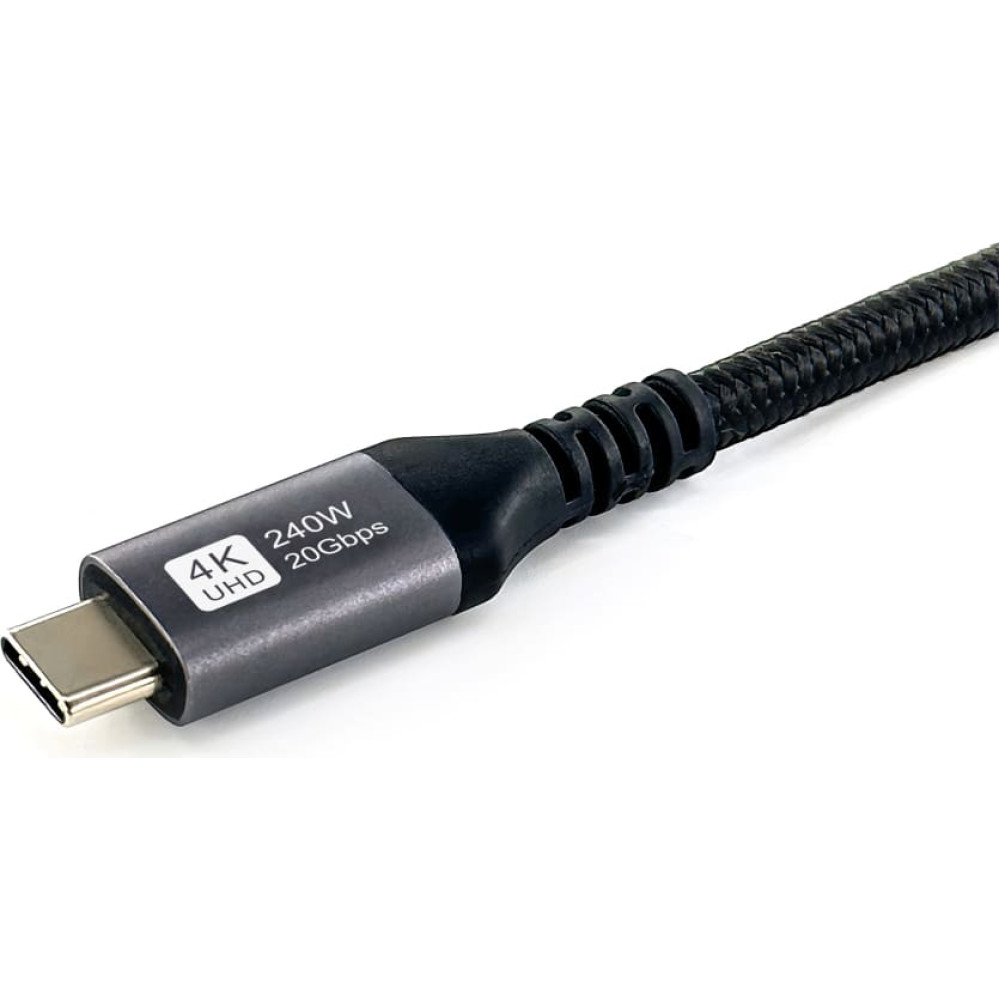

Equip 128384 USB kabelis USB4 Gen 2x2 3 m USB C Melns

Product Code: 128384
Barcode 4015867243688

To purchase this product you must be registered in our system.



Specification
cable jacket material: Cotton
cable length: 3 m
cable type: Round cable
compliance certificates: CE, RoHS, REACH
conductor material: Copper
connector 1: USB C
connector 1 form factor: Straight
connector 1 gender: Male
connector 2: USB C
connector 2 form factor: Straight
connector 2 gender: Male
country of origin: China
customs product code (taric): 8544421000
depth: 48 mm
displayport version: 1.4a
fast charging: Yes
hdcp: Yes
hdcp version: 1.4/2.3
height: 3000 mm
high dynamic range (hdr) supported: Yes
high dynamic range (hdr) technology: High Dynamic Range 10 (HDR10)
input current (max): 5 A
input voltage: 48 V
master (outer) case gross weight: 11.7 kg
master (outer) case height: 390 mm
master (outer) case length: 280 mm
master (outer) case width: 330 mm
maximum data transfer rate: 20 Gbit/s
maximum resolution: 3840 x 2160 pixels
package depth: 10 mm
package height: 175 mm
package type: Polybag
package weight: 140 g
package width: 275 mm
plug and play: Yes
product colour: Black
products per master (outer) case: 80 pc(s)
quantity per pack: 1 pc(s)
usb power delivery (usb pd): Yes
usb power delivery up to: 240 W
usb type-c displayport alternate mode: Yes
usb version: USB4 Gen 2x2
weight: 140 g
width: 48 mm

Description

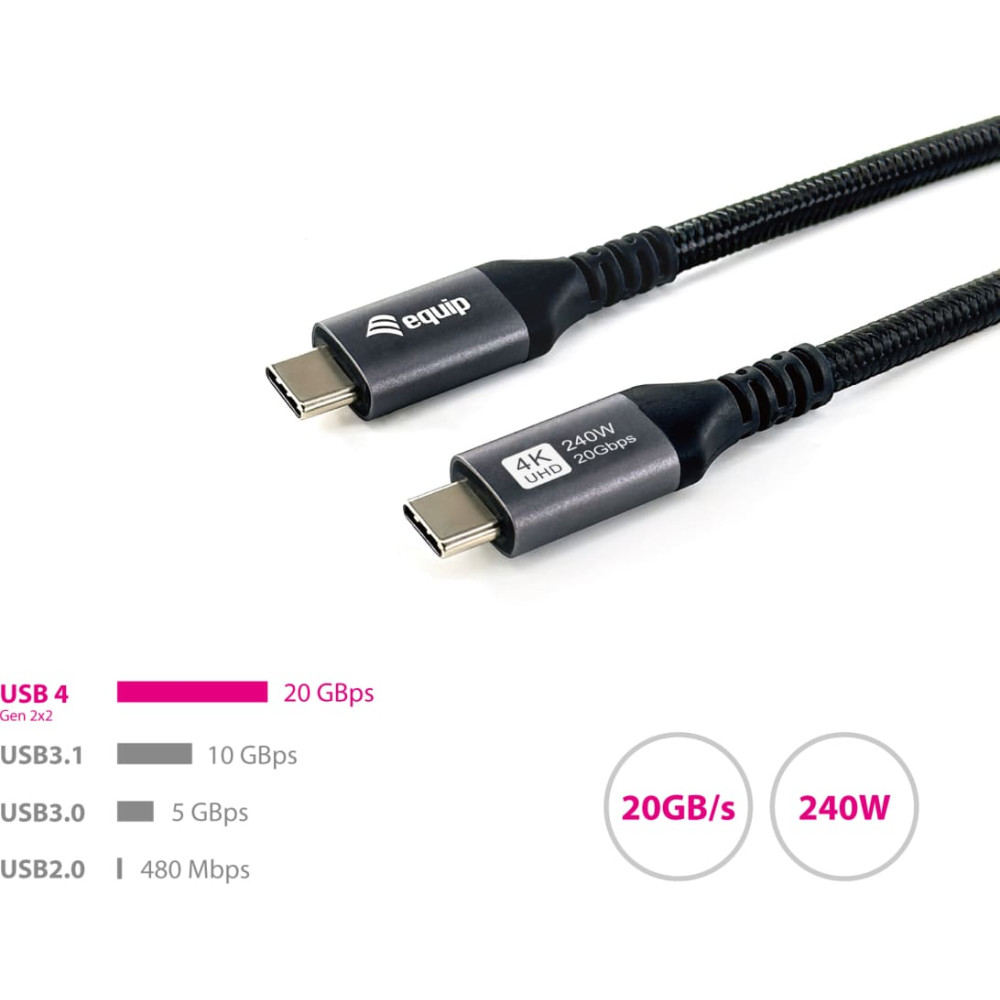

The 128384 USB4 Gen 2x2 C to C cable is designed for high-speed data transfer, ultra-high power delivery, and advanced display support for modern USB-C devices.

Built on USB4 Gen 2x2 architecture, it supports data transfer speeds of up to 20Gbps, making it ideal for fast file transfers, external SSDs, and high-bandwidth peripherals. With an integrated E-marker chipset and USB Power Delivery 3.1 support, the cable delivers up to 240W (48V/5A), enabling safe and stable charging for power-hungry laptops, workstations, and docking setups.

The cable also supports video output up to 4K@60Hz via DP Alt Mode and is compatible with DisplayPort 1.4a, HDR10, HDCP standards, and PCI Express 3.0 protocol. Fully compatible with USB 3.2, USB 2.0, and Thunderbolt 3 devices, it offers broad device interoperability while ensuring reliable performance for professional and everyday use.
